We’re excited to announce that our Profi Press 100 Ton C-Frame Press (Model: PPCT-100) is now in stock and ready to transform your metalworking capabilities!

Key Features:

  • Force: 100 tons max / programmable from 1 to 100 tons
  • Table Size: 800×500 mm
  • Stroke: 400 mm
  • Vertical Daylight: 500 mm
  • Motor Power: 11 kW
  • Oil Tank Capacity: 200 liters
  • Max Working Pressure: 250 bar
  • Approaching Speed: 105 mm/sec
  • Return Speed: 160 mm/sec
  • Working Speed: Programmable
  • T-Slots: DIN-650 standard

Innovative Control and Safety:

  • HMI Touch Screen: Beijer X2 pro 7 inch HMI for easy control over ram start position, stroke end position, transition to work pressing mode position, pressing speed, work pressing speed, tonnage, tonnage dwell time, and pressing dwell time. Save various working cycles as a program with an alphanumeric name for efficient recall.
  • Integrated SICK brand Light Curtains: Ensure maximum safety during operation.
  • Dual Control Operation: Hand button operation for enhanced safety.
  • Dwell Time Tonnage: Maintained with an auto pressure top-up mechanism.
  • Working Speed Start Position: Programmable

Durable Construction:

  • High-Quality Framework: Made from S355JR quality steel with an electro-welded monoblock frame for superior strength and durability.
  • Chrome Plated Cylinder: For long-lasting performance.
  • T-Slotted Tables: DIN-650 standard for versatile applications.
  • High-Speed Primary Cylinder: With 4 guide cylinders of which two are auxiliary cylinders for enhanced cycle speed.

Optional Accessories:

  • Custom geometry (larger tables, vertical daylight, or piston stroke)
  • HMI with Input and Output ports
  • Hydraulic ejector for bottom and side
  • Hydraulic cushion
  • Variable advance and return speeds
  • Single Phase power
  • 50 Hz and 60 Hz power options

Efficiency Demonstration

The Profi Press PPCT-100 is not only powerful but also incredibly efficient. Let’s break down an example scenario to demonstrate its efficiency:

Example Parameters:

  • Die Set Height: 350 mm (start position of press cycle set to 350 mm on HMI)
  • Material: 3 mm thick stainless steel blanks, with a bounding box of 250 x 85 mm
  • Required Stroke: 3.25 mm
  • Clearance for Loading/Unloading: 35 mm
  • Total Stroke Required: 3.25 mm + 35 mm = 38.25 mm (added to the start position to attain the end position of the stroke)
  • Press Speed: 105 mm/sec
  • Return Speed: 160 mm/sec
  • Loading/Unloading Time: 5 seconds each (total 10 seconds)
  • Note: Dwell time at the bottom of the stroke is programmable but not used in this calculation.

All parameters would be entered into a Program, Stored in the Program (Recipe) Storage mode, and recalled into Automatic Mode and run from that mode with auto cycles using the Dual Palm Button Controls.

Cycle Time Calculation:

  1. Pressing Stroke Time:
    • Downward Stroke (38.25 mm): 38.25 mm105 mm/sec≈0.36 sec
    • Return Stroke (38.25 mm): 38.25 mm160 mm/sec≈0.24 sec
    • Total Stroke Time: 0.36 sec (downward)+0.24 sec (return)=0.60 sec
  2. Manual Loading/Unloading Time:
    • Total Time: 10 seconds
  3. Total Cycle Time:
    • 0.60 sec (pressing stroke)+10 sec (loading/unloading)≈10.60 sec

Hourly Production Rate:

  • Cycle Time: 10.60 seconds
  • Cycles per Minute: 60 sec10.60 sec≈5.66 cycles
  • Pieces per Hour: 5.66 cycles/min×60 min≈340 pieces

Daily Production Rate:

  • Production Hours: 7 hours
  • Pieces per Day: 340 pieces/hour×7 hours=2380 pieces

This scenario demonstrates manual loading and unloading, but the PPCT-100 can also be integrated with automatic feeders and processing systems to significantly enhance production rates and efficiency.

With the ability to program a pressing working zone, bottom of cycle dwell time, and adjustable pressing tonnage, the PPCT-100 offers flexibility and precision for various applications.

The PPCT series can be seen in action on our YouTube Playlist:

View all of our C Frame Presses in our C-Frame Press Product Category.

Ready to take your metalworking to the next level? Contact us today to learn how the PPCT-100 can benefit your workshop!

📞 Contact us now!

Phone: 0800 999 1090

info@workshoppress.co.uk



Delving Deeper into the World of Metalworking with Workshop Press

PPCT-100 C-Frame Press Front Right-Hand View with Main Controller, Palm Buttons, and Retracted Safety Curtains
PPCT-100 C-Frame press shown from the front right-hand view, including the main controller, palm buttons, and retracted safety curtains.
Overall Display of Control Unit for PPCT-100 in Manual Mode with Beijer X2 Pro Controller
Overall display of the control unit for the PPCT-100 C-Frame press in manual mode, featuring the Beijer X2 pro controller.
Overall Display of Control Unit for PPCT-100 in Automatic Mode with Beijer X2 Pro Controller
Overall display of the control unit for the PPCT-100 C-Frame press in automatic mode, featuring the Beijer X2 pro controller.
Beijer X2 Pro Controller in Recipe Mode on PPCT-100 C-Frame Press
Close-up of the Beijer X2 pro controller in recipe mode, used for program storage on the PPCT-100 C-Frame press.
Beijer X2 Pro Controller in Manual Operation Mode Close-Up
Close-up of the Beijer X2 pro controller in manual operation mode, showing parameters for upper limit, lower limit, actual position, speed limit, actual speed, tonnage limit, and actual tonnage.
Beijer X2 Pro Controller in Main Menu Section
Close-up of the Beijer X2 pro controller in the main menu section, displaying hydraulic motor, circulation motor, cooling motor, and press status.

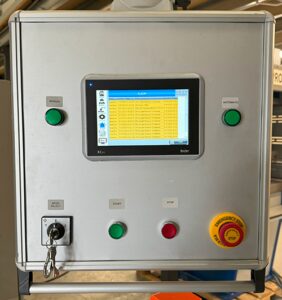

Control Panel of PPCT-100 C-Frame Press in Error Display Portion of Beijer Controller
Control panel of the PPCT-100 C-Frame press shown in the Error display portion of the Beijer controller, illustrating air pressure settings and monitoring.
Beijer Controller Displaying Parameters for Upper Limit, Slow Down Limit, Lower Limit, Actual Position, Fast Speed Limit, Slow Speed Limit
Beijer controller interface showing key parameters: upper limit, slow down limit, lower limit, actual position, fast speed limit, and slow speed limit.

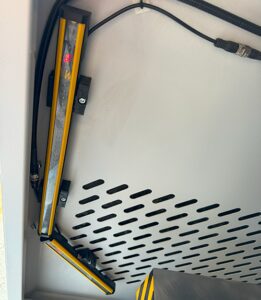

SICK Brand photocell light curtains installed on the PPCT-100 100 Ton C-Frame press, enhancing operator safety and ensuring compliance with safety standards.
SICK Brand photocell light curtains installed on the PPCT-100 100 Ton C-Frame press, enhancing operator safety and ensuring compliance with safety standards.
