10 Ton Hydraulic Presses

Workshop Press supplies 10 ton hydraulic presses and compact hydraulic press machines for professional metalworking applications.
Our current range starts with the 10-ton HPB-10 Horizontal Press Brake. We also offer 15 and 16-ton machines for workshop pressing, broaching and punching.
Compare the machines below or Contact us for help selecting the correct press for your application.

10 to 16 Ton Hydraulic Press Range

Showing all 8 results

HPB-10 Horizontal Press Brake – 10 Ton

The HPB-10 is a 10-ton horizontal hydraulic press brake for bending and forming applications.

Key specifications:

  • 10-ton capacity.
  • 150 x 8 mm capacity.
  • 185 mm stroke.
  • 150 mm tooling height.
  • NC controller.
  • Single-phase or three-phase options.

Best suited to: Bending and forming metal profiles and components.

RHTC Manual Workshop Press – 15 Ton

A compact 15-ton workshop hydraulic press for general pressing, maintenance and repair applications.

Key specifications:

  • 15-ton capacity.
  • Hand and foot pump.
  • 560 mm working width.
  • Adjustable table.

Best suited to: General workshop pressing and maintenance operations.

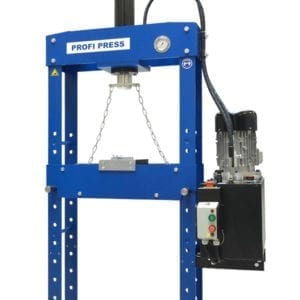

Motorised Broaching Press – 15 Ton

A dedicated 15-ton hydraulic press for broaching applications.

Key specifications:

  • 15-ton capacity.
  • Motorised operation.
  • 650 mm working width.
  • 600 mm stroke.
  • Fixed cylinder.
  • Broaching table included.
  • EU built.
  • CE certified.

Best suited to: Broaching operations requiring a long working stroke.

Profi Punch PP-16 – 16 Ton

The Profi Punch PP-16 is a C-frame hydraulic press and punching machine.

Key specifications:

  • 16-ton pressing force.
  • 255 mm vertical daylight.
  • 70 mm piston stroke.
  • 2.2 kW motor.
  • 9.8 mm/s working speed.

Best suited to: Professional punching applications.

Profi Punch PP-16 Automated – 16 Ton

The automated PP-16 adds production control and material handling capabilities.

Features include:

  • Integrable material feeding.
  • Pressure control.
  • Stroke and feed control through HMI.
  • Program storage.
  • EU built.
  • CE certified.

Best suited to: Repetitive and automated punching applications.

These specifications reflect the machines currently listed within this category.

Which Hydraulic Press Do I Need?

Select your hydraulic press around the application, required force and workpiece, rather than tonnage alone.
Application Machine to Consider
Bending and forming HPB-10 – 10 Ton
General workshop pressing RHTC Manual Press – 15 Ton
Broaching Motorised Broaching Press – 15 Ton
Punching Profi Punch PP-16 – 16 Ton
Automated punching Profi Punch PP-16 Automated
Before ordering, consider your material, component dimensions, required stroke, working area, tooling and production volume.

Workshop Press can review these requirements and recommend the appropriate machine.

Hydraulic Press Tooling and Accessories

We can supply tooling and accessories alongside your hydraulic press, including:

Key specifications:

  • V-blocks and press tables.
  • Hand and foot controls.
  • Notching tools.
  • Rounding tools.
  • Tube notching tooling.
  • Digital pressure gauges.

Application-specific tooling can also be discussed when specifying your press.

Delivery, Installation and Training

Workshop Press can support your machine from delivery through to operation.

Services available include:

  • Delivery and offloading.
  • Machine placement.
  • Levelling.
  • Mains connection.
  • Commissioning.
  • Operator training and certification.

ISPM 15 compliant export crating is also available for international sea and air shipments.

Why Choose Workshop Press for Your Hydraulic Press?

Workshop Press specialises in hydraulic presses and professional metalworking machinery for workshops, manufacturers, fabricators and engineering businesses.

We focus on supplying the right machine for the application, rather than simply selling on tonnage.

1. Expert Press Selection

Choosing the correct hydraulic press involves more than pressing force. Stroke, working width, daylight, tooling and production requirements all matter.

Tell us what you need to achieve, and our team can help identify the appropriate machine and specification.

2. Hydraulic Presses for Different Applications

Our wider hydraulic press range includes:

  • Workshop and H-frame presses.
  • C-frame hydraulic presses.
  • Broaching presses.
  • Horizontal press brakes.
  • Deep drawing presses.
  • Four-column presses.
  • Portal presses.
  • Production presses.
  • Special and custom presses.

Therefore, if a 10 to 16-ton machine does not suit your application, we can help you assess other configurations and capacities.

3. Tooling as Part of the Solution

The correct tooling is critical to press performance.

Workshop Press can supply standard and application-specific tooling alongside the machine. Options include V-blocks, tables, controls, notching tools and pressure gauges.

4. Support from Delivery to Operation

We can support the complete machinery installation process.

Services include delivery, offloading, positioning, levelling, mains connection, commissioning and operator training.

This gives customers one point of contact from machine selection through to installation and operation.

5. UK Support with International Supply

Workshop Press provides UK-based sales and support from Warwickshire.

We also support international machinery orders. ISPM 15 compliant export crating is available for suitable sea and air shipments.

Buy a 10 Ton Hydraulic Press from Workshop Press
Looking for a 10 ton hydraulic press for sale?

Tell us what you need to bend, form, press, broach or punch.
We can help identify the correct capacity, machine and tooling for your application.

Call 0800 999 1090 or Email info@workshoppress.co.uk for technical advice and a quotation.

FAQs

How much does a 10 ton hydraulic press cost?
Prices depend on the machine specification, controls and tooling. Contact Workshop Press with your requirements for current pricing and a quotation.
Which hydraulic press should I buy for a 10-ton application?
For bending and forming, consider the 10-ton HPB-10. General pressing, broaching or punching may require one of our 15 or 16-ton machines.
Can Workshop Press confirm what press tonnage I need?
Yes. Provide your application, material, component dimensions and required operation. We can help identify the appropriate press capacity and configuration.
Can I buy hydraulic press tooling with the machine?
Yes. We supply hydraulic press tooling and accessories, including V-blocks, tables, controls, notching tools and digital pressure gauges.
Do you deliver and install hydraulic presses?
Yes. Delivery, offloading, positioning, levelling, mains connection, commissioning and operator training services are available.

Speak Directly to a Specialist

If you are comparing hydraulic presses, send us your application requirements.

Providing the material, dimensions, required operation and production requirements will help us identify the most appropriate solution.
