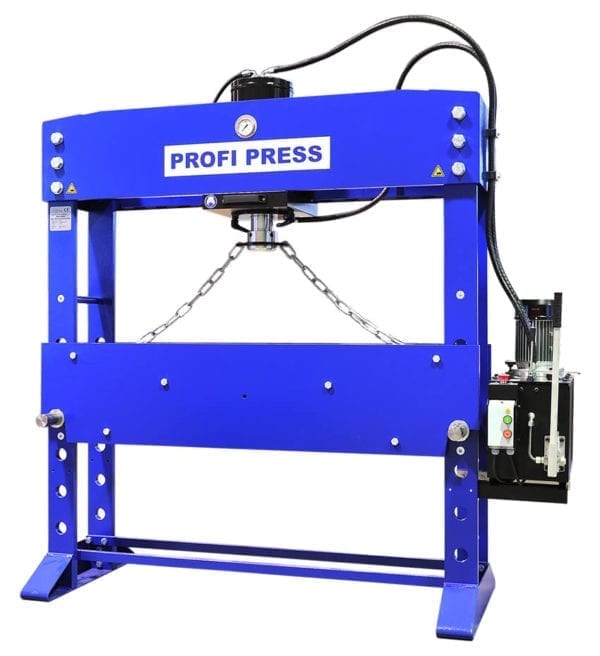

100 Ton Workshop Press • Motorised/Manual Modes • Moveable Cylinder • 2 Speeds • 1500 mm working width

Product Code: 10061-100 TON M/H-M/C-2 D=1500

The 100 ton (980 kN) motorised Workshop Press from RHTC Profi Press is the same machine as our 100-ton standard machine except that it has a working width of 1500 mm wide for those larger pressing operations.  The working table is adjustable to 6 positions in 150 mm increments with the easy-to-use cylinder chain hoist system.

The piston-cylinder is movable to the left and right, and the chrome piston has a diameter of 125 mm and a stroke of 380 mm.  All components are top quality, and the hydraulic system can be controlled either by a hand pump (manual) operation or by the top-side joystick.  This press offers 2 speeds.

Profi Motorised Workshop Presses are Manufactured in the EU and are CE Certified and are readily available from our stock. This machine has a 2-year warranty.

Please contact Workshoppress today with any questions on 0800 999 1090, by email at info@workshoppress.co.uk., or complete the quick PRODUCT ENQUIRY form and we will promptly provide you with a no obilgation quote.

    Specification Sheet Download Here
    PRODUCT VIDEO
    PRODUCT ENQUIRY
    • Description
    • Additional Info

    Technical specifications

    • Pressure force [kN]: 981
    • Maximum pressure [bar]: 258
    • Piston stroke [mm]: 380
    • Oil delivery [ltr/min]: 5.64/17.2
    • Oil capacity [dm³]: 46
    • Working speed [mm/sec]: 2.47
    • Approaching speed [mm/sec]: 7.54
    • Return speed [mm/sec]: 9.06
    • Motor power [kW]: 2.20
    • Voltage [V]: 400/3
    • Frequency [Hz]: 50/60
    • Revolutions per minute [rpm]: 3000
    • Insulation protection [IP]: 54
    • Working width [mm]: 1500
    • Weight [kg]: 1145

    Features

    • Movable cylinder (left-right)
    • Integrated pressure manometer
    • Pressure regulation
    • Hydraulic unit with two speeds
    • In height adjustable working table
    • Joystick for the control of the piston
    • Hand pump for precise press work
    • 2 year warranty

    Dimensions

    • A: 2080
    • B: 1750
    • C: 755
    • D: 1500
    • E: 300
    • F: 2065
    • G: 150
    • H: 130
    • I: 750
    • J: 865
    • K: 258

    Please refer to dimensional graphic above.

    Diameters

    • Inside diameter of cylinder [mm]: 220
    • Diameter of piston rod [mm]: 90
    • Diameter of piston head [mm]: 120

    Customisations & Modifcations

    • 1-Phase Motor
    • 60 Hz Motor
    • Bespoke dimensions
    • System Inetegrations
    • Bespoke Applications

    Optional Accessories & Tools

    • V-Block sets
    • foot pedals
    • hand controls
    • additional safety features
    • system integrations
    • mandrel sets
    • corner rounding notchers
    • corner wedge-shaped punches
    • corner notchers
    • hole punches of all shapes and sizes
    • tube and pipe notching
    • drain hole nibbler punch
    • brake press tooling
    • custom tools

    What is a Hydraulic Press

    A Hydraulic Workshop Press is a pressing machine that implements hydraulics to compress materials in a variety of applications. Like most shop equipment, hydraulic presses range in quality from basic models but WorkshopPress.co.uk only offers top quality RHTC hydraulic workshop presses. When purchasing an RHTC Hydraulic Press from us it will contribute to your company’s profitability. In addition, when a workshop, maintenance, manufacturing, or assembly area implements hydraulic workshop press machinery your capabilities are tremendously expanded and you then have the ability to perform a wide variety of different pressing processes and forming processes as well as folding, straightening, forming, riveting, and pressing work. RHTC presses offer usefulness, durability, reliability, functionality, and stability enabling the ability to get more use out of it and more things done efficiently saving you time and most importantly money.

    Hydraulic Press Typical Uses

    Some Typical Shop Press Uses include: metalwork bending and folding, holding welding projects steady, punching, straightening uneven metal parts, bearing pressing, flattening warped parts, separating rusted parts, compressing, crushing used oil filters to remove excess oil, automobile part construction, jewellery-making, ammunition, and bracket bending.
