High-Precision Pillar Drill for Automotive Work

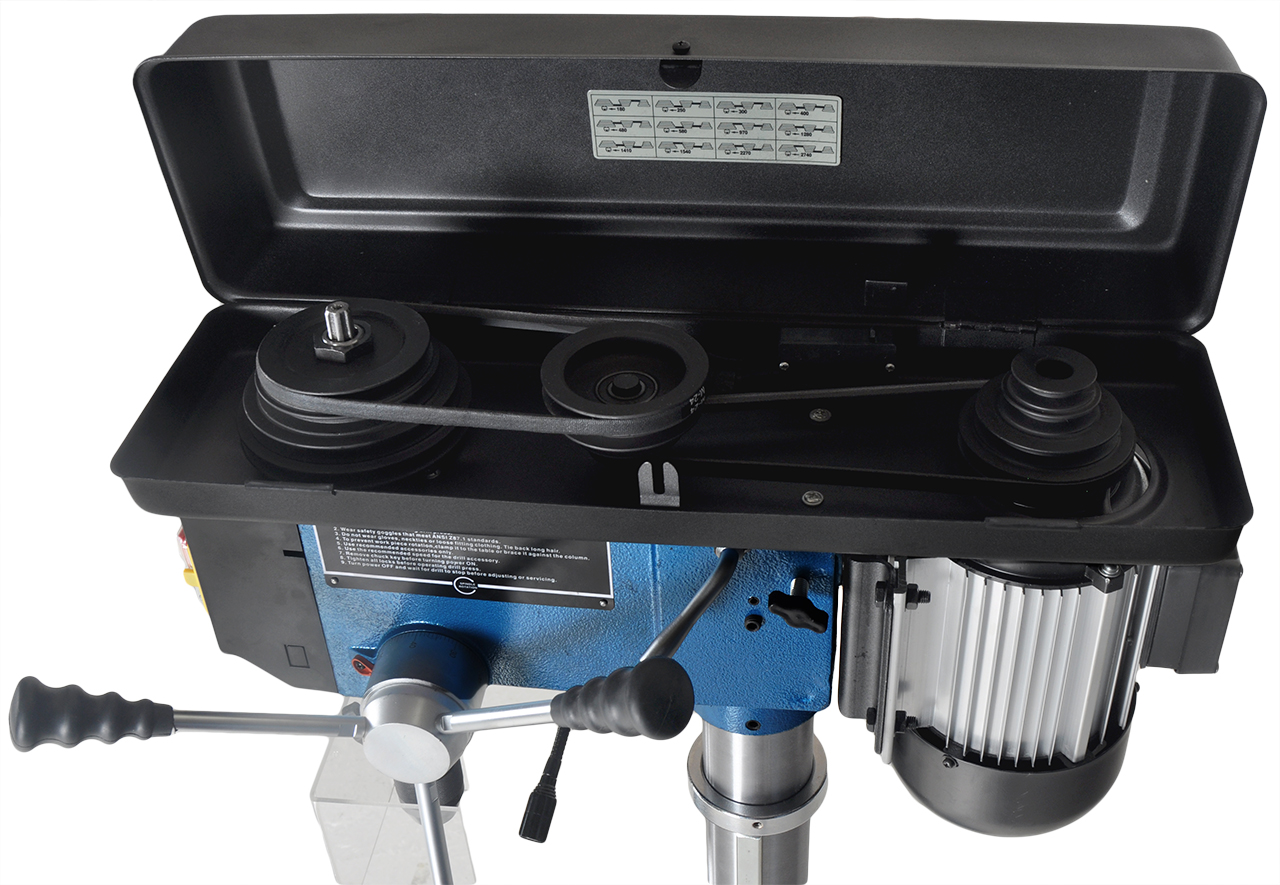

SCANTOOL 16AT Drill Press - Top Lid Open Exposing V Belts and Pulleys for speed change and Maintenance

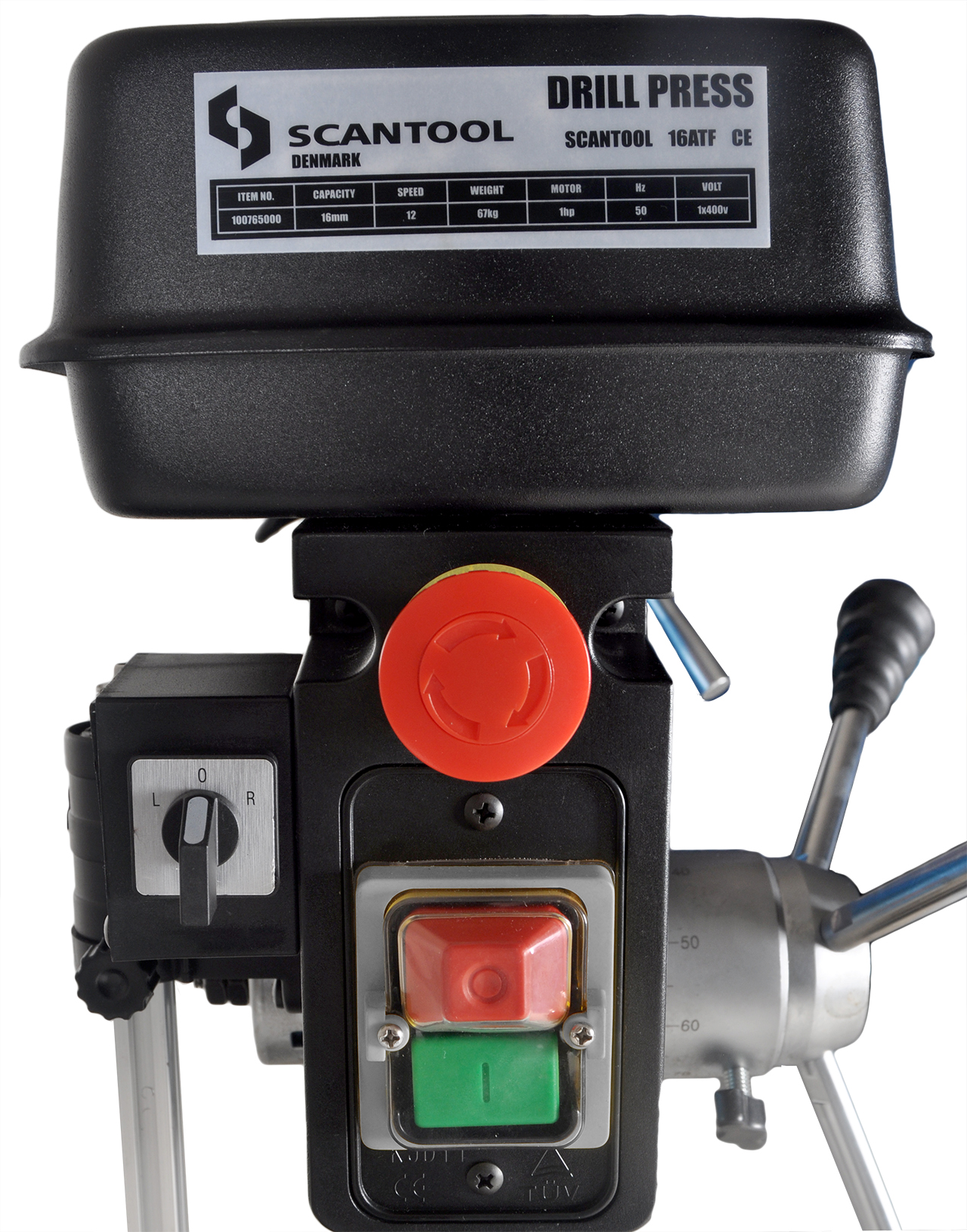

Headstock view of a V-Belt driven pillar drill from Scantool offered by The Workshop Press Co UK

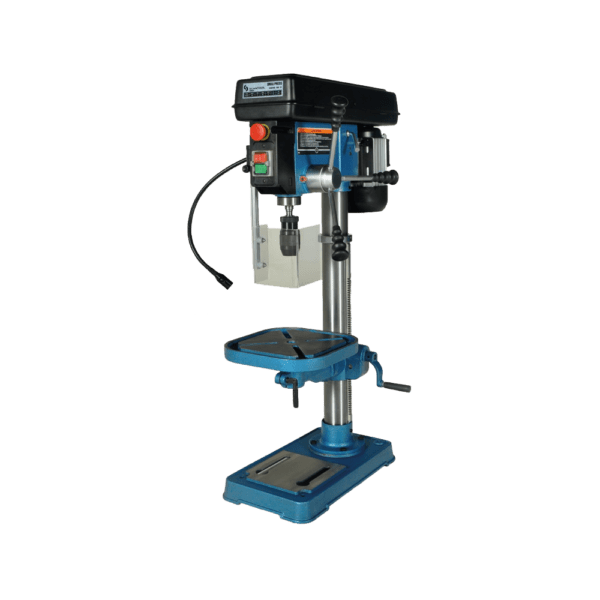

Scantool 16AE • Benchtop Pillar Drill • 20 mm Capacity • V-Belt Driven

SKU: 100762000 Categories: , , , Tags: , , , , , , , , ,

Please contact for prices

antool 16AE is a professional benchtop pillar drill designed for workshop and industrial drilling applications. It offers a 20 mm drilling capacity, MT2 spindle taper, 12 spindle speeds and a 0.75 kW motor, making it suitable for general engineering, maintenance and fabrication work.

The machine is supplied with an auto-lock chuck, emergency stop, working light and a tilting table with degree scale. Safety features include a chuck guard with microswitch and a belt cover safety switch for protection during speed changes.

Request Quote

    Download Specification Sheet

    Professional benchtop V-belt driven pillar drill with 20 mm drilling capacity, MT2 spindle taper, 0.75 kW motor, 12 speeds and integrated safety features.

    Scantool 16AE Pillar Drill – Frequently Asked Questions

    What separates the Scantool 16AE from other pillar drills? +
    The Scantool 16AE is a compact professional benchtop pillar drill combining a 20 mm drilling capacity with a 0.75 kW single-phase motor, MT2 spindle and 12-speed V-belt drive. Its compact bench-mounted design makes it particularly suitable where workshop space is limited while retaining professional drilling capability.
    What is the drilling capacity of the Scantool 16AE? +
    The Scantool 16AE has a maximum drilling capacity of 20 mm. It uses an MT2 spindle taper, has a 16 mm drill chuck and provides 80 mm of spindle travel.
    What spindle speeds does the Scantool 16AE have? +
    The 16AE has 12 spindle speeds ranging from 180 to 2,740 rpm. Speed selection is through its V-belt drive system, providing a useful range for different drill diameters and materials.
    What are the working dimensions of the Scantool 16AE? +
    The 16AE has a 190 mm throat depth, 410 mm swing capacity and a 285 × 285 mm working table. The table tilts ±45°, the spindle stroke is 80 mm and the maximum spindle-to-table distance is 465 / 685 mm.
    What safety features are included with the Scantool 16AE? +
    The 16AE includes a separate emergency stop, integrated working light, chuck safety guard with microswitch and a belt-cover safety switch. An auto-lock chuck is also supplied as standard.
    Do you have more questions about pillar drills? +
    Yes. Visit our complete Pillar Drill FAQs for detailed information covering drill selection, drilling and tapping capacities, automatic feed, spindle speeds, drive systems, Morse tapers, machine options, applications and more.

    Specifications

    • Article Number: 100762000
    • Drilling Capacity: 20 mm
    • Power Supply: 220V, 50Hz, 1-Phase
    • Motor: 0.75 kW
    • Spindle Taper: MT2
    • Drive: Belt Driven
    • Speeds: 12
    • Speed Range: 180-2740 rpm
    • Chuck: 16 mm
    • Stroke: 80 mm
    • Throat Depth: 190 mm
    • Swing Capacity: 410 mm
    • Spindle to Table Max: 465 / 685 mm
    • Table Size: 285 × 285 mm
    • Base Size: 480 × 270 mm
    • Table Tilt: ±45°
    • Maximum Table Load: 12 kg
    • Floor / Bench: Bench
    • Height: 1065 mm
    • Weight: 61 kg

    Features

    • Auto-lock chuck supplied as standard.
    • Separate emergency stop.
    • Integrated working light.
    • Safety guard with micro-switch.
    • Belt cover safety switch for speed changes.
    • Tilting table with degree scale.
    • Simple construction for easy operation.
    • Designed for workshop and industrial use.

    Optional Equipment

    • Drill Chuck Upgrades
    • Keyless Drill Chucks
    • Morse Taper Arbors
    • Reduction Sleeves
    • Machine Vices
    • Cross-Slide Vices
    • Twist Drill Sets
    • Tapping Accessories

    Scantool 16AE Pillar Drill – Frequently Asked Questions

    What separates the Scantool 16AE from other pillar drills?

    The Scantool 16AE is a compact professional benchtop pillar drill combining a 20 mm drilling capacity with a 0.75 kW single-phase motor, MT2 spindle and 12-speed V-belt drive. Its compact bench-mounted design makes it particularly suitable where workshop space is limited while retaining industrial drilling capabilit.

    What is the drilling capacity of the Scantool 16AE?

    The Scantool 16AE has a maximum drilling capacity of 20 mm. It uses an MT2 spindle taper, has a 16 mm drill chuck and provides 80 mm of spindle travel.

    What spindle speeds does the Scantool 16AE have?

    The 16AE has 12 spindle speeds ranging from 180 to 2,740 rpm. Speed selection is through its V-belt drive system, providing a useful range for different drill diameters and materials

    What are the working dimensions of the Scantool 16AE?

    The 16AE has a 190 mm throat depth, 410 mm swing capacity and a 285 × 285 mm working table. The table tilts ±45°, and the machine provides a maximum spindle-to-table distance of 465/685 mm as specified by Scantool.

    What safety features are included with the Scantool 16AE?

    The 16AE includes a separate emergency stop, integrated working light, chuck safety guard with microswitch and a belt-cover safety switch. An auto-lock chuck is also supplied as standard.

    Do you have more questions about pillar drills?

    Yes. Visit our complete Pillar Drill FAQs for detailed information covering drill selection, drilling and tapping capacities, automatic feed, spindle speeds, drive systems, Morse tapers, machine options, applications and more.

    The Scantool 16AE is a professional benchtop pillar drill designed for workshop and industrial drilling applications. It offers a 20 mm drilling capacity, MT2 spindle taper, 12 spindle speeds and a 0.75 kW motor, making it suitable for general engineering, maintenance and fabrication work.

    The machine is supplied with an auto-lock chuck, emergency stop, working light and a tilting table with degree scale. Safety features include a chuck guard with microswitch and a belt cover safety switch for protection during speed changes.
