Scantool Pillar Drill 16AEF from WorkshopPress.co.uk

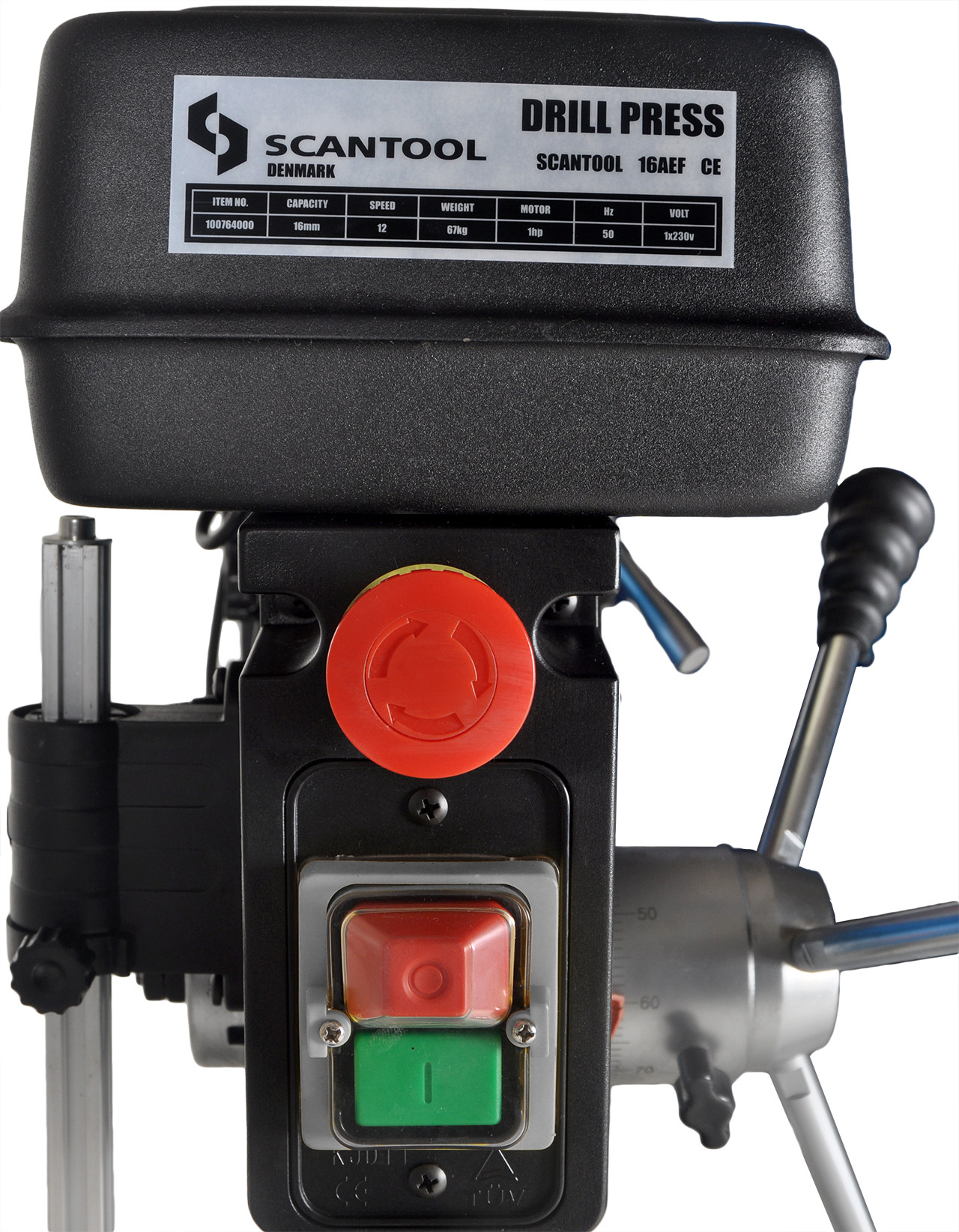

Front View of SCANTOOL 16AEF V-Belt Driven Drill Press Headstock with E-Stop and On/Off Buttons
SCANTOOL 16AEF V-Belt Driven Drill Press with Access Lid Up, Exposing V Belt, Pulleys, and Motor

Scantool 16AEF • Floor Standing Pillar Drill • 20 mm Capacity • V-Belt Driven

SKU: 100764000 Categories: , , , Tags: , , , , , , , , ,

Please contact for prices

The Scantool 16AEF is a professional floor standing pillar drill designed for workshop, maintenance and industrial drilling applications. Offering 20 mm drilling capacity, a 0.75 kW motor and 12 spindle speeds, the machine provides the flexibility required for a wide range of drilling operations.

The floor-standing design provides increased spindle-to-table distance and greater working capacity than benchtop models, making it suitable for larger components and fabrication work. The machine is supplied with an auto-lock chuck, work light, emergency stop and comprehensive safety systems for reliable day-to-day operation.

Request Quote

    Download Specification Sheet

    Professional floor standing V-belt driven pillar drill with 20 mm drilling capacity, 0.75 kW motor, 12 spindle speeds and large work envelope.

    Specifications

    • Drilling Capacity: 20 mm
    • Power Supply: 220V, 50Hz, 1-Phase
    • Motor: 0.75 kW (1 HP)
    • Drive: Belt Driven
    • Speeds: 12
    • Speed Range: 280-2380 rpm
    • Chuck: 16 mm
    • Stroke: 80 mm
    • Throat Depth: 190 mm
    • Swing Capacity: 410 mm
    • Spindle to Table Max: 720 / 1210 mm
    • Table Size: 285 × 285 mm
    • Base Size: 480 × 270 mm
    • Table Tilt: ±45°
    • Floor / Bench: Floor Standing
    • Height: 1600 mm
    • Weight: 67 kg

    Features

    • Auto-lock chuck supplied as standard.
    • Separate emergency stop.
    • Integrated working light.
    • Safety guard fitted with microswitch.
    • Belt cover safety switch.
    • Tilting table with degree scale.
    • Large floor standing work envelope.
    • Designed for workshop and industrial applications.

    Optional Equipment

    • Drill Chuck Upgrades
    • Keyless Drill Chucks
    • Morse Taper Arbors
    • Reduction Sleeves
    • Machine Vices
    • Cross-Slide Vices
    • Twist Drill Sets
    • Tapping Accessories

    Pillar Drill Frequently Asked Questions

    Find answers to common questions about drilling capacity, tapping, spindle tapers, drive systems, machine selection, installation and servicing.

    View Pillar Drill FAQs

    The Scantool 16AEF is a professional floor standing pillar drill designed for workshop, maintenance and industrial drilling applications. Offering 20 mm drilling capacity, a 0.75 kW motor and 12 spindle speeds, the machine provides the flexibility required for a wide range of drilling operations.

    The floor-standing design provides increased spindle-to-table distance and greater working capacity than benchtop models, making it suitable for larger components and fabrication work. The machine is supplied with an auto-lock chuck, work light, emergency stop and comprehensive safety systems for reliable day-to-day operation.
