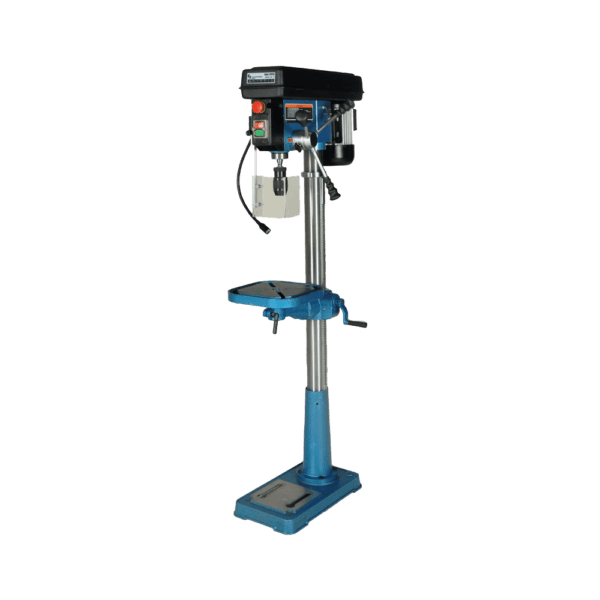

Scantool Pillar Drill 16AEF from WorkshopPress.co.uk

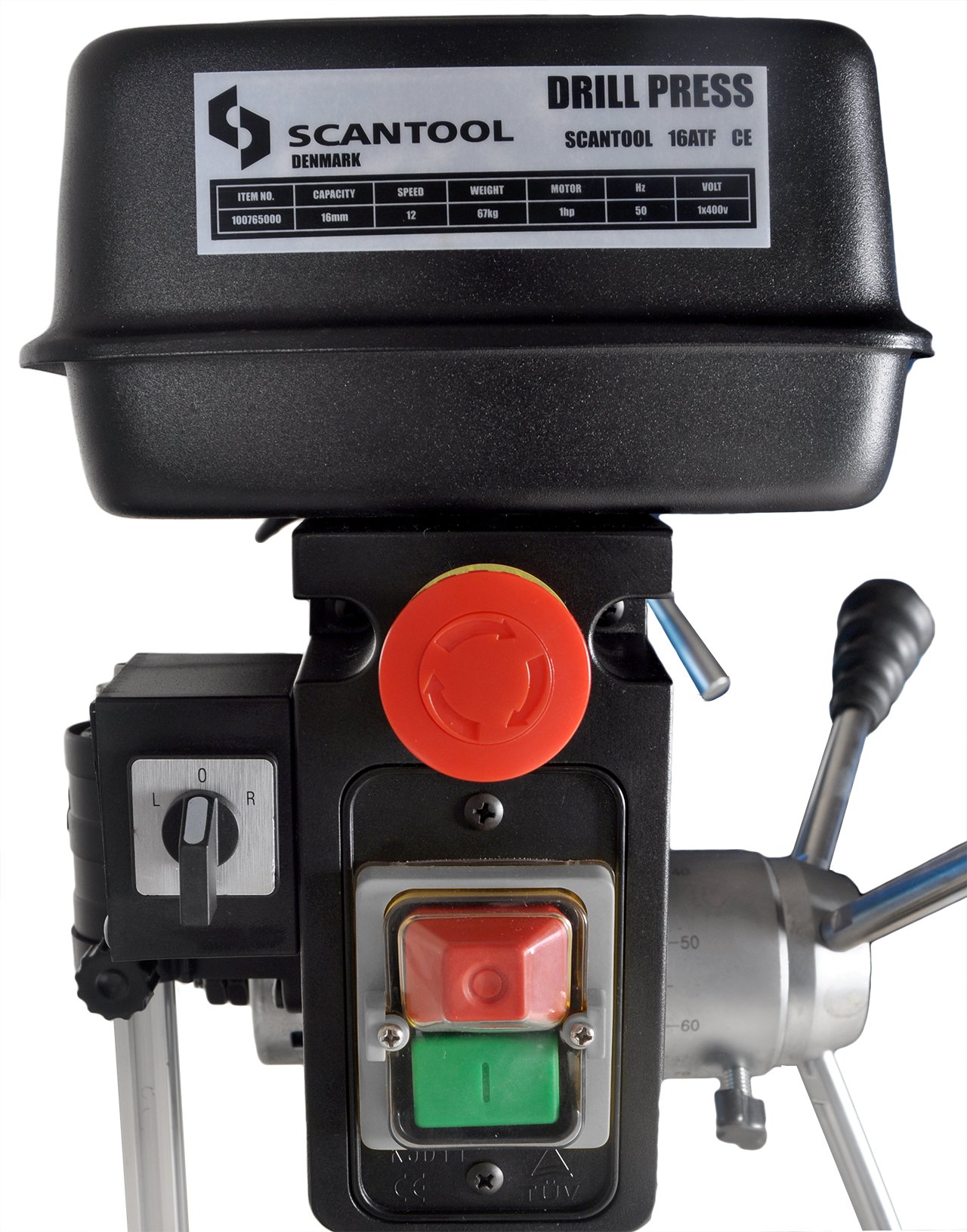

Headstock view of a V-Belt driven pillar drill from Scantool offered by The Workshop Press Co UK

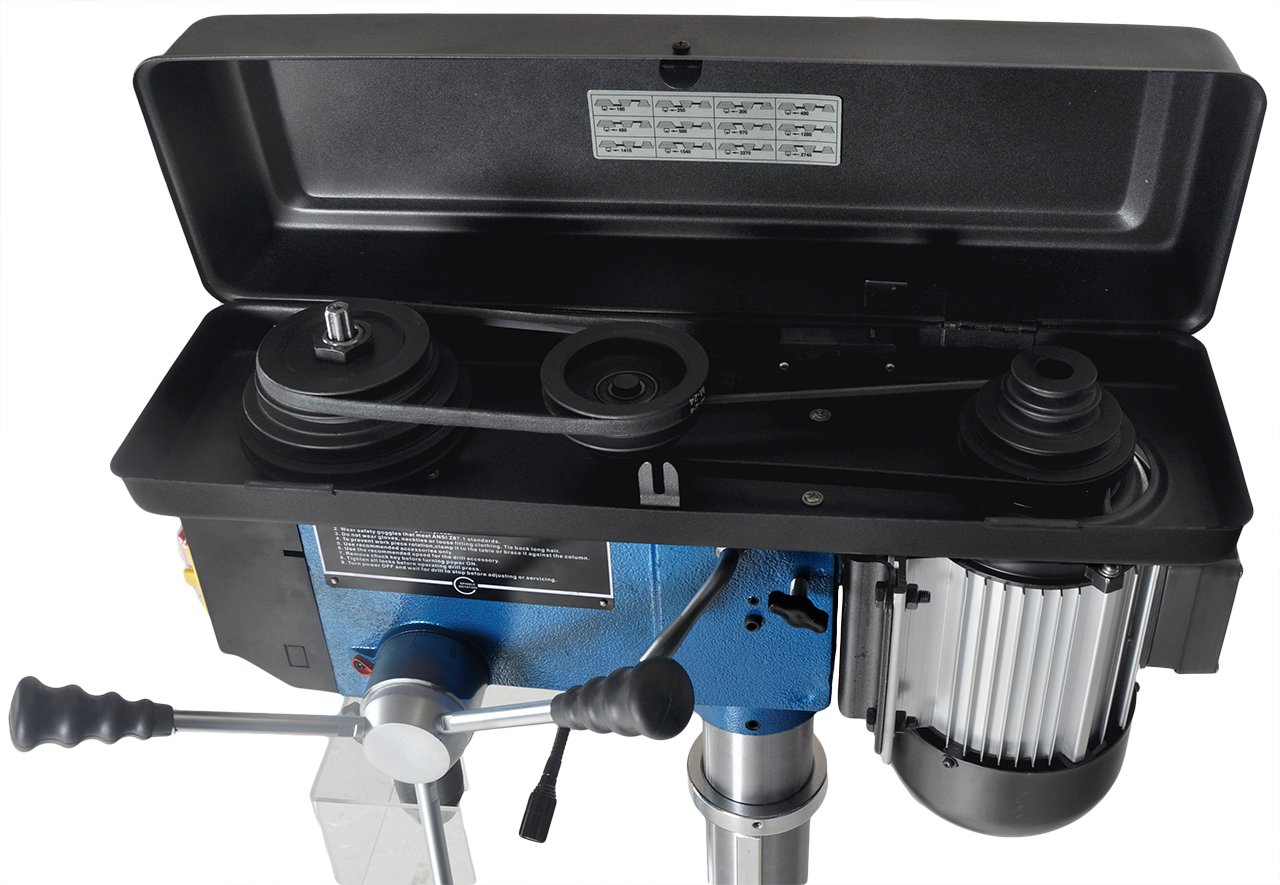

SCANTOOL 16ATF Drill Press with Top Lid Open Exposing V Belts and Pulleys

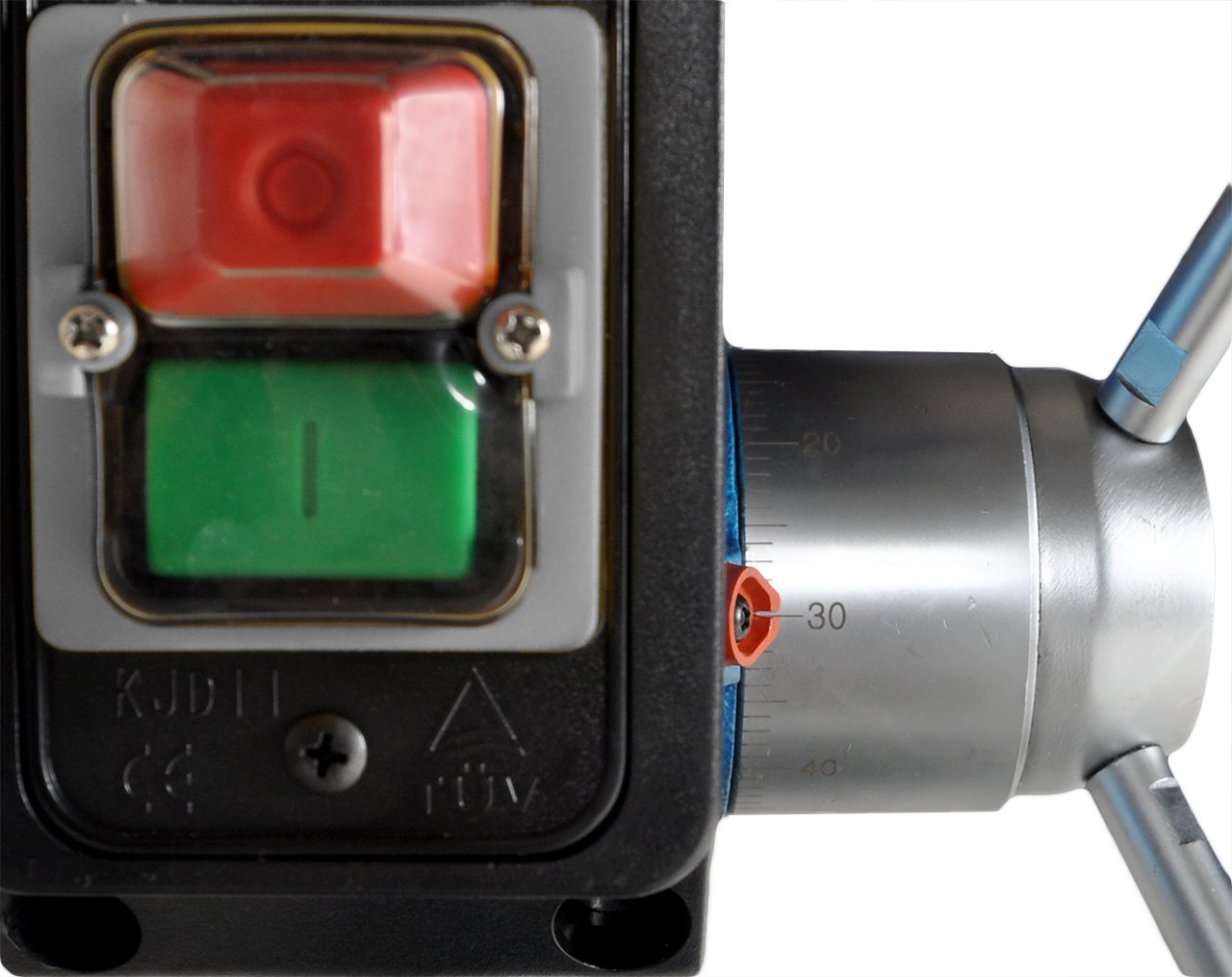

SCANTOOL 16ATF Drill Press On/Off Buttons and Depth Gauge on Tiller Wheel

Scantool 16ATF • Floor Standing Pillar Drill • 20 mm Capacity • V-Belt Driven

SKU: 100765000 Categories: , , , , Tags: , , , , , , , , ,

Please contact for prices

The Scantool 16ATF is a professional floor standing pillar drill designed for workshop and industrial drilling applications. With a 20 mm drilling capacity, 0.75 kW motor and 12 spindle speeds, it provides the flexibility required for maintenance, fabrication and general engineering work.

The 16ATF is the 400V, 3-phase version and includes reversible spindle rotation as standard. Its floor standing configuration offers increased spindle-to-table clearance and improved capacity when working with larger components and fabricated assemblies.

Request Quote

    Professional floor standing V-belt driven pillar drill with 20 mm drilling capacity, 400V power supply, reversible spindle rotation and 12 spindle speeds.

    Specifications

    • Drilling Capacity: 20 mm
    • Power Supply: 400V, 50Hz, 3-Phase
    • Motor: 0.75 kW
    • Drive: Belt Driven
    • Speeds: 12
    • Speed Range: 280-2380 rpm
    • Chuck: 16 mm
    • Stroke: 80 mm
    • Throat Depth: 190 mm
    • Swing Capacity: 410 mm
    • Spindle to Table Max: 720 / 1210 mm
    • Table Size: 285 × 285 mm
    • Base Size: 480 × 270 mm
    • Table Tilt: ±45°
    • Reversible: Yes
    • Floor / Bench: Floor Standing
    • Height: 1600 mm
    • Weight: 67 kg

    Features

    • Reversible spindle rotation.
    • Auto-lock chuck supplied as standard.
    • Separate emergency stop.
    • Integrated working light.
    • Safety guard fitted with microswitch.
    • Belt cover safety switch.
    • Tilting table with degree scale.
    • Large floor standing work envelope.

    Optional Equipment

    • Drill Chuck Upgrades
    • Keyless Drill Chucks
    • Morse Taper Arbors
    • Reduction Sleeves
    • Machine Vices
    • Cross-Slide Vices
    • Twist Drill Sets
    • Tapping Accessories
