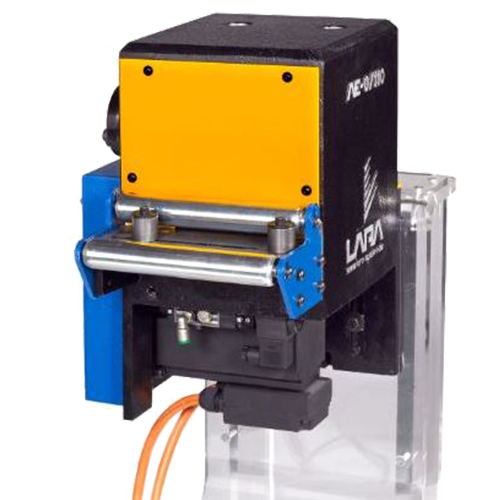

A front view of a compact metal coil feeder from LARA. The feeder is made of steel and has a hydraulic system that can feed coils of various sizes and materials.

AE-0-110 K Coil Feeding Line from LARA

Product Code: AE-0-110

The Lara AE-0/110 K coil feeding lines are high-performance machines that are ideal for a variety of industrial pressing applications. They are equipped with a powerful hydraulic system that can generate up to 110 kN of force, depending on the model. The feeding head is precision-made to ensure accurate feeding of the coil, and the control unit is user-friendly and easy to operate.

The AE-0/110 K coil feeding lines are also very versatile. They can be used to feed a variety of materials, including steel, aluminum, and copper. They are also capable of feeding coils of different sizes and thicknesses.

Please contact for prices

    Download Specification Sheet
    • Description
    • Additional Info

    Technical specifications

    • Max Width (mm): 110
    • Max Thickness (mm): 2
    • Max Feeding Section: 220 mm²
    • Max Wdth & Thickness: 110 x 2
    • Feeding Rollers Diameter (mm): 48
    • Advance Accuracy (mm): ± 0.05
    • Feed Speed in Continuous (m/min): 180
    • Height Adjustment (mm): ± 30

    Electronic Control

    • Main Switch
    • Programmable Feed Length Up to 9999 mm
    • Programmable Speed in Percentages
    • Operational Parameters
    • Diagnosis and Display for Error <essages
    • Emergency Stop
    • Manual and Automatic Continuous Modes

    Machine Frame & Fixing Plate

      The frame is constructed from aluminum and is mounted on a manually height-adjustable plate. This allows for working with dies of different heights, which is important for ensuring safety and accuracy.



    Machine Frame & Fixing Plate

    • Maintenance -free AC servomotor equipped with inner resolver for an accurate strip positioning.
    • Motor power output to the drive feeding roll by a pulley and toothed belt “no- shake” driving system.
    • Power transmission to the upper feeding roll via precision spur gears.
    • Drive set operations are controlled by an AC digital servo-controller (Motion- drive version) for feeding processes with repetition of the same feeding length.

    Electrical Installation

    The electrical installation of the coil feeding line comprises individual overload protection relays and all auxiliary electrical elements needed for the equipment to work under optimum conditions. The electronic control consists of a switch cabinet and a programming terminal with a color LCD touch screen, which allows for the programming of the feed length, speed, and other operational parameters. The control also includes a diagnosis function and an emergency stop button.

    Additional feautures include:

    • Individual overload protection relays
    • All auxiliary electrical elements needed for the equipment to work under optimum conditions

    Lara Spain, is a leading name in the metal forming industry. With over 25 years of experience, Lara specializes in the design, manufacture, and installation of top-tier machinery for metal forming processes. Their product range includes Metal Coil Decoilers, Coil Straighteners, Coil feeders, and other essential equipment for Metal Strip Processing.

    Lara serves a diverse range of industries using metal-forming applications, including automotive, aerospace, and construction. Lara’s strong presence in the European and Global Metal Stamping market is a testament to their quality and reliability.

    Why does The Workshop Press Company choose to sell LARA metal coil feeding systems? It is because Lara Spain has a proven record of combining expertise, quality, and service while delivering the best solutions for our customers’ metal forming requirements. Their team comprises of seasoned engineers that understand the unique challenges of the metal forming industry and they are dedicated to providing the most effective solutions.

    Lara’s products are crafted from the highest quality materials and components, and they undergo rigorous testing to ensure they meet or exceed our customers’ rigorous expectations. Lara’s commitment doesn’t end with the product delivery because they offer a comprehensive range of services, including engineering, project management, and after-sales support, to help you maximize the value of your metal processing equipment.

    The Workshop Press Company offers coil feeding systems from Lara Spain because they are reliable, high-quality metal forming machinery. Contact us today to learn more about our products and services.
