Bandsaw 320 GSHE • 255 mm Round Capacity • Single Mitre • 1-Phase
Product Code: 500712820Description

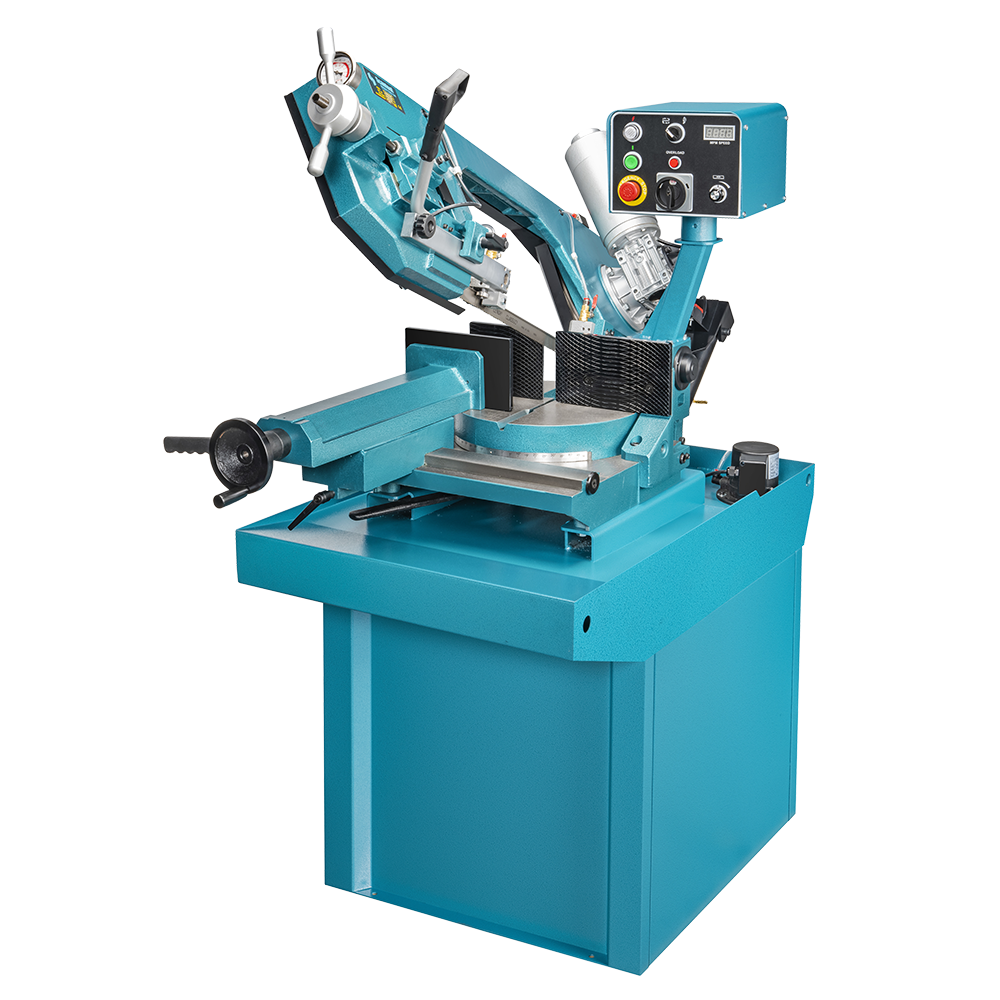

The Scantool 320 GSHE Metal Cutting Bandsaw is a 1-Phase metal saw is based on a rigid cast bow design. This saw has a top-quality 1.5 HP DC motor with an infinitely variable speed control with the blade speed displayed on the highly visible DRO. The single-phase DC Motors are designed for industrial use and applications. Band Saw Operators can precisely dial in the blade speed for each application.
There is a blade pressure gauge where the operator can correctly tension the blade, and additionally, there is an adjustable blade guard. The material vice has a handwheel for large and fast adjustments and supplemented with a quick locking mechanism which enables the operator to quick release the material, advance the material to the material stop, and then re-clamp the material initiating the next cut save time and money.
This saw has a saw blade capacity suitable for industry having dimensions of 2450 mm long by 27 mm high and 1 mm thick. These industry-standard saw blades are readily attainable at any MRO or welding supply outlet.
CE and Warranty
This saw is CE Certified and comes with a 2-year warranty. All sales and service are UK based from our locatin in Warwickshire.
Additional Info Tab Below
Please contact for prices
- Description
- Additional Info
The BS-320 GSHE semi-automatic metal cutting band saw is designed for high-precision and efficient cutting of steel and metal pipes. This robust machine features hydraulic feed and lift of the saw bow, ensuring smooth and controlled cutting operations. The rotatable saw bow allows for versatile cutting angles, and the built-in cooling system maintains a clean and safe working area. With variable speed control and a quick-release vice, the BS-320 GSHE offers ease of use and optimal performance. Manufactured according to CE regulations, this bandsaw guarantees safety and high standards of quality, making it the perfect choice for demanding industrial environments.
Technical Specifications
- Motor Power: 1.5 kW
- Saw Blade Dimensions: 2750 x 27 x 0.9 mm
- Saw Blade Speed: 25 to 90 m/min
- Sawing Capacity at 0°:
ø255 mm, 240 x 240 mm, 310 x 230 mm - Sawing Capacity at 45°:
ø200 mm, 190 x 190 mm, 120 x 180 mm - Sawing Capacity at 60°:
ø115 mm, 115 x 115 mm - Voltage: 230V, 50 Hz, 1-Phase
- Dimensions (L x W x H):
1400 x 700 x 1540 mm - Weight: 260 kg
Features and Uses
- Hydraulic feed and lift of the saw bow
- Rotatable saw bow for versatile cutting angles
- Built-in cooling system for clean and safe operation
- Variable speed control for different cutting requirements
- Quick release on vice for easy adjustments
- High accuracy with minimal vibration
- CE certified for safety and quality
Industries Using the Machine and Their Uses
- Metal Fabrication: Precision cutting of steel and metal pipes.
- Manufacturing: Suitable for high-volume production environments.
- Construction: Ideal for preparing metal components for building projects.
- Automotive: Used for cutting metal parts and components in vehicle manufacturing.
Semi-automatic metal cutting band saw with hydraulic feed and lift, rotatable saw bow, and built-in cooling system for precision and efficiency.
