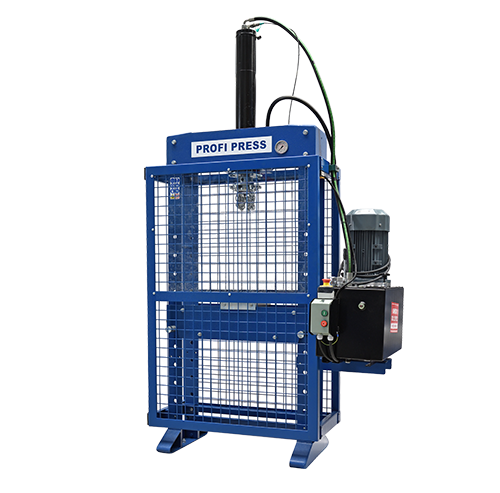

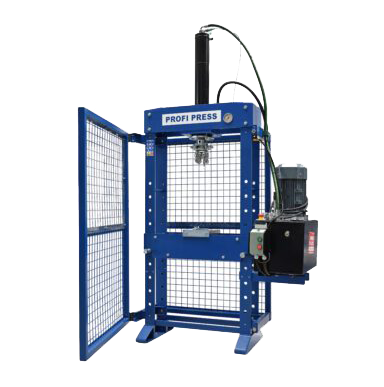

Broaching press 15 TON

Product Code: BPP2000-Broaching Press - 15 ton

This 15 ton press is very similar to our other workshop presses except it is fitted with an extra long cylinder which facilitates a linear broaching process.  The piston stroke is 600 mm and the hydraulic press includes a hand operated up/down valve for the movement of the piston, a pressure control valve and a speed control valve.

Like our workshop presses this broaching press is operated with a joystick and has 2 speeds controlled with an easy to use lever directly on the hydraulic control unit.   A pressure regulation gauge is clearly displayed on the front of the machine for easy control of the linear broaching operations.

Broaching is a metalworking process using a tool with progressive teeth and tool itself is called a broach.  With linear broaching the broach tool runs in a linear direction against the surface of a workpiece where a key slot is to be cut.

    Specification Sheet Download Here
    PRODUCT VIDEO

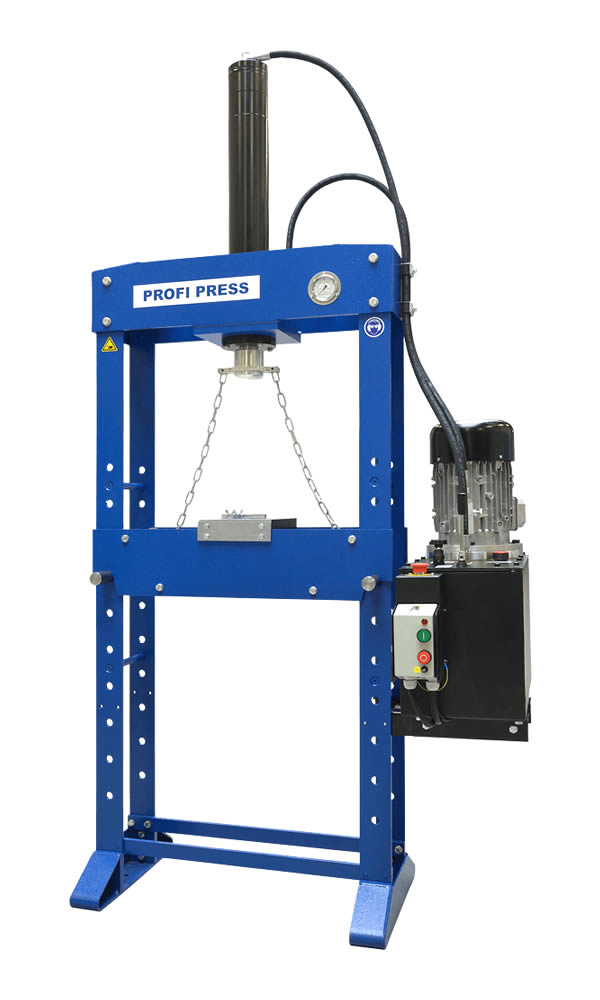

    Broaching press machine front view
    PRODUCT ENQUIRY
    • Description
    • Additional Info

    Technical specifications

    • Pressure force [kN]: 147
    • Pressure max. [bar]: 232
    • Piston stroke [mm]: 600
    • Oil capacity [dm³]: 35
    • Oil delivery [ltr/min]: 11.8
    • Working speed [mm/sec]: 0-30
    • Approaching speed [mm/sec]: 0-30
    • Return speed [mm/sec]: 0-40
    • Motor power [kW]: 5.5
    • Voltage [V]: 400/3
    • Frequency [Hz]: 50/60
    • Revolutions per minute [rpm]: 1500
    • Insulation protection [IP]: 54
    • Weight [kg]: 305

    Diameters

    • Inside diameter of cylinder [mm]: 90
    • Diameter of piston rod [mm]: 50
    • Diameter of piston head [mm]: 80

    Features

    • Integrated pressure manometer
    • Pressure regulation
    • In height adjustable working table
    • Joystick for the control of the piston
    • Speed control valve

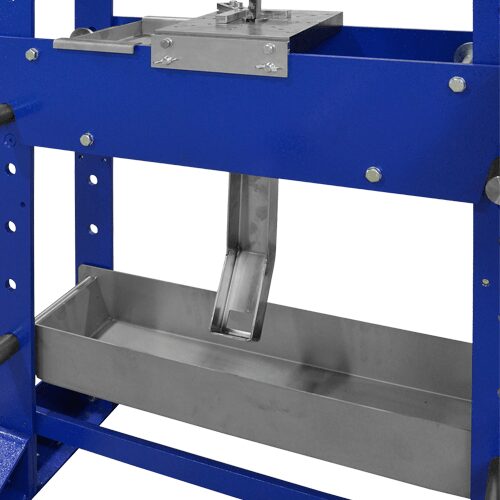

    Optional accessories

    • V-block set for extra support
    • Collection tray between the feet of the press
    • Collection tray for the broach-tool
    • Material tray for the working table

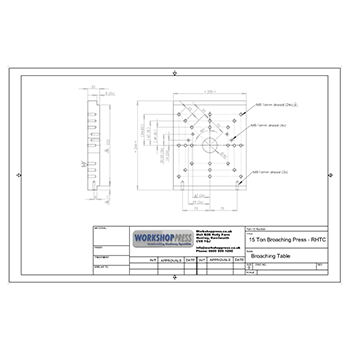

    Dimensions in mm

    • A: 2300
    • B: 820
    • C: 494
    • D: 650
    • E: 200
    • F: 1140
    • G: 100
    • H: 112
    • I: 900
    • J: 700
    • K: 110

    Other pressing operations can also be completed on the 15 Ton Broac Press from Workshoppress.co.uk.

    The heavy-duty working bed has 10 adjustable positions and the bed can be adjusted using the provided chain system which works in conjunction with the hydraulic ram allowing for quick and easy adjustment for all applications.

    Profi Motorised Broach Presses are manufactured in the Netherlands and are CE Certified and are readily available from our stock.

    This machine has a  2-year warranty.
