C-Frame Press • PPCU100 • 100 Ton • RHTC
Product Code: PPCU100Market Leading C-Frame Press – Customizable, Integrative, and with Custom Tools Available

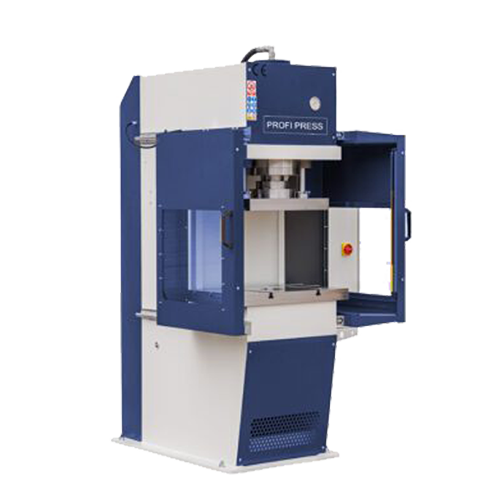

The PPCU100 C-frame press by RHTC Profi Press is a versatile 100-ton machine designed for high-performance tasks such as stamping, die-cutting, and forming. It boasts a throat depth of 320 mm and a working speed of 6.4 mm/s, preceded by an approach speed of 30 mm/s. After the cycle is completed, the top plate returns at a rapid rate of 53 mm/s. The maximum stroke of the top plate is 260 mm, with an overall vertical daylight of 450 mm, ensuring efficient material handling for various applications.
Upper and Lower Tables
The PPCU100 C-Frame press is equipped with both an upper table (slide) and a lower table (bolster), featuring dimensions of 700 x 400 mm and 780 x 480 mm, respectively. These tables incorporate DIN-650 T-grooves, which are essential for attaching dies, jigs, fixtures, and tools. The press ensures perfect alignment of the upper plate through the use of two 50 mm diameter cylindrical guides. The bottom table has a working height of 875 mm.
Mode Selector
The PPCU100 is equipped with a mode selector for manual, semi-automatic, and automatic work modes. It also offers two adjustable speeds for improved versatility. The press comes with a pressure switch, and the side protection panels are fitted with Level IV light guards for enhanced safety. Additionally, end-of-stroke switches are included for easy adjustment of the cylinder stroke.
Please contact for prices
- Description
- Additional Info
Specifications:
- Pressure Force (tn): 100
- Motor Power (kW): 7.5
- Throat Depth (mm): 320
- Working Speed (mm/sec): 6.4
- Approaching Speed (mm/sec): 30
- Return Speed (mm/sec): 53
- Max Pressure (bar): 250
- Piston Stroke (mm): 260
- Vertical Light (mm): 450
- Lower Table Size (mm): 780 x 480
- Upper Table Size (mm): 700 x 400
- Table Height (mm): 875
- Total Length (mm): 1600
- Total Width (mm): 1500
- Total Height (mm): 2200
- Weight (kg): 3400
Features:
-
- Equipped with an upper- and lower table with T-grooves (DIN-650); tools can be easily fastened onto the tables
- Perfect alignment thanks to two lateral guides for the upper table
- Two lateral protection screens (which can be opened) with level IV safety light guards at the front
- The cylinder stroke is easy to adjust with the end-stroke switches
- Manual/semi-automatic / automatic mode
- Two cylinder speeds
- Pressure switch and manometer
- Operation by means of a foot pedal
- Double-Action main cylinder
- Chromed piston
- Hydraulic group has a two-speed high pressure pump
- Hydraulic Group has automatic disconnection of the high speed
- Electro-Valve activation
- Valves include anti-return, safety, and pressure regulation valves
- Cylinder decompression system incorporated
- Safety block preventing slide table from falling
Optional Accessories:
- Push buttons – 2 Hand
- Hydraulic Cushion
- Hydraulic Ejector
- Piston Stroke enhance length
- Larger Vertical Daylight
- Large Table
- Faster Approach Speeds
- Faster Return Speeds
- HMI Adaptation
- Adaptations to robotics
- Industry 4.0 Controls and Data Gathering
- Fully customized to specific requirements
Suitable for various materials
C-Frame Presses are useful in every factory or workshop and are not only useful for mild steel but a variety of other materials also such as copper, brass, stainless steel, and carbide. C-Frame presses are used for punching, pressing, coining, straightening, forming, bending and, drawing and are useful in every industry. The RHTC C Frame presses come equipped with standard tools, but custom tools are also available from WorkshopPress.co.uk and we can use our in-house 3D manufacturing capabilities to assist in the design of custom press tools to suit your application.
All of the RHTC Profi Press C-frame presses are manufactured in Europe according to the latest CE standards and are supplied directly from our warehouse with a CE certificate. All components and materials are of the best possible quality which lends to the machines hefty weight of 1750 kg.
CE Certificate
This press comes with a standard 2-Year Warranty and a CE Certificate as standard.
All Profi Presses by RHTC are customisable, integrative, and have custom tools available.
Please contact Workshoppress today with any questions by telephone at +44 (0) 800 999 1090, or by email at info@workshoppress.co.uk.
