C-Frame Press • PPCUHS100 • 100 Tons • RHTC
Product Code: PPCUHS100Market-Leading C-Frame Press – Customisable, Integrative, and with Custom Tool Options
This 100-ton C-frame press by RHTC Profi Press, the PPCU-HS-100, is ideal for heavy-duty tasks such as deep-drawing, forming, stamping, riveting, and more. With a throat depth of 400 mm and a working speed of 8.2 mm/s, it ensures precision and efficiency even in the most demanding applications. The press boasts an impressive approach speed of 90 mm/s, and after completing the cycle, the piston returns at a rate of 120 mm/s. Its maximum piston stroke is 500 mm, with an overall vertical daylight of 650 mm, making it suitable for a wide range of industrial applications.
Upper and Lower Tables

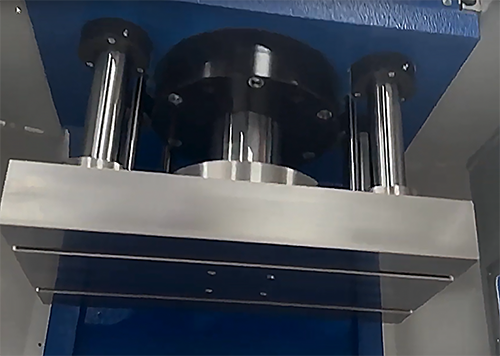

The PPCU-HS-100 is equipped with an upper table (slide) measuring 800 x 400 mm and a lower table (bolster) measuring 1000 x 600 mm, both incorporating DIN-650 T-grooves. These features enable easy and secure attachment of dies, jigs, fixtures, and tools. Precision alignment of the upper table is achieved through the use of two 75 mm diameter cylindrical guides, ensuring stability and accuracy during operations. The lower table has an ergonomic working height of 950 mm, making it operator-friendly for prolonged use.
Advanced Work Mode Selector

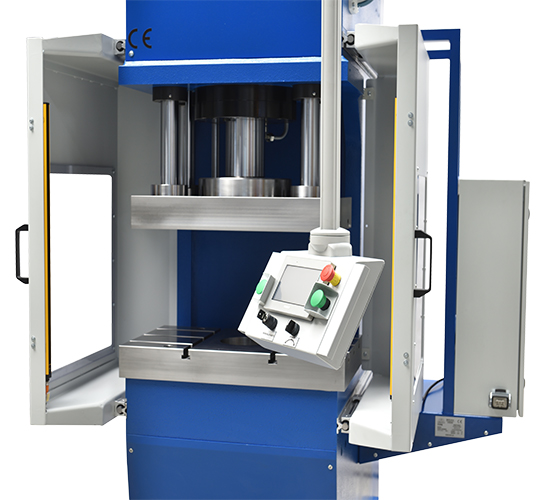

The PPCU-HS-100 includes a selector for manual, semi-automatic, and automatic work modes, along with dual-speed operation to maximise versatility. It features a pressure switch for fine control and lateral protection panels equipped with Level IV safety light guards. End-of-stroke switches facilitate easy and precise adjustment of the cylinder stroke, enhancing productivity and accuracy across all tasks.
Please contact for prices
- Description
- Additional Info
Specifications:
- Pressure Force: 100 tons
- Motor Power: 7.5 kW
- Throat Depth: 400 mm
- Working Speed: 8.2 mm/sec
- Approaching Speed: 90 mm/sec
- Return Speed: 120 mm/sec
- Maximum Pressure: 250 bar
- Piston Stroke: 500 mm
- Lower Table Size: 1000 x 600 mm
- Upper Table Size: 800 x 400 mm
- Max. Vertical Light: 650 mm
- Working Height: 950 mm
- Total Length: 2000 mm
- Total Width (Frontal): 1800 mm
- Overall Height: 2800 mm
- Weight: 4500 kg
Features:
- Upper and lower tables with T-slots (DIN-650) for easy tool fastening.
- Lateral guides ensure perfect alignment for the upper table.
- High-speed operation with one main cylinder and two lateral cylinders.

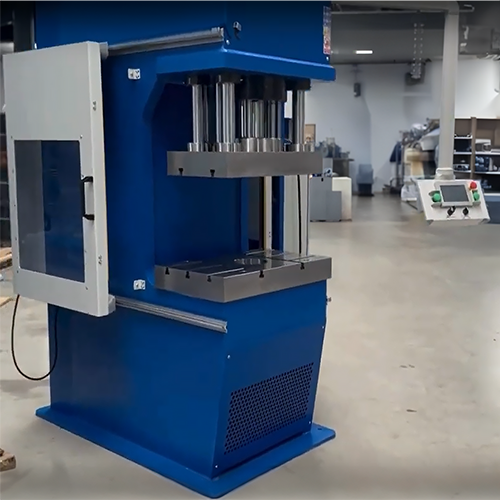

- Sliding lateral protection screens with level IV safety light guards at the front.
- Siemens PLC control panel for programmable settings and up to 100 saved working cycles.
Optional Accessories:
- Customised geometry, including larger tables, vertical light, or piston stroke.
- Software tailored to specific requirements.
- Hydraulic ejector for additional functionality.
- Hydraulic cushion for enhanced precision.
- Robotic integration adaptations for automation.
- Industry 4.0 Controls and Data Gathering
- Fully customized to specific requirements
Suitable for various materials
PPCU-HS Series C-Frame Presses are indispensable in factories and workshops, offering versatility for processing a wide range of materials, including mild steel, stainless steel, copper, brass, and carbide. These presses are ideal for applications such as punching, pressing, coining, straightening, forming, bending, and drawing, making them suitable for virtually any industry.
The RHTC PPCU-HS C-Frame presses come equipped with high-quality standard tools, and custom tools are also available from WorkshopPress.co.uk. Our in-house 3D design and manufacturing capabilities allow us to assist in the development of custom press tools tailored to your specific application needs.
Each RHTC Profi Press PPCU-HS model is manufactured in Europe according to the latest CE standards, ensuring exceptional quality and compliance. Supplied directly from our warehouse, they include a CE certificate, reflecting their robust construction and adherence to stringent European standards. With a hefty weight of 3000 kg, the PPCU-HS presses offer unparalleled stability and durability.
CE Certificate
This press comes with a standard 2-Year Warranty and a CE Certificate as standard.
All Profi Presses by RHTC are customisable, integrative, and have custom tools available.
Please contact Workshoppress today with any questions by telephone at +44 (0) 800 999 1090, or by email at info@workshoppress.co.uk.
