C-Frame Press • PPCUHS150 • 150 Tons • RHTC
Product Code: PPCUHS150Market-Leading C-Frame Press – Customisable, Integrative, and with Custom Tool Options

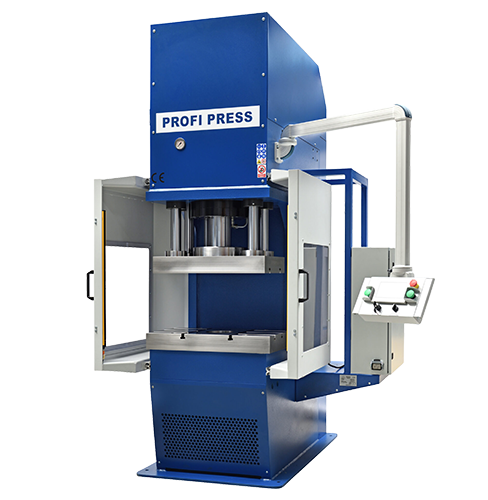

The 150-ton C-frame press by RHTC Profi Press, the PPCU-HS-150, is engineered for the most demanding heavy-duty tasks such as deep-drawing, forming, stamping, riveting, and more. With a throat depth of 450 mm and a working speed of 7.5 mm/s, it delivers unmatched precision and efficiency. The press offers an impressive approach speed of 80 mm/s, and after completing the cycle, the piston returns at a rate of 110 mm/s. Its maximum piston stroke is 600 mm, with an overall vertical daylight of 750 mm, making it ideal for a wide array of industrial applications.
Upper and Lower Tables
The PPCU-HS-150 is equipped with an upper table (slide) measuring 900 x 500 mm and a lower table (bolster) measuring 1200 x 700 mm, both featuring DIN-650 T-grooves for easy attachment of dies, jigs, fixtures, and tools. Precision alignment of the upper table is ensured by two 80 mm diameter cylindrical guides, providing stability and accuracy throughout operations. The lower table is designed with an ergonomic working height of 1000 mm, ensuring operator comfort during prolonged use.
Advanced Work Mode Selector
The PPCU-HS-150 includes a versatile selector for manual, semi-automatic, and automatic work modes, along with dual-speed operation to meet various operational needs. It features a pressure switch for accurate control and lateral protection panels equipped with Level IV safety light guards for maximum safety. End-of-stroke switches enable straightforward and precise adjustments of the cylinder stroke, enhancing productivity and ensuring optimal performance.
Please contact for prices
- Description
- Additional Info
Specifications:
- Pressure Force: 150 tons
- Motor Power: 11 kW
- Throat Depth: 450 mm
- Working Speed: 7.5 mm/sec
- Approaching Speed: 80 mm/sec
- Return Speed: 110 mm/sec
- Maximum Pressure: 250 bar
- Piston Stroke: 600 mm
- Lower Table Size: 1200 x 700 mm
- Upper Table Size: 900 x 500 mm
- Max. Vertical Light: 750 mm
- Working Height: 1000 mm
- Total Length: 2500 mm
- Total Width (Frontal): 2000 mm
- Overall Height: 3000 mm
- Weight: 5500 kg
Features:
- Upper and lower tables with T-slots (DIN-650) for easy tool fastening.
- Lateral guides ensure perfect alignment for the upper table.
- High-speed operation with one main cylinder and two lateral cylinders.
- Sliding lateral protection screens with level IV safety light guards at the front.
- Siemens PLC control panel for programmable settings and up to 100 saved working cycles.
Optional Accessories:
- Customised geometry, including larger tables, vertical light, or piston stroke.
- Software tailored to specific requirements.
- Hydraulic ejector for additional functionality.
- Hydraulic cushion for enhanced precision.
- Robotic integration adaptations for automation.
- Industry 4.0 Controls and Data Gathering
- Fully customized to specific requirements
Suitable for various materials
PPCU-HS Series C-Frame Presses are indispensable in factories and workshops, offering versatility for processing a wide range of materials, including mild steel, stainless steel, copper, brass, and carbide. These presses are ideal for applications such as punching, pressing, coining, straightening, forming, bending, and drawing, making them suitable for virtually any industry.
The RHTC PPCU-HS C-Frame presses come equipped with high-quality standard tools, and custom tools are also available from WorkshopPress.co.uk. Our in-house 3D design and manufacturing capabilities allow us to assist in the development of custom press tools tailored to your specific application needs.
Each RHTC Profi Press PPCU-HS model is manufactured in Europe according to the latest CE standards, ensuring exceptional quality and compliance. Supplied directly from our warehouse, they include a CE certificate, reflecting their robust construction and adherence to stringent European standards. With a hefty weight of 3000 kg, the PPCU-HS presses offer unparalleled stability and durability.
CE Certificate
This press comes with a standard 2-Year Warranty and a CE Certificate as standard.
All Profi Presses by RHTC are customisable, integrative, and have custom tools available.
