D350 / 65 – 790 • 350 Kg Capacity • 0.05 to 10 RPM • 790mm Working Height • 65mm Through Hole

Product Code: 160.582

The model D350/65-790 Welding Positioner has a 350 Kg Load Capacity, a 65mm Through Hole, and a 790 mm Working Height.  It is made in Germany, has a 2-Year Warranty, and is CE Certified.

Merkle GmbH develops and manufactures top-quality welding positioners in their factory located in Baden-Württemberg, Germany.   Merkle’s offering is comprehensive and broad, with load capacities ranging from 50 to 5000 kg.   Over the years, the family-owned business has accumulated decades of experience, and their proven technology is the critical element for perfect results in every circular welding application. Merkle welding positioners guarantee speed control that is exact and constant even with uneven loads.

Please contact for prices

    • Description
    • Additional Info

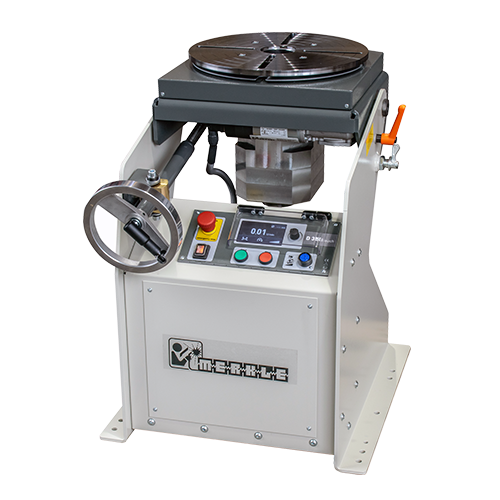

    D350 Touch Welding Turntable 65 mm Through Hole 790 mm Working Height
    Load capacity: 350 Kg
    Speed: 0.5 to 10.0
    Center hole diameter: 65 mm
    Tilting angle: 135°
    Face plate diameter: 400 mm
    Table Height: 790 mm
    Rotation: Clockwise / Anti-Clockwise
    Foot Switch Option: Yes – 2-way or 4 way
    Remote Control Option: Yes
    Control Panel: Large with Protective Cover
    Voltage: 240V, 1 Phase
    Current: 1 Amp
    Frequency: 50-60 Hz
    Welding current (current collector): 34 V / 400 A
    Duty cycle: 80 %: (10 min.) 400 A (40°C)
    Isolation class: H
    Cooling Class: E
    Main switch: 1 Ph
    RPM control: 1:200
    Load capacity (vertical): 100 Kg
    Load capacity (horizontal): 150 Kg
    Torque: 50 Nm
    RPM range: 0,05 – 10 min-1: 0.05 to 10
    Tilting angle face plate: 135°
    Tilting movement: manually clampable and latching
    Tilting moment: 130 Nm
    Max. work piece diameter: 490 mm
    Weight: 55 kg
    Dimensions (L x W x H) 678 x 412 x 400 mm
    Axle height: 320 mm
    Current collector: 400 A/34 V/80% duty cycle
    Mains supply cable: 3 lead x 2.5 mm² 5 meters long
    Workpiece connection: Screwable
    Warranty: 2 Years
    Made in Germany
    CE Certified

    All Merkle positioners are tiltable to 135° and suited for use with a wide variety of welding applications such as MIG/MAG, TIG, MMA/stick electrode welding, plasma welding and other cutting processes. All models come equipped with sockets allowing for attaching foot switches and remote controls offering the welder operator additional control during welding processes. Merkle welding positioners can easily be implemented in many automated welding application and systems, and Merkle offers a wide variety of accessories and fixtures, making their rotary welding tables the most flexible on the market.
