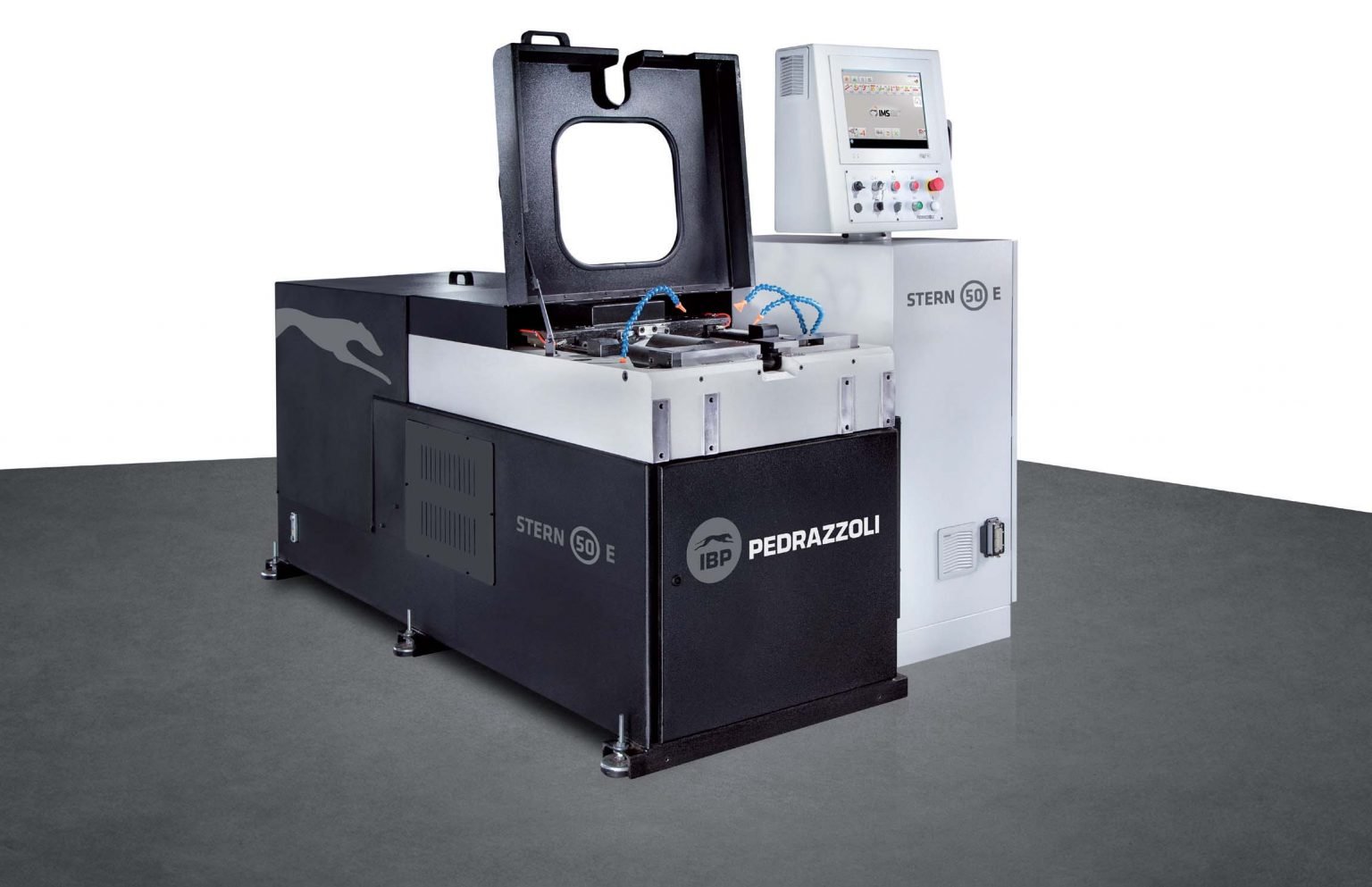

End Forming and Finishing Machine Stern 50 from Pedrazzoli

Product Code: Stern 50 End Former

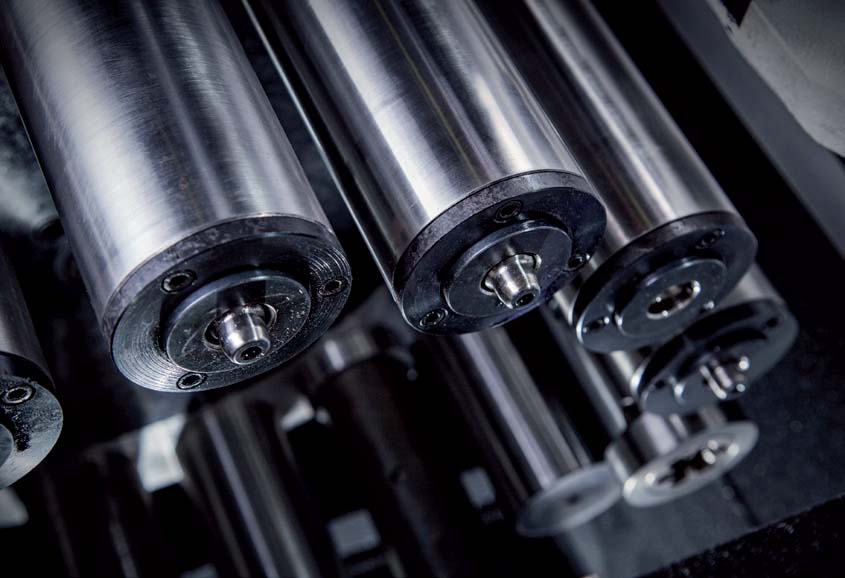

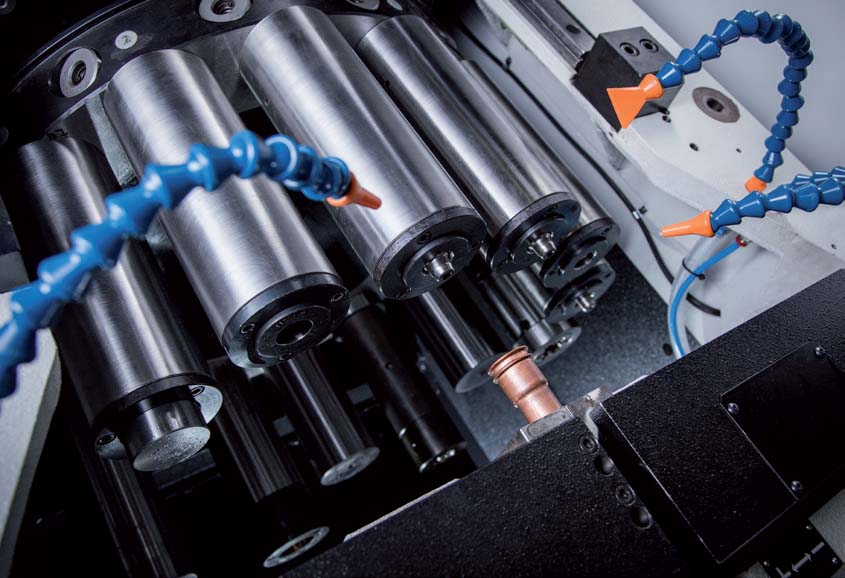

PEDRAZZOLI, an Italian company established in 1949, manufactures the modern and compact design STERN 50 all electric end-forming which is designed to suit bending requirements within the Automotive, HVAC, Aerospace, Nautical and Marine, Fitness, and Street Furniture industries which require the most stringent requirements of accuracy, reliability, flexibility, and speed. The Stern 50 is a 360 degree End Forming Machine with 4 completely electric axes driven by brushless motors. It has a potential for 15 simultaneous workstations all of which can be motorised and enables a wide variety of processes such as beading, flaring, reduction, expanding, shaping, threading, finishing, boring or chamfering to be carried out in one work cycle. The toolholders are located under the work area on a circular drum and all tool stations can be fitted with rotating tools and modules. Tool changeover is easy and quick. The intuitive, user-friendly, and proprietary Intelligent Motion System, or “IMS” is combined with Fanuc Drives-Motors-Numeric controls package providing productivity, versatility, accuracy, and green operation. The IMS enables support and service to be carried out remotely either by network login or webcam. The IMS platform is available for PC, tablet, smart-phone platforms and makes the Stern 50 easy to integrate into production lines and systems. All machines are designed and built in Italy according to the most recent Machinery Directives and are CE Certified.

    Specification Sheet Download Here
    PRODUCT VIDEO
    Stern Brown 50 Tube End Former Finisher
    PRODUCT ENQUIRY
    • Description
    • Additional Info

    Specifications

    • Dimensions (L x W x H) [mm): 2400 x 1460 x 1700
    • Weight [kg]: 2500
    • Maximum end-form diameter [mm]: 55
    • Maximum end-form length: 170
    • Tool Revolving Carriage Capacity: 15
    • End forming speed [mm/sec]: 200
    • Positioning precision [mm/sec]: 0.05
    • Work Unit Thrust Speed [kN]: 0 to 150
    • Clamp Holding Force [kN]: 0 to 230
    • Jaws Length [mm]: 140
    • Jaw Opening Max [mm]: 72
    • Electically Controlled Axes: 3
    • Workstations that can be Motorised: 15

    Features

    • Intelligent Motion System (IMS): V4
    • PC, Tablet, Smartphone Interface
    • Muli-Operations in 1 Cycle
    • Remote Support
    • Energy Saving – Green Operation
    • Remote Support
    • PC, Tablet, Smartphone Interface
    • Brushless Axes Motors
    • Multi-Operations in 1 Cycle

    PEDRAZZOLI, an Italian company established in 1949, and with many decades of experience in tube manipulation and processing machinery, manufactures the modern design Stern Series End Forming and Finishing Machinery. The first swaging machine model called the JARISTON BROWN was introduced in 1948 and the STERN BROWN end forming machines followed shortly afterwards. The current models of the STERN BROWN End Finishers and End Formers feature sophisticated controls and are easy to use.  The controls are run with the most modern industrial computers incorporating touch screens and state-of-the-art controlled axes with multiple workstations.  All types of end forming and end finishing can be carried out in the sophisticated multi-station models.  Beading, flaring, reduction, expanding, shaping, threading, finishing, boring or chamfering are all possible with Stern Brown end finishing and forming machines.
