B.70 ERLO Drilling Machine • 70mm Gear-Driven • Electromagnetic Feed
Please contact for prices

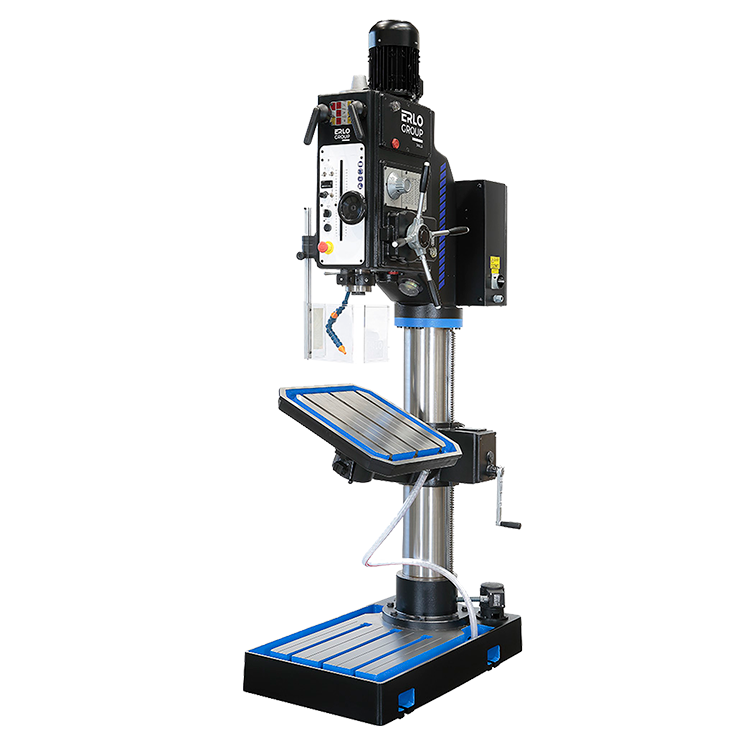

The ERLO B.70 is a 70 mm capacity floor standing production drilling machine designed for demanding industrial drilling and tapping applications. Featuring automatic feed with an electromagnetic clutch, hardened and ground gear transmission, a sliding worktable, fixed headstock and robust cast iron construction, it delivers exceptional rigidity, accuracy and reliability in production environments.
Unlike the A Series mechanical clutch machines, the B Series incorporates an electromagnetic clutch system, providing smoother automatic feed engagement and supporting more advanced production drilling applications. With a 70 mm drilling capacity, M50 tapping capability, MT5 spindle taper and 5.5 kW motor, the B.70 is suited to heavy-duty engineering, fabrication and production machining operations.
The ERLO B.70 is a floor standing production drilling machine with automatic feed, an electromagnetic clutch, MT5 spindle taper and 70 mm drilling capacity. Designed for industrial drilling and tapping applications requiring high rigidity, consistent feed control and enhanced production performance.
Specifications
- Description: Floor Standing Production Drilling Machine
- Table: Tilting & Rotating Table
- Table Size: 600 × 600 mm
- Floor / Bench: Floor Standing
- Feed: Automatic Feed
- Clutch: Electromagnetic Clutch

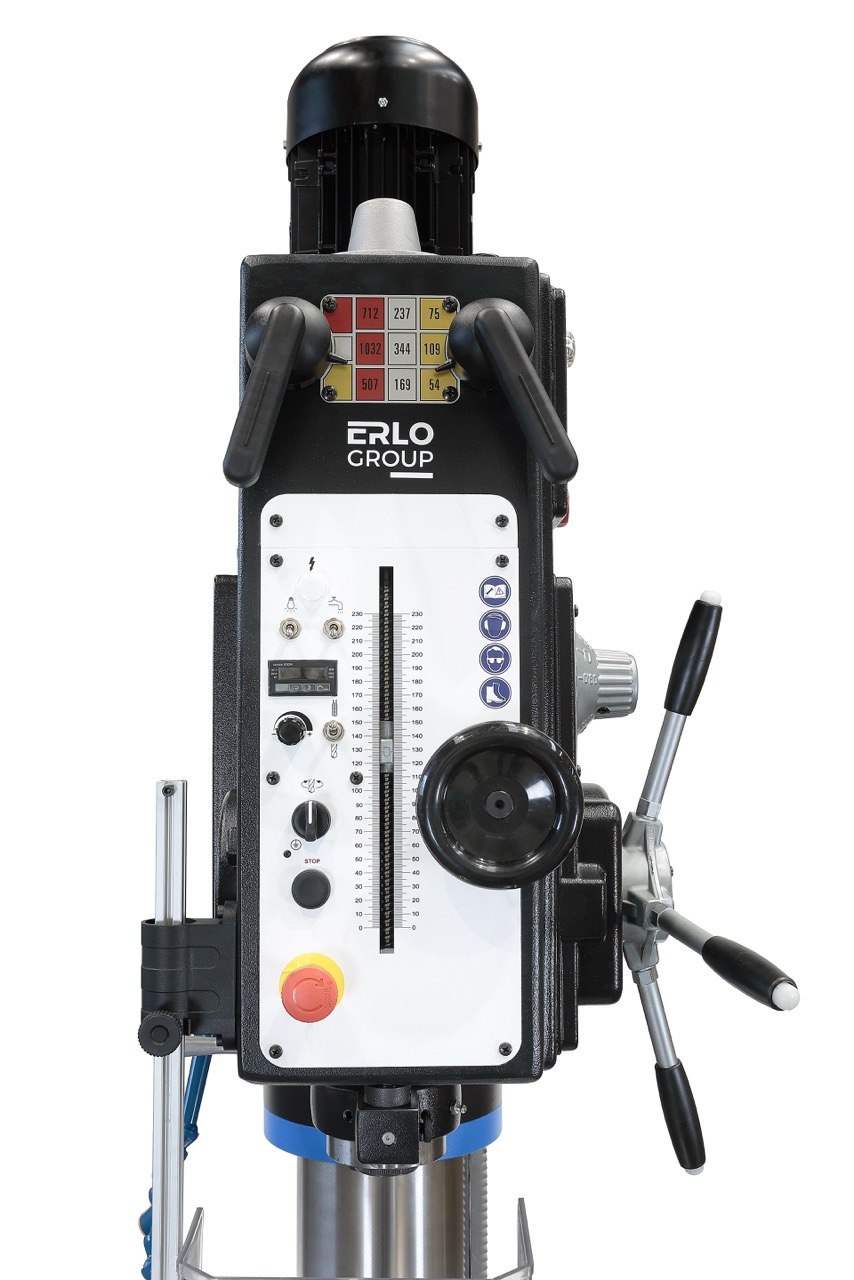

- Headstock: Fixed
- Table Movement: Sliding Table
- Weight: 840 kg
- Cooling System: Standard
- Lighting: Yes
- Drilling Capacity: Ø70 mm
- Tapping Capacity: M50
- Speeds: 12
- Automatic Feeds: 6
- Feed Range: 0.1 / 0.2 / 0.3 / 0.4 / 0.5 / 0.6 mm/rev
- Motor: 5.5 kW
- Taper: MT5
- Stroke: 260 mm
- Column Diameter: Ø220 mm
- Throat Depth: 420 mm
Features
- Automatic feed with electromagnetic clutch
- Six selectable feed rates
- Sliding worktable with fixed headstock

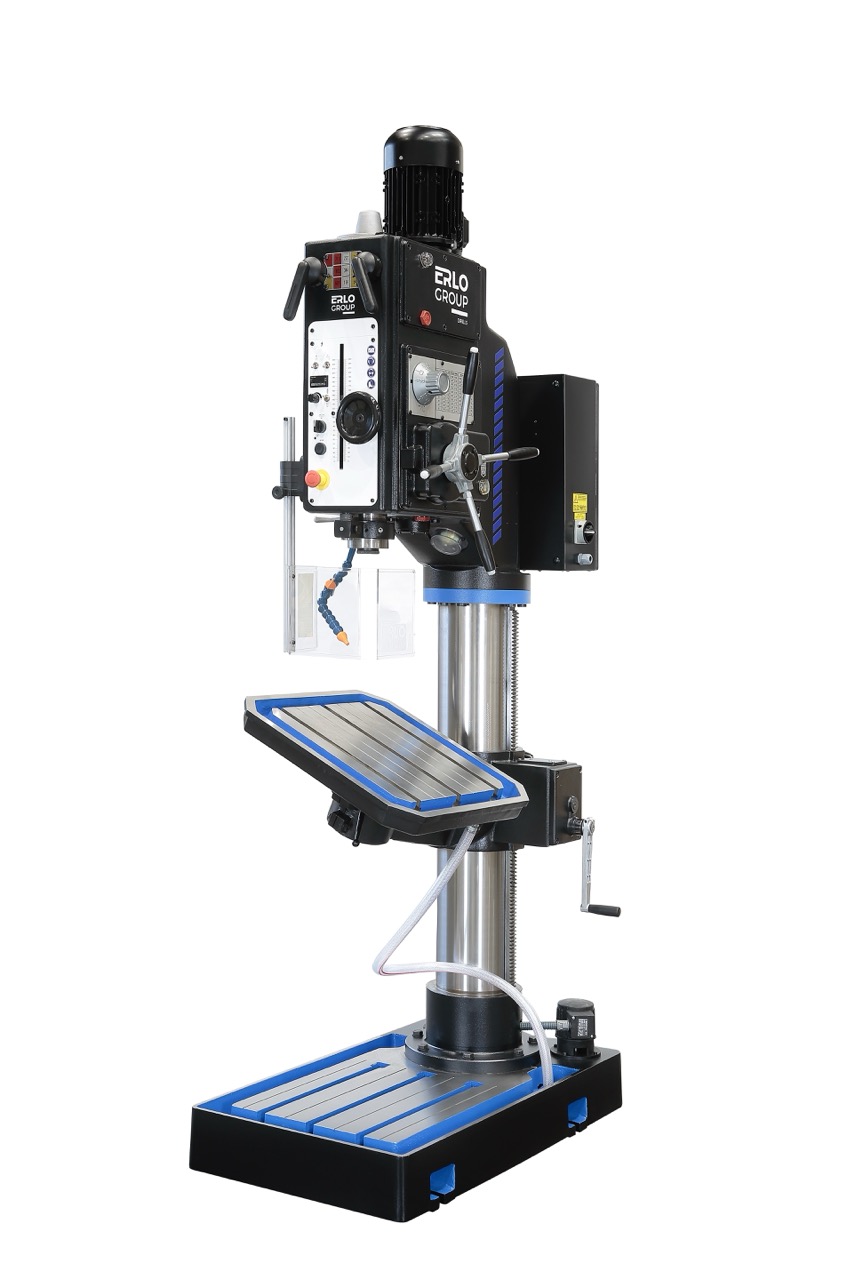

- Tilting and rotating worktable
- Hardened and ground steel gears
- Integrated coolant system
- Fine manual feed wheel
- Automatic gear lubrication system
- Cast iron head, base and column
- CE compliant safety equipment
Optional Equipment
- Digital Depth Reader (LBC)
- Electronic Speed Variator & Display (VE + TAK)
- Automatic Tapping Inversion (IR/RS)
- Automatic Tapping Inversion for Variator Models (IR/RS VE)
- Automatic Tapping System (RHP)
- Rapid Approach & Retraction (ACNL)
- Comprehensive Cycle with Encoder (CI)
- Reduced Feed Rate Package (AR)
- 200 mm Column Extension (SC)
Pillar Drill Frequently Asked Questions
Find answers to common questions covering drilling capacity, tapping capability, spindle tapers, drive systems, machine selection, installation, servicing and maintenance.
The ERLO B.70 is a 70 mm capacity floor standing production drilling machine designed for demanding industrial drilling and tapping applications. Featuring automatic feed with an electromagnetic clutch, hardened and ground gear transmission, a sliding worktable, fixed headstock and robust cast iron construction, it delivers exceptional rigidity, accuracy and reliability in production environments.
Unlike the A Series mechanical clutch machines, the B Series incorporates an electromagnetic clutch system, providing smoother automatic feed engagement and supporting more advanced production drilling applications. With a 70 mm drilling capacity, M50 tapping capability, MT5 spindle taper and 5.5 kW motor, the B.70 is suited to heavy-duty engineering, fabrication and production machining operations.
Download the ERLO B Series Specification Sheet
ERLO B Series dimensional drawing.
