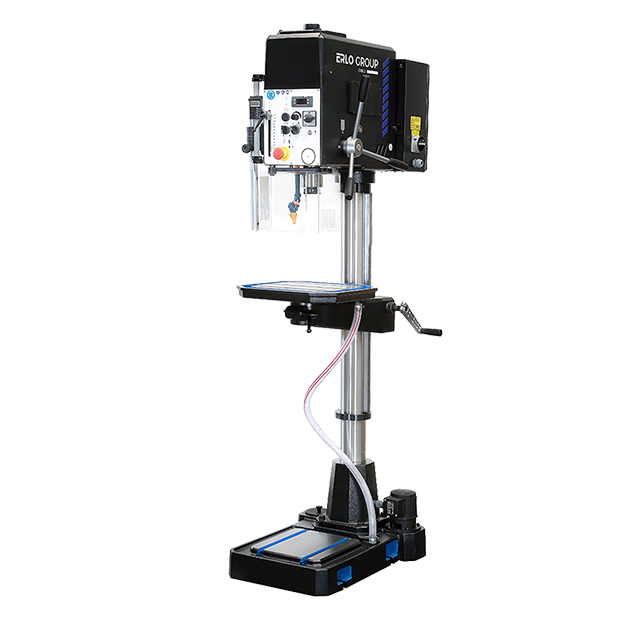

C.25 Floor Standing Production Drilling Machine • 25mm Capacity • Manual Feed

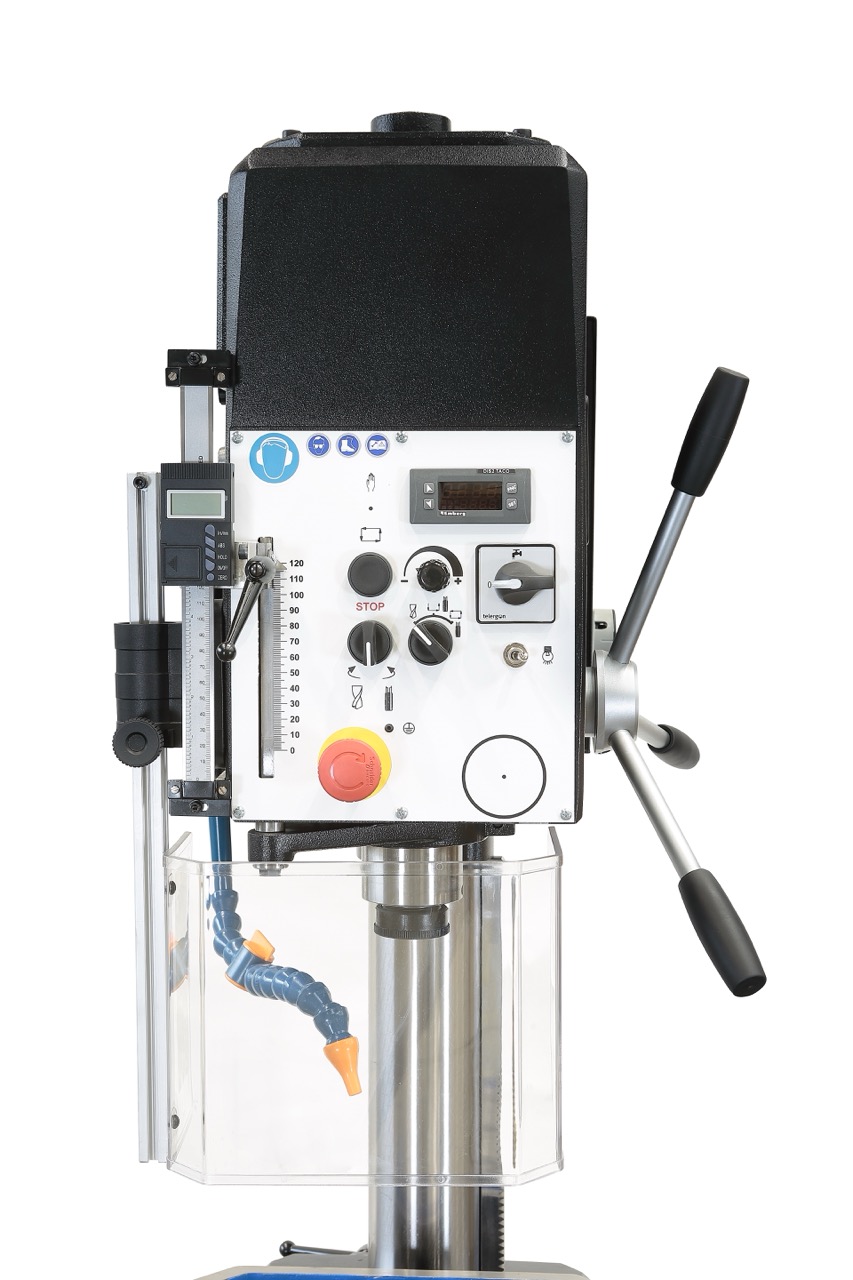

The ERLO C.25 is a floor standing production drilling machine designed for accurate drilling and tapping operations in manufacturing, fabrication and maintenance environments. Constructed with a cast iron head, base and column, the machine provides excellent rigidity, durability and long-term accuracy. The sliding table and fixed headstock configuration allows larger components to be positioned easily beneath the spindle while maintaining precise drilling alignment.

With a 25mm drilling capacity, M18 tapping capability, MT3 spindle taper and 120mm spindle stroke, the C.25 is well suited to both production and general engineering applications. The 10-speed belt driven transmission provides a wide operating range, while the floor standing design offers increased working capacity and support for larger workpieces.

Choosing the Right C Series

C Series – Manual Feed + Sliding Table + Fixed Headstock

The C Series is designed for users who prefer moving the workpiece beneath a fixed spindle position. The sliding table arrangement provides greater flexibility when drilling larger or awkwardly shaped components while retaining the simplicity and reliability of manual feed operation.
