G.32 Floor Standing Industrial Pillar Drill • 32mm Capacity • Geared Head Manual Feed Categories
Please contact for prices
The ERLO G.32 is a heavy-duty floor standing industrial pillar drill designed for maintenance drilling, general engineering, fabrication and workshop production tasks. With 32mm drilling capacity, M24 tapping capacity, MT3 spindle taper and geared head transmission, the G.32 provides reliable torque, rigidity and accuracy for demanding industrial use.

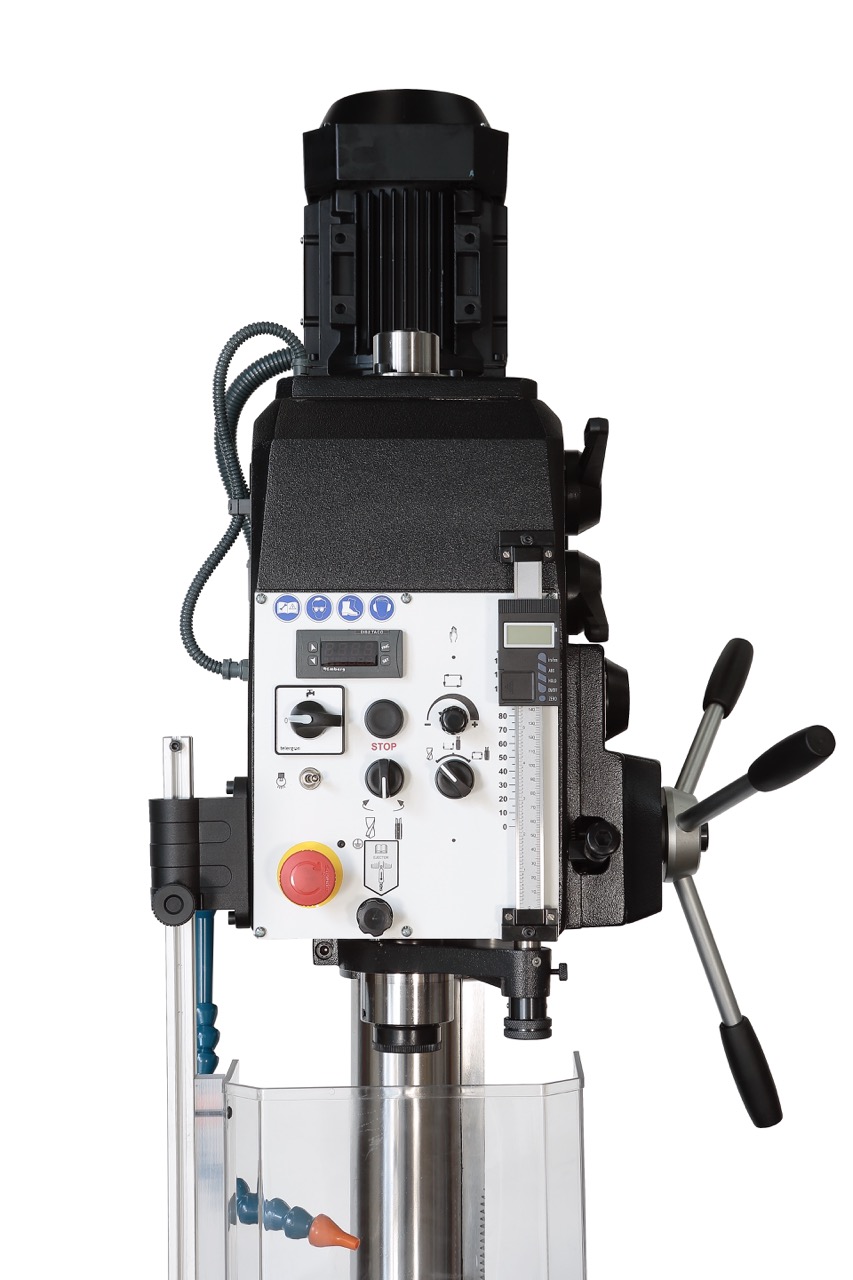

The machine features hardened and ground steel gears, a cast iron head, cast iron base and 100mm diameter column for stable drilling performance. Its 270 x 300mm T-slotted worktable supports secure workholding, while the 120mm spindle stroke gives practical drilling depth for a wide range of engineering components.
If you are looking for a similar machine with automatic feed operation for increased productivity and repetitive drilling applications, please see the ERLO GP.32 Automatic Feed Pillar Drill.

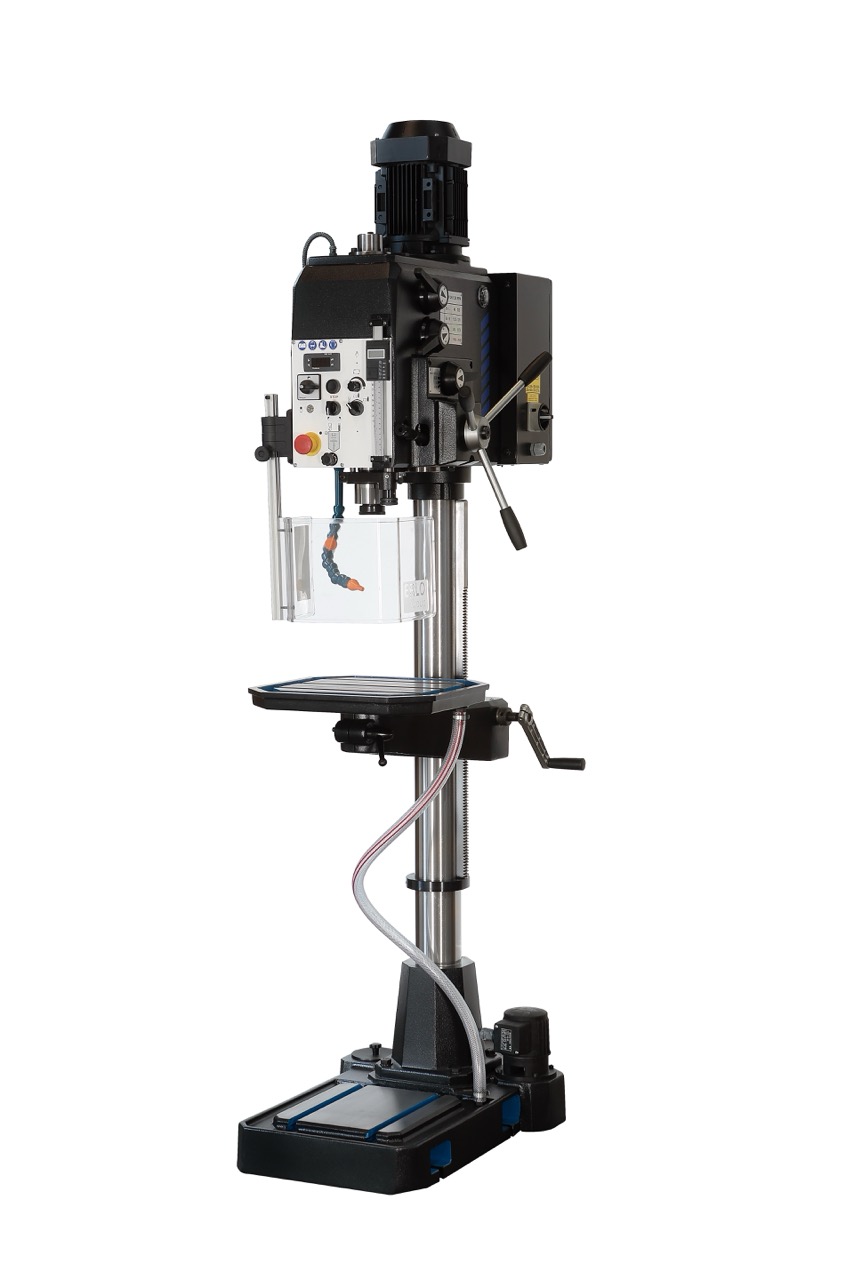

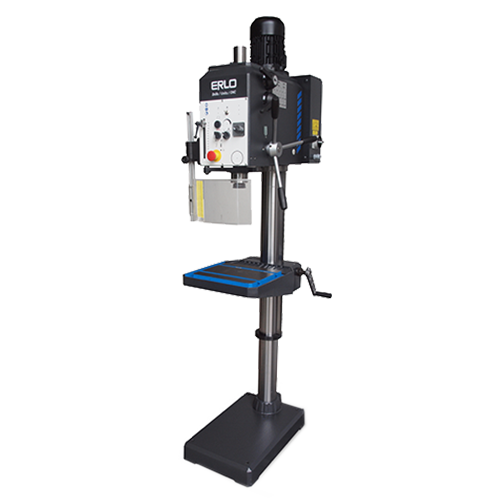

Heavy-duty ERLO G.32 floor standing geared head pillar drill with 32mm drilling capacity, M24 tapping capacity, MT3 spindle taper, 120mm spindle stroke and industrial cast iron construction.
Specifications
- Description: Floor Standing Industrial Drill
- Table: Fixed Table
- Table Size: 270 x 300mm
- Floor / Bench: Floor Standing
- Drilling Feed: Manual Feed
- Tapping Feed: Manual Feed
- Drive: Gear Driven
- Headstock: Fixed Headstock
- Weight: 360kg Net Weight
- Lighting: Optional
- Coolant: Optional
- Drilling Capacity: 32mm
- Tapping Capacity: M24
- Speeds: 65-125-185-365-540-1055-1560-3060rpm
- Motor: 1.8kW
- Taper: MT3
- Stroke: 120mm
- Column Diameter: 100mm
- Throat Depth: 250mm
- Spindle to Table Max: 635mm
Features
- Hardened and ground steel gears
- Table with T-slots
- Adjustable depth end
- Tool ejector
- Motor guard
- Emergency push button
- Rotation direction selection
- Main switch
- Low-voltage electrical equipment
- Electrical equipment in separate cabinet
- Drill guard with stop micro
- Fixed table
- Gears greased by automatic pump
- CE norms
Optional Equipment
- Lighting Equipment
- Auto-Reverse for Manual Tapping
- Rotating Table
- Cooling Equipment in Base
Accessories: Chuck, Tool Holder, Reduction Sleeves, Vices, Pedal and Cross Table.
Pillar Drill Frequently Asked Questions
Find answers to common questions about drilling capacity, tapping, spindle tapers, drive systems, machine selection, installation and servicing.
The ERLO G.32 is a heavy-duty industrial geared pillar drill designed for maintenance drilling, fabrication, general engineering and workshop production use. Featuring a 32mm drilling capacity, M24 tapping capacity, MT3 spindle taper, hardened and ground steel gears, and robust cast iron construction, it delivers reliable performance, excellent rigidity and long service life in demanding industrial environments.
ERLO G.32 and GP.32 dimensional drawing.
