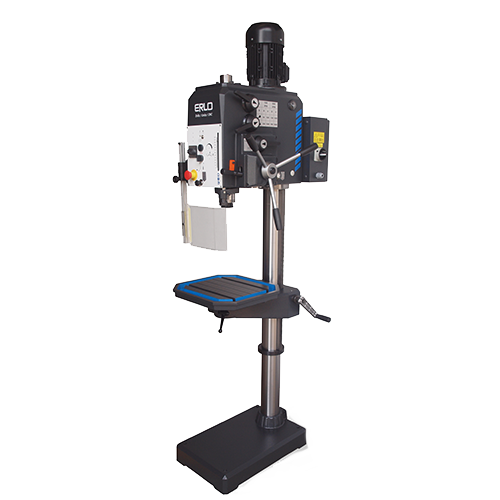

ERLO GP.32 Professional Pillar Drill • Gear Driven • Automatic Feed • 32 mm Drilling • 24 mm Tapping
Product Code: GP.32"Discover our exceptional range of Professional Pillar Drilling Machines, designed to deliver unmatched performance and precision in your drilling operations. We offer distinct models to meet your specific requirements, each equipped with advanced features and built to the highest standards of quality.
Designed for stability and durability, the fixed table provides a sturdy surface for your workpieces, allowing for precise and controlled drilling. Our pillar drill proudly bears the CE certification, meeting stringent European safety standards.
Upgrade your drilling capabilities with our feature-rich, reliable, and CE-certified Column Pillar Drill. Experience enhanced precision, efficiency, and safety in all your drilling endeavors.
Please contact for prices
- Description
- Additional Info
Specifications
- Drilling capacity (mild steel): 32 mm
- Tapping capacity (mild steel): M24
- Transmission: Gear driven
- Speed number and range: 65-125-185-365-540-1055-1560-3060 rpm.
- Feed: Automatic
- Number and range of feeds: (3) 0,10-0,20-0,30
- Clutch: Mechanical
- Main motor power: 2 / 3 HP
- Main motor RPM: 1500/3000
- Spindle cone: MT3
- Spindle stroke: 120 mm
- Distance spindle-column: 250 mm
- Distance spindle to table: Min 85 mm/ Max 635 mm
- Distance spindle to base: 1170 mm
- Column diameter: 100 mm
- Dimensions of the table with T-Slots:
- Dimensions of the base without t slots (without coolant): 600 x 380 mm
- Dimensions of the base with t slots (with coolant): 665 x 400 mm
- Coolant equipment standard: NO
- Lighting equipment standard: NO
- CE Certified: Yes
- Weight Net: 260 Kg
- Weigh Packaged: 320 Kg
- Packaging dimensions and volume: 2140 x 600 x 80 mm / 1.02 m3
Features
- Moveable Table
- Fixed Headstock
- Adjustable depth
- Tool ejector
- Belt cover with stop micro
- Emergency push button
- Turning sense selector
- Electrical equipment at low voltage
- Drill guard with stop micro
- Fixed table
- CE norms
Optional Equipment
- Lighting equipment (L – 20010)
- Manual tapping system ir/rs (IR/RS – 10042)
- Rotating table (for serie v.32) (MG – 20082)
- Rotating and tilting table (for series v.40 and vp.40) (MGI – 30084)
- Reversible rotating table with vice (for series v.40 and vp.40) (MGM – 20087)
- Coolant equipment in the base (ERB – 91118)
Erlo: Tradition and Innovation in Drilling and Tapping Machines
Erlo is a leading manufacturer of drilling and tapping machines, with over 50 years of experience in the industry. ERLO is known for reliable and durable machines, which are made with high-quality materials and components. ERLO’s machines are also easy to use and maintain, making them a good choice for machinists and metal fabricators of all levels of experience.
In addition to the standard range of drilling and tapping machines, also offered are customized solutions for specific applications are designed with a deep understanding of the custoer’s needs and the machine designs meet those needs perfectly.
It is the belief that tradition and innovation go hand-in-hand and ERLO has a committment to providing their customers with the latest technology and also value the traditional values of craftsmanship and quality.
If you are looking for a reliable and innovative drilling and tapping machine, Erlo is the perfect choice for you. Contact us today to learn more about our products and services.
ERLO products are proudly sold by The Workshop Press Company UK based in Kenilworth, Warwickshire.
