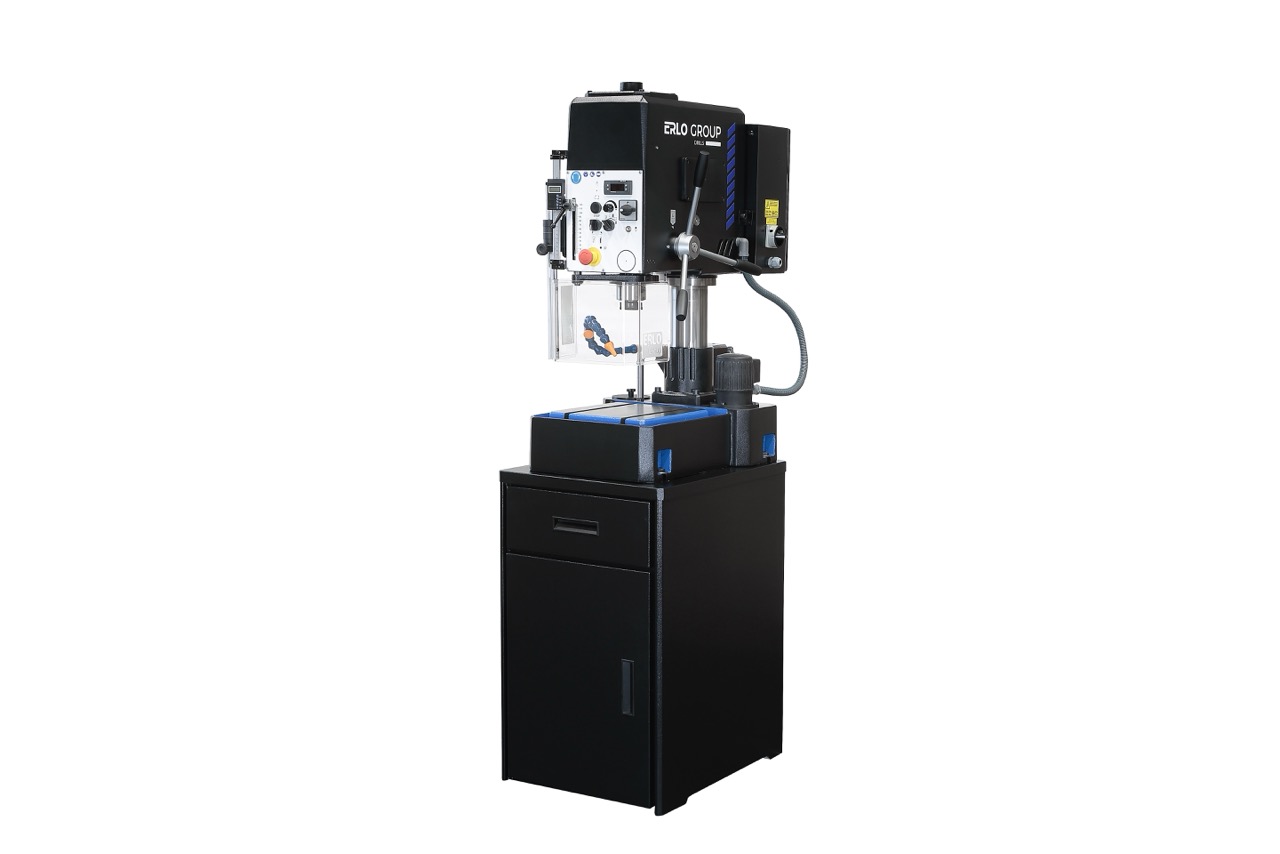

ERLO S Series belt driven production drilling machine with manual feed and sliding rotating headstock
ERLO S Series optional equipment including digital depth reader, electronic speed variator and coolant system
ERLO S Series control panel identifying drilling, tapping, feed and headstock adjustment functions
ERLO S Series drilling machine headstock showing feed controls, emergency stop and drilling controls

S.25 Bench Top Production Drilling Machine • 25mm Capacity • Manual Feed

SKU: ERLO-S25 Categories: , , , Tags: , , , , , , , , , , , , , ,

Please contact for prices

The ERLO S.25 is a heavy-duty bench top production drilling machine designed for accurate drilling and tapping operations in industrial workshops, maintenance departments and production environments. Built with a cast iron head, column and base, the machine provides excellent rigidity and long service life while maintaining the flexibility of a compact bench-mounted design. Its sliding and rotating headstock allows convenient positioning of the spindle over larger workpieces.

Offering a 25mm drilling capacity in steel, M18 tapping capability, MT3 spindle taper and 120mm spindle stroke, the S.25 is well suited to both batch production and general engineering applications. The proven 10-speed belt driven transmission provides a wide speed range for drilling different materials and hole sizes. The machine is supplied as a bench top model as standard, with optional ERLO cabinet bases available where a floor-standing installation is preferred.

Request Quote

    Download Specification Sheet

    The ERLO S.25 is a bench top production drilling machine with 25mm drilling capacity, M18 tapping capability, MT3 spindle taper and manual feed operation. Featuring a sliding rotating headstock, cast iron construction and 10-speed belt driven transmission, it is ideal for industrial drilling and maintenance applications. Optional ERLO cabinet bases are available for floor-standing installation.

    Specifications

    • Description: Production Drilling Machine
    • Table: Fixed Table
    • Table Size: 270 × 270 mm
    • Floor / Bench: Bench Mounted
    • Drilling Feed: Manual Feed
    • Tapping Feed: Manual
    • Drive: Belt Driven
    • Headstock: Sliding and Rotating Headstock
    • Weight: 190 kg
    • Lighting: Standard
    • Coolant: Optional ERB Cooling Equipment
    • Drilling Capacity: 25 mm
    • Tapping Capacity: M18
    • Speeds: 245–4000 rpm (10 Speeds)
    • Motor: 0.7 kW
    • Taper: MT3
    • Stroke: 120 mm
    • Column Diameter: 100 mm
    • Throat Depth: 250 mm

    Features

    • Manual feed drilling and tapping operation.
    • Sliding and rotating headstock for improved workpiece access.
    • Cast iron head, column and base construction.
    • 10-speed V-belt transmission.
    • 120mm spindle stroke.
    • Adjustable drilling depth stop.
    • Integrated machine lighting.
    • Tool ejector supplied as standard.
    • Belt cover fitted with safety microswitch.
    • Motor protection guard.
    • Emergency stop push button.
    • Main isolator switch.
    • Forward and reverse spindle rotation selection.
    • Low-voltage electrical system.
    • Separate electrical cabinet.
    • Drill guard fitted with safety microswitch.
    • Manufactured to CE requirements.

    Optional Equipment

    • Frontal wheel for sensitive feed
    • Digital depth reader
    • Electronic speed variator with digital speed display
    • Automatic rotation inversion for manual tapping
    • Automatic rotation inversion for manual tapping with variator
    • Cabinet base with drawer and door
    • Cabinet base with two shelves
    • Cabinet base with door
    • Cycle counter (for machines with hydroblock)
    • Fixed intermediate table
    • Rotating intermediate table
    • 200mm column extension
    • Automatic hydroblock cycle
    • Coolant equipment in base
    • Chuck and arbor assemblies
    • Reduction sleeves
    • Machine vices
    • Pedal bimanual command
    • Cross tables
    • Multiple spindle heads

    Pillar Drill Frequently Asked Questions

    Find answers to common questions covering drilling capacity, tapping capability, spindle tapers, drive systems, machine selection, installation, servicing and maintenance.

    View Pillar Drill FAQs

    The ERLO S.25 is a heavy-duty bench top production drilling machine designed for accurate drilling and tapping operations in industrial workshops, maintenance departments and production environments. Built with a cast iron head, column and base, the machine provides excellent rigidity and long service life while maintaining the flexibility of a compact bench-mounted design. Its sliding and rotating headstock allows convenient positioning of the spindle over larger workpieces.

    Offering a 25mm drilling capacity, M18 tapping capability, MT3 spindle taper and 120mm spindle stroke, the S.25 is well suited to both batch production and general engineering applications. The proven 10-speed belt driven transmission provides a wide speed range for drilling different materials and hole sizes. The machine is supplied as a bench top model as standard, with optional ERLO cabinet bases available where a floor-standing installation is preferred.

    Download the ERLO S Series Specification Sheet

    Dimensional drawing showing machine height, installation footprint, table dimensions, throat depth, column diameter and overall machine dimensions for ERLO S Series models.

    ERLO S Series dimensional drawing.
