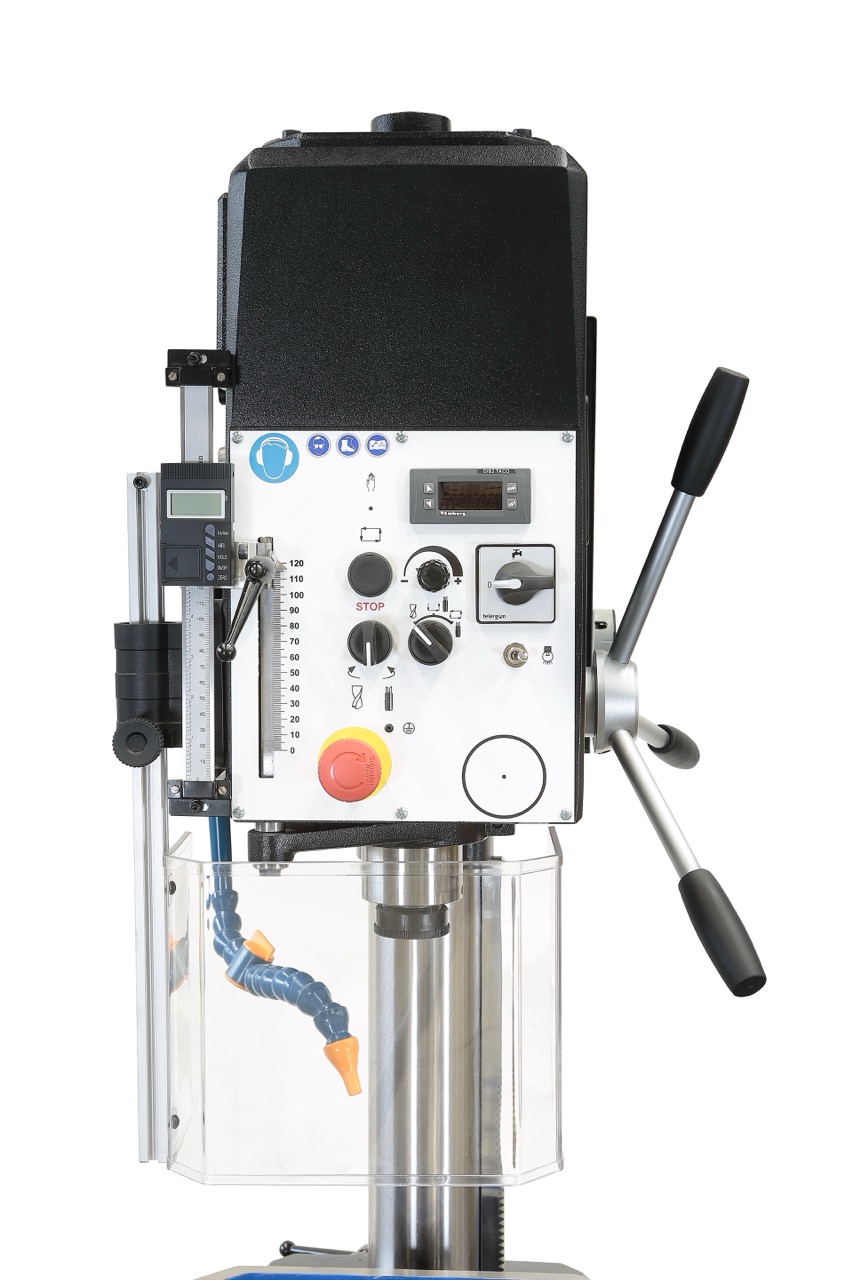

ERLO S.30 Bench Type Drilling Machine• V-Belt • Tapping Capacity M25

Specifications

• Drilling Capacity (Mild Steel): 30 mm

• Tapping Capacity (Mild Steel): M25
• Transmission:: V-Belt
• Speed number and range (without variator) 50 hz.:: (10) 245 – 355 – 490 – 710 – 835 – 1.240 – 1.670 – 2.000 – 2.480 – 4.000 rpm.
• Speed number and range (with variator):: VARIABLE A) 120-760 B) 170-1100 C) 400-2580 D) 600-3800 E) 950-6000 rpm.
• Main motor power (without variator) motor 1500 rpm.:: 0.8 / 1.4 kW
• Main motor power (with variator) motor 1000 rpm.:: 1.4 kW
• Spindle cone:: MT.3
• Spindle stroke:: 120 mm
• Spindle stroke with hydro block:: 90 mm
• Distance spindle-column:: 250 mm
• Distance spindle-table (models without coolant):: Min. 155 mm / Max. 485 mm
• Distance spindle-table (models with coolant):: Min. 225 mm / Max. 555 mm
• Column diameter:: Ø100 mm
• Dimensions of the table/base (without coolant):: 270 x 270 mm
• Dimensions of the table/base (with coolant):: 316 x 288 mm
• Table/base with “t” slots:: YES
• Adjustable depth end:: YES
• Lighting equipment:: YES
• Tool ejector:: YES
• Belt cover with stop micro:: YES
• Motor guard and emergency push button:: YES
• Emergency push button:: YES
• Main switch:: YES
• Turning sense selector:: YES
• Electrical equipment at low voltage:: YES
• Electrical equipment in a separate cabinet:: YES
• Drill guard with stop micro:: YES
• CE Certified: YES
• Weight: net / gross kg.:: 190 / 200 Kg.
• Packaging dimensions and volume:: 0.87 x 0.57 x 1.4/ 0.65 m3
• Weight: net / gross kg. with base cabinet:: 240 / 260 Kg.
• Shipping Dimensions: 2.25 x 0.6 x 0.8 / 1.08 m3

Features

• Manual Feed
• V-Belt Drive
• Fixed Table
• Rotating Headstock
• Table & Base with DIN-650 T-Slots
• Adjustable depth end
• Lighting equipment
• Tool ejector
• Belt cover with micro stop
• Motor guard
• Emergency push button
• Main switch
• Turning sense selector
• Electrical equipment at low voltage
• Electrical equipment in a separate cabinet
• Drill Guard with Micro-Switch
• CE Certified

Optional Equipment

• Frontal wheel for fine sensitive feed (V – 10020)
• Speed digital reader (for models with electronic variator) (TAK – 10021)
• Depth digital reader (LBC – 10022)
• Extra price for electronic variator (VE – 10023)
• Manual tapping system ir/rs (IR/RS – 10042)
• Manual tapping system ir/rs (for models with variator) (IR/RS (VE) – 10043)
• Base cabinet with door and shelves (PKB – 10082)
• Base cabinet with 2 shelves (only for bench drilling models without coolant) (PKA – 10083)
• Base cabinet (only for models with intermediate table) (PKC – 10084)
• Cycles counter (for machines with hidroblock) (CC – 10085)
• Fixed intermediate table (MIF – 10087)
• Rotating intermediate table (MIG – 10088)
• Column supplement 200 mm. (SC – 10110)
• Extra price for hydroblock equipment (HB – 10120)
• Coolant equipment (ERB – 91118)
