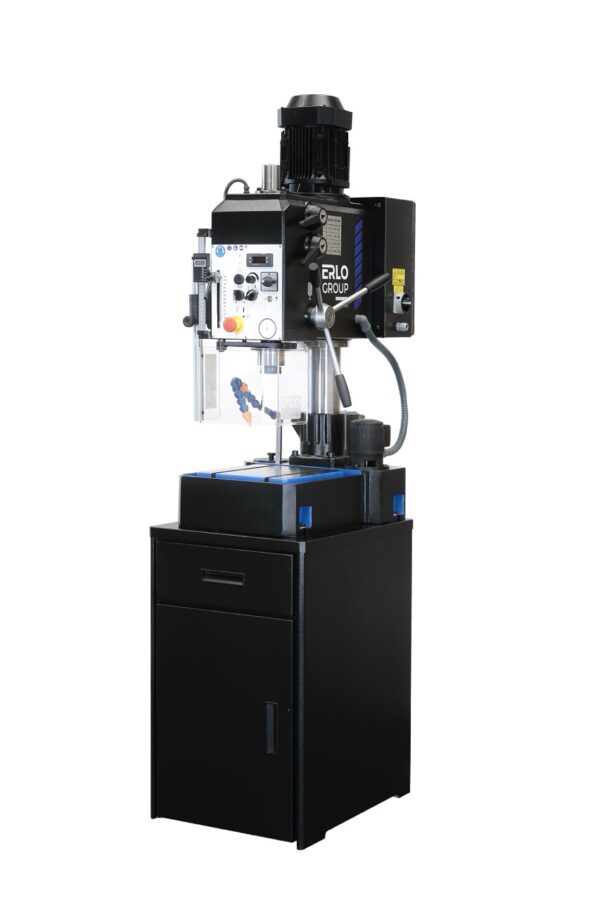

ERLO SE.25 Bench Type Drilling Machine• Gear Driven • Manual Feed
Product Code: SE.25"Discover our exceptional range of Bench Type Drilling Machines, designed to deliver unmatched performance and precision in your drilling operations. We offer distinct models to meet your specific requirements, each equipped with advanced features and built to the highest standards of quality.
CE Certified.
Please contact for prices
- Description
- Additional Info
Specifications
- Drilling Capacity (Mild Steel): 25 mm
- Tapping Capacity (Mild Steel): M22
- Transmission: Gear
- Speed number and range (without variator): (8) 65 – 125 – 185 – 365 – 540 – 1.055 – 1.560 – 3.060 rpm
- Speed number and range (with variator): Variable: A) 45-125 B) 125-370 C) 380-1070 D) 1100-3100 rpm
- Feed: Manual
- Number and range of feeds: –
- Main motor power (without variator) motor 1500/3000 rpm.: 0.8/1.1 kW
- Main motor power (with variator) motor 1500 rpm.: 1.4 kW
- Spindle cone: MT3
- Spindle stroke: 120 mm
- Spindle stroke with hydro block (series se): 90 mm
- Distance spindle-column: 250 mm
- Distance spindle-table (models without coolant): Min 155 / Max 485 mm
- Distance spindle-table (models with coolant): Min 225 / Max 555 mm
- Column diameter: Ø100 mm
- Dimensions of the table/base (without coolant): 270 x 270 mm
- Dimensions of the table/base (with coolant): 316 x 288 mm
- Table/base with “t” slots: YES
- Adjustable depth end: YES
- Lighting equipment: YES
- Tool ejector: YES
- Motor guard and emergency push button: YES
- Turning sense selector: YES
- Main switch: YES
- Electrical equipment at low voltage: YES
- Electrical equipment in a separate cabinet: YES
- Drill guard with stop micro: YES
- CE Certified: YES
- Weight: net / gross kg. with base cabinet: 240 / 260 Kg
- Shipping Dimensions: 2.25 x 0.6 x 0.8 / 1.08 m3
Manual Feed for Models SE
- Geared drive
- Fixed Table
- Rotating Headstock
- GEARS (Hardened and grounded)
- Table & Base with DIN-650 T-Slots
- Adjustable depth
- Lighting equipment
- Tool ejector
- Motor guard and emergency push button
- Turning sense selector
- Main switch
- Electrical equipment at low voltage
- Electrical equipment in a separate cabinet
- Drill Guard with Micro-Switch
- CE Certified
Optional Equipment
-
-
- Frontal wheel for fine sensitive feed (only for se serie) (V – 10020)
- Depth digital reader (LBC – 10022)
- Extra price for electronic variator with speed digital viewer (VE +TAK – 10023)
- Manual tapping system ir/rs (IR/RS – 10042)
- Manual tapping system ir/rs (for models with variator) (IR/RS (VE) – 10043)
- Base cabinet with door and shelves (PKB – 10082)
- Base cabinet with 2 shelves (only for bench drilling models without coolant) (PKA – 10083)
- Base cabinet (only for models with intermediate table) (PKC – 10084)
- Cycles counter (for machines with hidroblock) (CC – 10085)
- Fixed intermediate table (MIF – 10087)
- Rotating intermediate table (MIG – 10088)
- Column supplement 200 mm. (SC – 10110)
- Extra price for hydroblock equipment (only for se models) (HB – 10120)
- Extra price for 750/1500 rpm. motor (MOTOR – 81000)
- Coolant equipment – ser-sear (ERB – 91118)
-
Erlo: Tradition and Innovation in Drilling and Tapping Machines
Erlo is a leading manufacturer of drilling and tapping machines, with over 50 years of experience in the industry. ERLO is known for reliable and durable machines, which are made with high-quality materials and components. ERLO’s machines are also easy to use and maintain, making them a good choice for machinists and metal fabricators of all levels of experience.
In addition to the standard range of drilling and tapping machines, also offered are customized solutions for specific applications are designed with a deep understanding of the custoer’s needs and the machine designs meet those needs perfectly.
It is the belief that tradition and innovation go hand-in-hand and ERLO has a committment to providing their customers with the latest technology and also value the traditional values of craftsmanship and quality.
If you are looking for a reliable and innovative drilling and tapping machine, Erlo is the perfect choice for you. Contact us today to learn more about our products and services.
ERLO products are proudly sold by The Workshop Press Company UK based in Kenilworth, Warwickshire.
