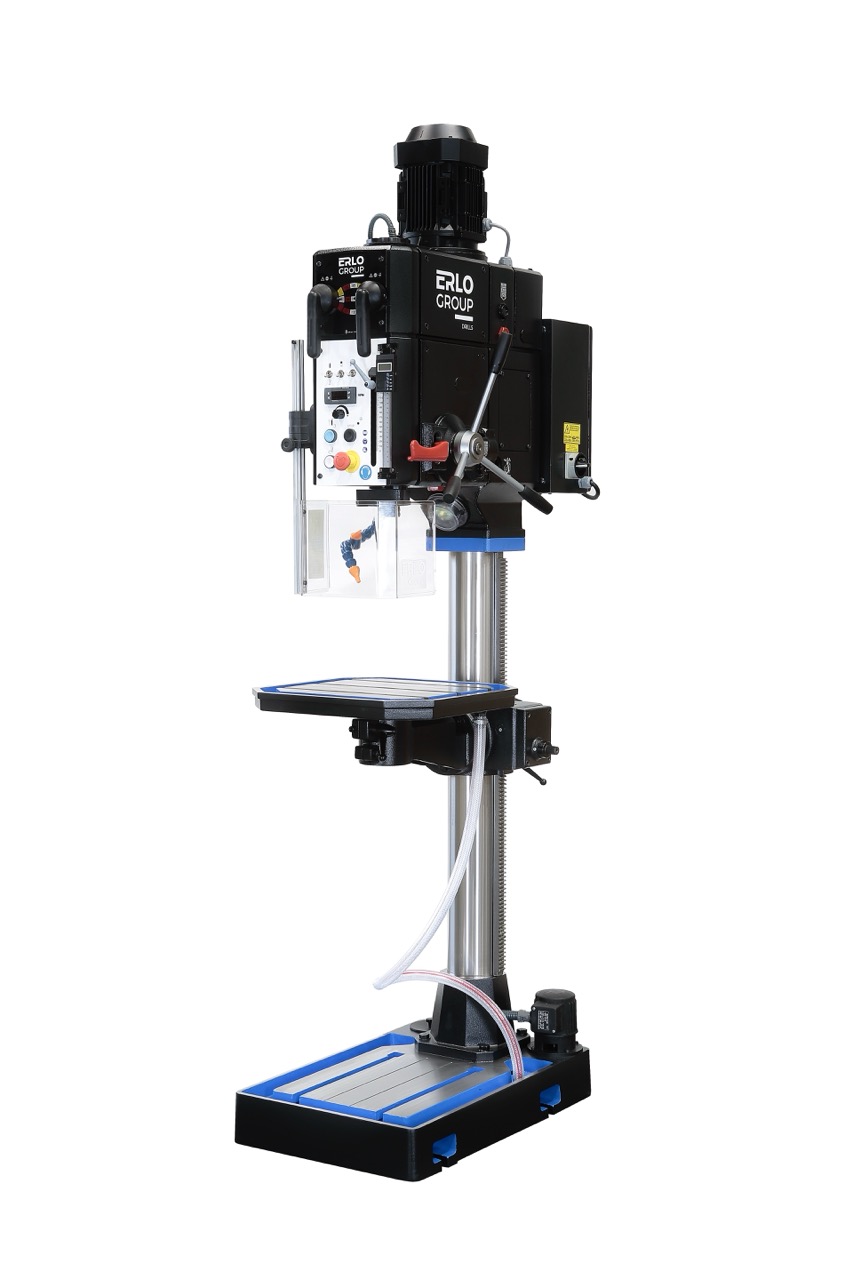

ERLO X Series gear driven production drilling machine with sliding table and fixed headstock

ERLO X Series drilling machine controls, features and optional equipment overview

ERLO X Series gear driven drilling machine headstock and control panel

SX.35 Production Drilling Machine • 35mm Capacity • Gear Driven Manual Feed

Name: SX.35 Drilling Machine • 35mm Gear-Driven • Manual Feed
SKU: 06320000

Please contact for prices

The ERLO SX.35 is a 35 mm capacity production drilling machine designed for precision drilling and tapping operations in industrial workshops and manufacturing environments. Featuring manual feed operation, gear transmission, a sliding table with fixed headstock design, and robust cast iron construction, it delivers accuracy, durability and reliable performance for demanding production applications.

Choosing the Right X Series
SX Series – Manual Feed + Manual Drilling & Tapping Operations
AX Series – Auto Feed / Tapping Cycle + Mechanical Clutch
BX Series – Auto Feed / Tapping Cycle + Electromagnetic Clutch

Request Quote

Download Specification Sheet

Description
Additional information

The ERLO SX.35 is a 35 mm gear driven production drilling machine featuring manual feed operation, M24 tapping capability, MT4 spindle taper and industrial cast iron construction for precision drilling applications.

Specifications

Description: Production Drilling Machine
Table: Fixed Column Adjustable
Table Size: 400 × 420 mm
Floor / Bench: Floor
Drilling Feed: Manual
Tapping Feed: Manual
Drive: Gear Driven
Clutch: Not Applicable
Headstock: Fixed
Weight: 385 kg
Lighting: Yes
Coolant: Optional
Drilling Capacity: Ø35 mm
Tapping Capacity: M24
Speeds: 9
Motor: 1.5 kW
Taper: MT4
Stroke: 150 mm
Column Diameter: Ø125 mm
Throat Depth: 300 mm
Spindle to Table Max: 890 mm

Features

Gear driven transmission with hardened and ground steel gears
Manual drilling and tapping operation
Fixed headstock with sliding table design
Heavy-duty cast iron head, base and column construction
Front-mounted speed selection controls
9 spindle speeds
Automatic gear lubrication pump
Integrated machine lighting
Low-voltage electrical equipment with separate electrical cabinet
Emergency stop and drill guard with safety microswitch

Optional Equipment

LBC – Digital Depth Reader
VE + TAK – Electronic Speed Variator with Digital Speed Reader
IR/RS – Automatic Rotation Inversion for Manual Tapping
MGI – Tilting Rotary Table
MGM – Reversible Tilting Rotary Table with Vice
RHP – Automatic Tapping System with Standard Spindle (Includes One Thread Pitch)
HB – Automatic Hydroblock Cycle
SC – 200mm Column Supplement
ERB – Cooling Equipment in Base

Pillar Drill Frequently Asked Questions

Find answers to common questions about drilling capacity, tapping, spindle tapers, drive systems, machine selection, installation and servicing.

View Pillar Drill FAQs

The ERLO SX.35 is a heavy-duty industrial geared pillar drill designed for production drilling operations. Featuring automatic electromagnetic clutch feed, hardened and ground steel gears, and robust cast iron construction, it delivers reliable performance, excellent rigidity, and long service life in demanding workshop and manufacturing environments.

Dimensional drawing showing overall machine dimensions, table sizes, throat depth, column diameter and base footprint for ERLO SX.35, AX.35, BX.35, SX.40, AX.40 and BX.40 geared pillar drills.

ERLO BX.35 / AX.35 / SX.35 and BX.40 / AX.40 / SX.40 dimensional drawing.
