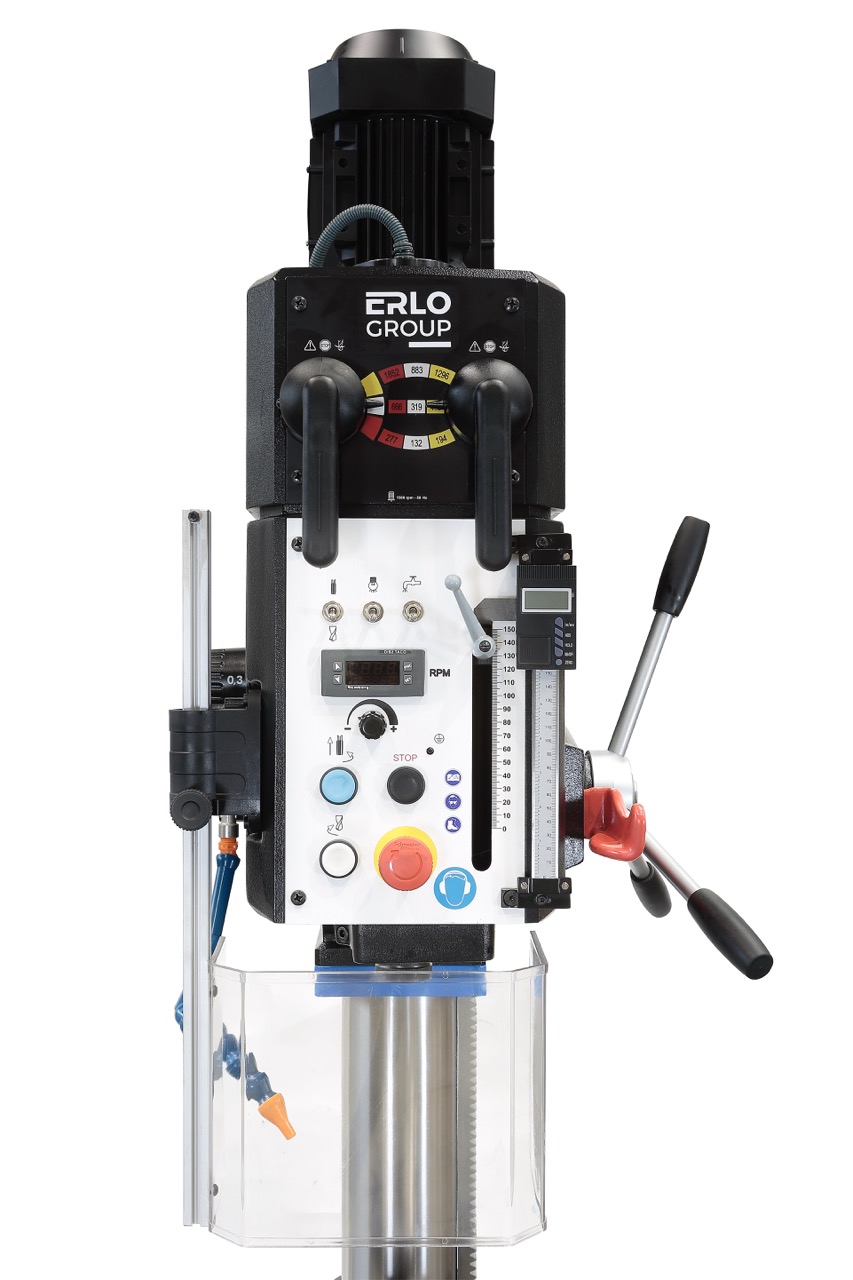

ERLO X Series gear driven drilling machine headstock and control panel

SX.40 Production Drilling Machine • 40mm Capacity • Gear Driven Manual Feed

SKU: ERLO-SX40 Categories: , , , , Tags: , , , , , , , , , , , , , , ,

Please contact for prices

The ERLO SX.40 is a 40 mm capacity production drilling machine designed for precision drilling and tapping operations in industrial workshops and manufacturing environments. Featuring manual feed operation, gear transmission, a sliding table with fixed headstock design, and robust cast iron construction, it delivers accuracy, durability and reliable performance for demanding production applications.

Choosing the Right X Series
SX Series – Manual Feed + Manual Drilling & Tapping Operations
AX Series – Auto Feed / Tapping Cycle + Mechanical Clutch
BX Series – Auto Feed / Tapping Cycle + Electromagnetic Clutch

Request Quote

    Download Specification Sheet

    The ERLO SX.40 is a 40 mm gear driven production drilling machine featuring manual feed operation, M33 tapping capability and MT4 spindle taper for industrial drilling and tapping applications.

    Specifications

    • Description: Production Drilling Machine
    • Table: Tilting Rotary
    • Table Size: 480 × 480 mm
    • Floor / Bench: Floor
    • Drilling Feed: Manual
    • Tapping Feed: Manual
    • Drive: Gear Driven
    • Clutch: Not Applicable
    • Headstock: Fixed
    • Weight: 475 kg
    • Lighting: Yes
    • Coolant: Yes
    • Drilling Capacity: Ø40 mm
    • Tapping Capacity: M33
    • Speeds: 9
    • Motor: 2.2 kW
    • Taper: MT4
    • Stroke: 175 mm
    • Column Diameter: Ø150 mm
    • Throat Depth: 350 mm
    • Spindle to Table Max: 880 mm

    Features

    • Gear driven transmission with hardened and ground steel gears
    • Manual drilling and tapping operation
    • Fixed headstock with sliding table design
    • Heavy-duty cast iron head, base and column construction
    • Front-mounted speed selection controls
    • 9 spindle speeds
    • Automatic gear lubrication pump
    • Integrated cooling system
    • Integrated machine lighting
    • Low-voltage electrical equipment with separate electrical cabinet

    Optional Equipment

    • LBC – Digital Depth Reader
    • VE + TAK – Electronic Speed Variator with Digital Speed Reader
    • IR/RS – Automatic Rotation Inversion for Manual Tapping
    • RHP – Automatic Tapping System with Standard Spindle (Includes One Thread Pitch)
    • HB – Automatic Hydroblock Cycle
    • SC – 200mm Column Supplement

    Pillar Drill Frequently Asked Questions

    Find answers to common questions about drilling capacity, tapping, spindle tapers, drive systems, machine selection, installation and servicing.

    View Pillar Drill FAQs

    The ERLO SX.40 is a heavy-duty industrial geared pillar drill designed for production drilling operations. Featuring automatic electromagnetic clutch feed, hardened and ground steel gears, and robust cast iron construction, it delivers reliable performance, excellent rigidity, and long service life in demanding workshop and manufacturing environments.

    Dimensional drawing showing overall machine dimensions, table sizes, throat depth, column diameter and base footprint for ERLO SX.35, AX.35, BX.35, SX.40, AX.40 and BX.40 geared pillar drills.

    ERLO BX.35 / AX.35 / SX.35 and BX.40 / AX.40 / SX.40 dimensional drawing.
