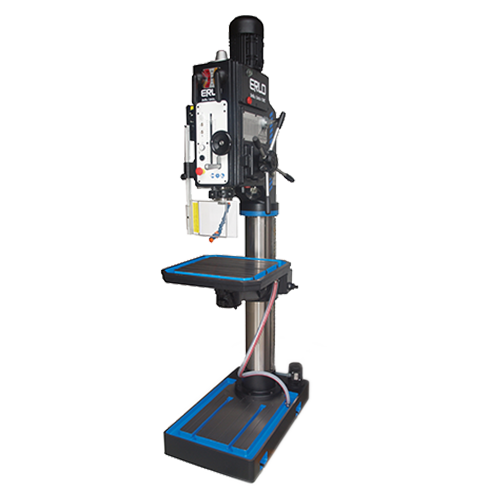

ERLO TCA.40 Pillar Drill • Gear Driven • Automatic Feed • 40 mm Drilling • 33 mm Tapping

Product Code: TCA.40

"Discover our exceptional range of Round Column Pillar Drilling Machines, designed to deliver unmatched performance and precision in your drilling operations. We offer six distinct models to meet your specific requirements, each equipped with advanced features and built to the highest standards of quality.

Introducing our 40 to 70 mm Drill of Round Column Mechanical Automatic Feed, a powerhouse that combines efficiency and versatility to elevate your drilling capabilities. With its mechanical automatic feed system, you can effortlessly maintain a steady and consistent drilling pace, saving you time and effort.

The robust transmission gears ensure optimal power transmission, allowing for smooth and precise drilling operations.

Experience enhanced flexibility with the moveable table and fixed bit, allowing you to position your materials precisely and securely.

Please contact for prices

    • Description
    • Additional Info


    • Drilling capacity (mild steel): 40 mm
    • Tapping capacity (mild steel): M33
    • Transmission: Gear
    • Speed number and range (without variator): (9) 61-85-123-191-269-390-574-806 -1169 rpm
    • Feed: Automatic
    • Speed number and range: (4) 0,10-0,20-0,30-0,40
    • Clutch: Electro-Magnetic
    • Main motor power, motor 1500 rpm: 3 HP
    • Spindle cone: MT4
    • Spindle stroke: 200 mm
    • Distance spindle to column: 360 mm
    • Distance spindle to table: Min 35 / Max 835
    • Distance spindle to base: 1240 mm
    • Column diameter: 175 mm
    • Dimensions of the table with 3 T-Slots: 550 x 550 mm
    • Dimensions of the base with T-Slots: 950 x 550 mm
    • CE Certified: Yes
    • Weight: net / gross kg.: 610 /695
    • Packaging dimensions and volume: 2500 x 600 x 1200 mm


    • Automatic Feed
    • Mechanical Clutch
    • Gear Driven
    • Gears are (Hardened and Ground
    • Fixed Headstock
    • Hardened and high quality steel gears
    • Speed plate and selecting levers on head
    • Gear box lubrication by automatic pumps
    • Machine base with coolant tank and pump
    • Worklight
    • Rotating and tilting table
    • Automatic feed and cutoff by mechanic clutch (TCA) and by electromagnetic clutch (TCE)
    • Frontal wheel for fine sensitive feed
    • Depth scale and adjustable depth stop
    • Automatic tool ejector
    • Electric equipment integrated on machine’s head
    • Emergency stop push button
    • Spindle reversing switch
    • Drill Guard with Micro-Switch
    • CE Certified

    Optional Equipment

    • Manual tapping system ir/rs (IR/RS – 10042)
    • Manual tapping system ir/rs (for models with variator) (IR/RS (VE) – 10043)
    • Automatic tapping system by lead screw (includes one tapping pitch) (RPF – 30070)
    • Reduced feeds (50% standard range) (AR – 40039)
    • Column supplement 200 mm. (SC – 40070)
    • Extra price for speed electronic variator (VE – 40045)
    • Speeds digital reader (for models with variator) (TAK – 40047)
    • Depth digital reader (LBC – 10022)
    • Rapid approach and return with pneumatic counterweight (for tce serie) (ACNL – 40100)
    • Integral cycle with encoder (for tce serie) (CI – 40110)

    Erlo: Tradition and Innovation in Drilling and Tapping Machines

    Erlo is a leading manufacturer of drilling and tapping machines, with over 50 years of experience in the industry. ERLO is known for reliable and durable machines, which are made with high-quality materials and components. ERLO’s machines are also easy to use and maintain, making them a good choice for machinists and metal fabricators of all levels of experience.

    In addition to the standard range of drilling and tapping machines, also offered are customized solutions for specific applications are designed with a deep understanding of the custoer’s needs and the machine designs meet those needs perfectly.

    It is the belief that tradition and innovation go hand-in-hand and ERLO has a committment to providing their customers with the latest technology and also value the traditional values of craftsmanship and quality.

    If you are looking for a reliable and innovative drilling and tapping machine, Erlo is the perfect choice for you. Contact us today to learn more about our products and services.

    ERLO products are proudly sold by The Workshop Press Company UK based in Kenilworth, Warwickshire.
