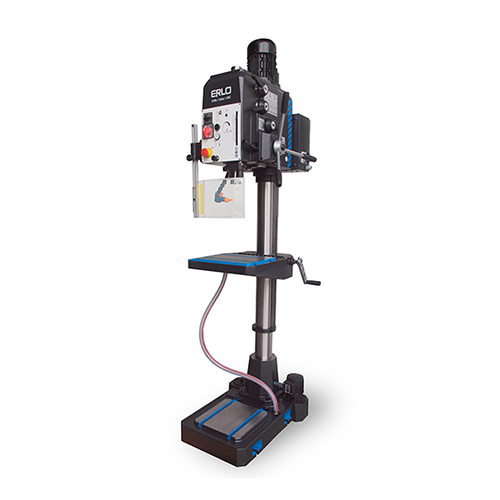

ERLO TSA.30 Pillar Drill • Gear Driven • Automatic Feed • 30 mm Drilling • 25 mm Tapping

Product Code: TSA.30

Introducing the TS SERIES TSA.30 Column Pillar Drill for Industry: Precision, Efficiency, and Safety Combined

Our EU-designed TS SERIES TSA-30 Column Pillar Drill offers unmatched power and versatility. With exceptional features, this robust drill enhances precision and efficiency for all your drilling needs. It boasts a 30 mm drilling capacity and 25 mm tapping capacity, perfect for industrial applications.

Seamless Control, Optimal Results allows the operator to experience effortless control with precise manual feed and gear-driven power transmission. Achieve consistent and accurate results every time you drill.

Flexibility and Precision at Your Fingertips with easy to carry out adjustments such as the drilling angle with the rotating headstock to tackle diverse workpieces. The moveable table allows precise material positioning, while the adjustable depth end ensures controlled drilling depths for superior accuracy and prevention of over-penetration.

Illuminate Your Workspace, Save Time. The pillar drill operator will benefit from the built-in lighting equipment for clear visibility and reduced errors. The tool ejector simplifies drill bit removal, saving you valuable time and effort.

Safety as a Priority

Our pillar drill prioritizes safety with features such as a motor guard, emergency push button, and main switch for quick shutdowns. The turning sense selector enables efficient drilling in both clockwise and counterclockwise directions, enhancing tool versatility. The low-voltage electrical equipment is housed separately, ensuring safe operation and streamlined maintenance. The drill guard with a micro-switch guarantees operator safety by halting drilling when opened.

Stability and Durability Redefined

Designed for stability and durability, our pillar drill features a fixed table that provides a sturdy surface for precise and controlled drilling. CE-certified, it meets stringent European safety standards.

Upgrade Your Drilling Capabilities Today with our feature-rich, reliable, and CE-certified Industrial Column Pillar Drill. Experience enhanced precision, efficiency, and safety for all your drilling endeavors. Trust in our exceptional quality and take your drilling to new heights. Rest assured with the electrical equipment at low voltage, ensuring safe operation and minimizing electrical hazards. Additionally, the electrical equipment is housed in a separate cabinet, streamlining maintenance and reducing the risk of damage. The drill guard with a micro-switch guarantees operator safety, automatically halting the drilling process when the guard is opened.

Designed for stability and durability, the fixed table provides a sturdy surface for your workpieces, allowing for precise and controlled drilling. Our pillar drill for industrial uses is CE certified, meeting stringent European safety standards.

Upgrade your drilling capabilities with our feature-rich, reliable, and CE-certified Pillar Drill for metal. Experience enhanced precision, efficiency, and safety in all your drilling endeavors.

Please contact for prices

    • Description
    • Additional Info

    Technical specifications

    • Drilling capacity (mild steel): 30 mm
    • Tapping capacity (mild steel): M25
    • Transmission: Gear
    • Speed number and range (without variator): (8) 65 – 125 – 185 – 365 – 540 – 1.055 – 1.560 – 3.060 rpm.
    • Speed number and range (with variator): VARIABLE A )45-125 B) 125-370 C) 380-1070 D) 1100-3100 rpm.
    • Feed: Automatic
    • Number and range of feeds: (2) 0,10-0,20
    • Main motor power (without variator) motor 1500/3000 rpm.: 1.5/1.9 HP
    • Main motor power (with variator) motor 1500 rpm.: 2 HP
    • Spindle cone: MT.3
    • Spindle stroke: 120 mm
    • Spindle stroke with hydro block (series ts): –
    • Distance spindle-column: 250 mm
    • Distance spindle-table: Mín 170 / Max 660 mm
    • Distance spindle-base: 1216 mm
    • Column diameter: 100 mm
    • Dimensions of the table (with 2 t slots): 270 x 300 mm
    • Dimensions of the base without t slots (without coolant): 600 x 380 mm
    • Dimensions of the base with t slots (with coolant): 665 x 400 mm
    • CE Certified: Yes
    • Weight: net / gross kg.: 260 / 320 Kg.
    • Packaging dimensions and volume: 2200 x 600 x 900 mm / 1.18 m3


    • Automatic feed
    • Gear Driven
    • Rotating Headstock
    • Moveable Table
    • Adjustable depth end
    • Lighting equipment
    • Tool ejector
    • Motor guard and emergency push button
    • Main switch
    • Turning sense selector
    • Electrical equipment at low voltage
    • Electrical equipment in a separate cabinet
    • Drill Guard with Micro-Switch
    • Fixed table
    • CE Certified

    Optional Equipment

    • Frontal wheel for fine sensitive feed (only for ts serie) (V – 10020)
    • Speed digital reader (for models with electronic variator) (TAK – 10021)
    • Depth digital reader (LBC – 10022)
    • Extra price for electronic variator (VE – 10023)
    • Manual tapping system ir/rs (IR/RS – 10042)
    • Manual tapping system ir/rs (for models with variator) (IR/RS (VE) – 10043)
    • Automatic tapping system by lead screw (includes one tapping pitch) (RHP – 20070)
    • Rotating table (MG – 20082)
    • Cycles counter (for machines with hidroblock) (CC – 10085)
    • Column supplement 200 mm. (SC – 10110)
    • Extra price for hydroblock equipment (only for ts serie) (HB – 10120)
    • Coolant equipment (ERB – 91118)

    Erlo: Tradition and Innovation in Drilling and Tapping Machines

    Erlo is a leading manufacturer of drilling and tapping machines, with over 50 years of experience in the industry. ERLO is known for reliable and durable machines, which are made with high-quality materials and components. ERLO’s machines are also easy to use and maintain, making them a good choice for machinists and metal fabricators of all levels of experience.

    In addition to the standard range of drilling and tapping machines, also offered are customized solutions for specific applications are designed with a deep understanding of the custoer’s needs and the machine designs meet those needs perfectly.

    It is the belief that tradition and innovation go hand-in-hand and ERLO has a committment to providing their customers with the latest technology and also value the traditional values of craftsmanship and quality.

    If you are looking for a reliable and innovative drilling and tapping machine, Erlo is the perfect choice for you. Contact us today to learn more about our products and services.

    ERLO products are proudly sold by The Workshop Press Company UK based in Kenilworth, Warwickshire.
