Sale!

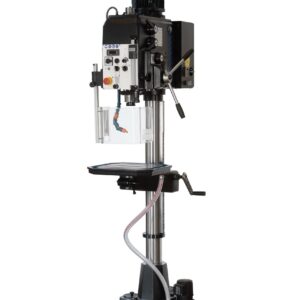

ERLO TSA.32 Pillar Drill • Gear Driven • Automatic Feed • 30 mm Drilling • 25 mm Tapping

Product Code: TSA.32-SO

Introducing our powerful and versatile TS SERIES TSA-32 Column Pillar Drill, meticulously designed and built in the EU by ERLO to enhance precision and efficiency in your drilling tasks. This robust drill is equipped with a wide range of exceptional features to meet all your drilling needs. This Industrial Pillar Drill has a drilling capacity of 32 mm and a tapping capacity of 28 mm.

Experience seamless control with a precise manual feed, allowing you to effortlessly adapt to different drilling requirements. The gear-driven mechanism ensures optimal power transmission, ensuring consistent and accurate results every time.

With a rotating headstock, you can easily adjust the drilling angle to tackle various workpieces with ease. The moveable table offers enhanced flexibility, allowing you to position your materials precisely for precise drilling. The adjustable depth end ensures controlled drilling depths, providing superior accuracy and preventing over-penetration.

Illuminate your workspace effectively with the built-in lighting equipment, providing clear visibility and minimizing errors. The tool ejector simplifies the removal of drill bits, saving you valuable time and effort.

Safety is paramount, and our pillar drill prioritizes it with features such as a motor guard, emergency push button, and a main switch for quick and easy shutdown. The turning sense selector enables efficient drilling in both clockwise and counterclockwise directions, expanding the versatility of this tool.

Rest assured with the electrical equipment at low voltage, ensuring safe operation and minimizing electrical hazards. Additionally, the electrical equipment is housed in a separate cabinet, streamlining maintenance and reducing the risk of damage. The drill guard with a micro-switch guarantees operator safety, automatically halting the drilling process when the guard is opened.

Designed for stability and durability, the fixed table provides a sturdy surface for your workpieces, allowing for precise and controlled drilling. Our pillar drill proudly bears the CE certification, meeting stringent European safety standards.

Upgrade your drilling capabilities with our feature-rich, reliable, and CE-certified Column Pillar Drill. Experience enhanced precision, efficiency, and safety in all your drilling endeavors.

Original price was: £9,540.00.Current price is: £6,675.00. (£6,675.00 ex VAT)

    • Description
    • Additional Info

    Technical specifications

    • Series TSA & TSE – Column Pillar Drills Model:
      TSA.32
    • Drilling capacity (mild steel):
      32
    • Tapping capacity (mild steel):
      M28
    • Transmission:
      Gear
    • Speed number and range (without variator):
      (8) 75 – 150 – 235 – 325 – 470 – 650 – 1.050 – 2.100 rpm.
    • Speed number and range (with variator):
      Variable: A) 75 -175 B) 240 – 570 C) 330 – 780 D) 1060 – 2500 rpm
    • Feed:
      Automatic
    • Number and range of feeds:
      (3) 0,10-0,20-0,30
    • Clutch:
      (3) 0,10-0,20-0,30
    • Main motor power (without variator) motor 750/1500 rpm:
      1 / 1 / 5 HP
    • Main motor power (with variator) motor 1500 rpm:
      2 HP
    • Spindle cone:
      MT4
    • Spindle stroke:
      160 mm
    • Distance spindle-column:
      300 mm
    • Distance spindle-table:
      Min 70 / Max 885
    • Distance spindle-base:
      1245 mm
    • Column diameter:
      125 mm
    • Dimensions of the table with 3 t slots:
      400 x 420 mm
    • Dimensions of the base without t slots (without coolant):
      400 x 655 mm
    • Dimensions of the base with t slots (with coolant):
      492 x 655 mm
    • CE Certified:
      Yes
    • Weight: net / gross kg:
      300 / 400 Kg
    • Packaging dimensions and volume:
      2370 x 600 x 960 mm

    Features

    • Gear Driven
    • Fixed Headstock
    • Gears are Hardend and Ground
    • Adjustable depth end
    • Lighting equipment
    • Tool ejector
    • Motor guard and emergency push button
    • Main switch
    • Turning sense selector
    • Electrical equipment at low voltage
    • Electrical equipment in a separate cabinet
    • Drill Guard with Micro-Switch
    • Fixed table
    • CE Certified

    Optional Equipment

    • Frontal wheel for fine sensitive feed (V – 10020)
    • Extra price for speeds electronic variator (VE – 10021)
    • Speeds digital reader (for models with variator) (TAK – 10022)
    • Depth digital reader (LBC – 10023)
    • Manual tapping system ir/rs (IR/RS – 10042)
    • Manual tapping system ir/rs (for models with variator) (IR/RS (VE) – 10043)
    • Automatic tapping system by lead screw (includes one tapping pitch) (RPF – 20070)
    • Rotating and tilting table (MGI – 30084)
    • Reversible rotating table with vice (MGM – 20087)
    • Column supplement 200 mm. (SC – 10110)
    • Rapid approach and return with pneumatic counterweight (for tse serie) (ACNL – 30140)
    • Integral tubes drilling cycle/profiles and intermittances (for tse serie) (CI – 30145)
    • Coolant equipment in the base (ERB – 91118)


    Precision meets performance in our Thumbnail picture of ERLO Drill and Tap Machine lineup. Discover your perfect metal fabrication partner today.

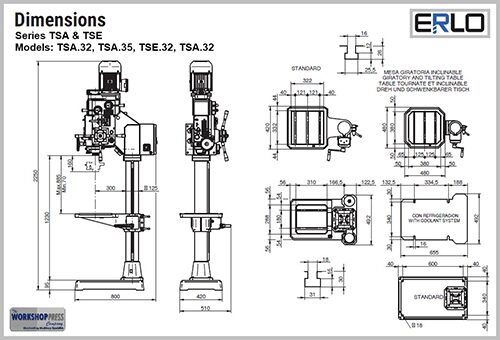

    ERLO Industrial Pillar Drills Spec. Chart
