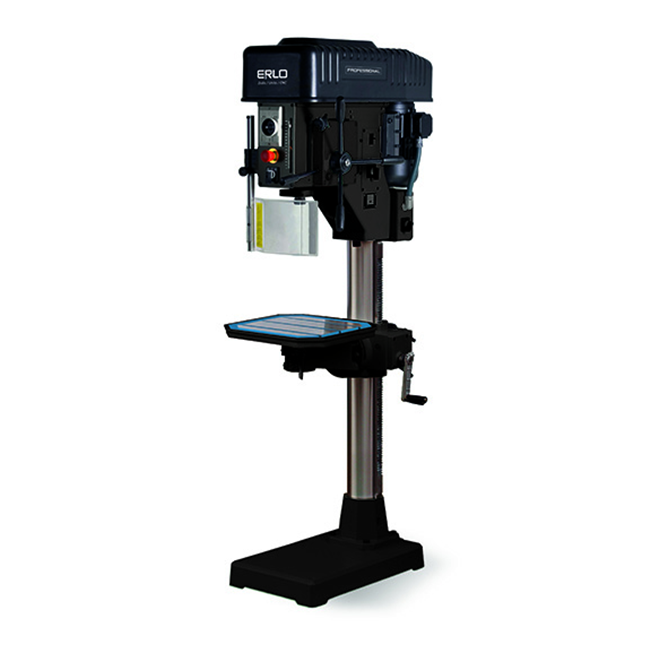

ERLO V.35 Professional Pillar Drill • V-Belt • Manual Feed • 35 mm Drilling • 27 mm Tapping
Product Code: V.35"Discover our exceptional range of Professional Pillar Drilling Machines, designed to deliver unmatched performance and precision in your drilling operations. We offer distinct models to meet your specific requirements, each equipped with advanced features and built to the highest standards of quality.
Introducing our 32 to 40-mm Drill of Professional Manual Feed
Please contact for prices
- Description
- Additional Info
Specifications
- Drilling capacity (mild steel): 35 mm
- Tapping capacity (mild steel): M27
- Transmission: V-Belt
- Speed number and range 50 hz.: Variable 100-2000 rpm.
- Feed: Manual
- Main motor power – 750/1500 rpm.: 4 HP
- Spindle cone: MT4
- Spindle stroke: 150 mm
- Distance spindle to column: 300 mm
- Distance spindle to table: Min 90 mm/ Max 890 mm
- Distance spindle to base: 1250 mm.
- Column diameter: 125 mm.
- Dimensions of the table (with 2 t slots): 400 x 420 mm.
- Dimensions of the base without t slots (without coolant): 400 x 655 mm
- Dimensions of the base with 2 t slots (with coolant): 492 x 655 mm
- CE Certified: Yes
- Weight: net / gross kg.: 345 / 395 Kg
- Packaging dimensions and volume: 2300 x 600 x 1100 m – 1.5 m3
Features
- Moveable Table
- Fixed Headstock
- Adjustable depth
- Tool ejector
- Belt cover with stop micro
- Emergency push button
- Turning sense selector
- Electrical equipment at low voltage
- Drill guard with stop micro
- Fixed table
- CE norms
Optional Equipment
- Lighting equipment (L – 20010)
- Manual tapping system ir/rs (IR/RS – 10042)
- Rotating table (for serie v.32) (MG – 20082)
- Rotating and tilting table (for series v.40 and vp.40) (MGI – 30084)
- Reversible rotating table with vice (for series v.40 and vp.40) (MGM – 20087)
- Coolant equipment in the base (ERB – 91118)
