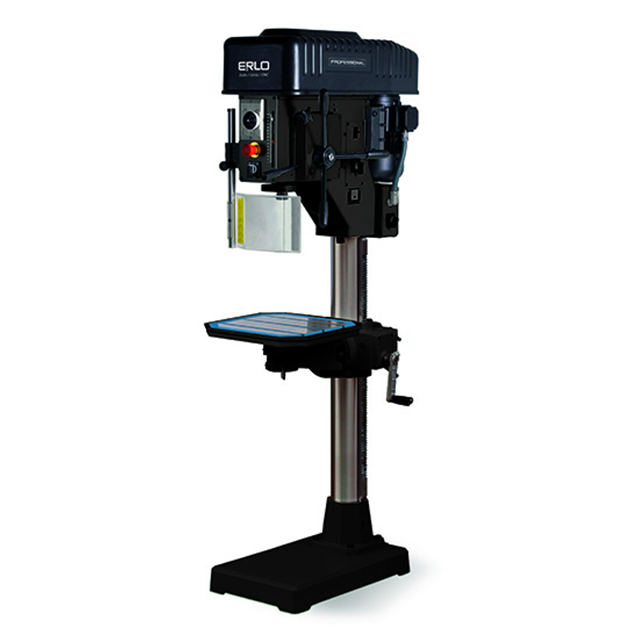

ERLO VP.40 Professional Pillar Drill • V-Belt • Manual Feed • 40 mm Drilling • 32 mm Tapping

Product Code: VP.40

The ERLO VP-40 Professional Pillar Drill Industry is a versatile and powerful drill that is ideal for a variety of industrial applications. It features a V-belt drive for smooth and precise operation, a manual feed for accurate control, and a maximum drilling capacity of 40 mm. It also has a number of safety features, such as a spindle lock and a reversing switch.

The ERLO VP-40 is a sturdy and reliable metal drill that is built to last. It is made from high-quality materials and features a number of features that make it easy to use and maintain.

Some of the key benefits of the ERLO VP-40 Professional Industrial Pillar Drill are its V-belt drive for smooth and precise metal drilling operations, a manual feed for precise control, a maximum drilling capacity of 40 mm, a variety of integrated safety features, its sturdy and reliable construction, its ease of use and maintainability.

Soem of the key specifications are a drilling capacity of 40 mm, a tapping capacity of 32 mm, a speed range of 80-1170 rpm, a feed rate of 0.10 to 0.20 mm per revolution, a robust motor with 1.8 or 3.2 hp, a compact footprint of 655 x 400, a height of 1960 mm, and it weighs a hefty 260 kg.

Optional Equipment and accessories are aviailable, so please enquire.

If you are looking for a versatile and powerful pillar drill that is built to last, the ERLO VP-40 Professional Pillar Drill is a great option. It is a reliable and durable drill that is easy to use and maintain.

Please contact for prices

    • Description
    • Additional Info


    • Drilling capacity (mild steel): 40 mm
    • Tapping capacity (mild steel): M32
    • Transmission: Belt Variator
    • Speed number and range 50 hz.: 80 – 1170 rpm.
    • Feed: Automatic
    • Number and feed number: (2) 0,10-0,20
    • Clutch: Mechanical
    • Main motor power: 1.8/3.2 HP
    • Main motor RPM: 750/1500
    • Spindle cone: MT4
    • Spindle stroke: 190 mm
    • Distance spindle-column: 300 mm
    • Distance spindle-table: Min. 150 / Max. 950 mm
    • Distance spindle-base: 1310 mm
    • Column diameter: 125 mm
    • Dimensions of the table (with 2 T-Slots): 400 x 420 mm
    • Dimensions of the base without T-Slots (without coolant): 400 x 655 mm
    • Dimensions of the base with 2 T-Slots (with coolant): 492 x 655 mm
    • CE Certified: Yes
    • Weight: 260 Kg
    • Weight: 320 Kg
    • Packaging dimensions and volume: 1.45 m3


    • Moveable Table
    • Fixed Headstock
    • Adjustable depth
    • Tool ejector
    • Belt cover with stop micro
    • Emergency push button
    • Turning sense selector
    • Electrical equipment at low voltage
    • Drill guard with stop micro
    • Fixed table
    • CE norms

    Optional Equipment

    • Lighting equipment (L – 20010)
    • Manual tapping system ir/rs (IR/RS – 10042)
    • Rotating table (for serie v.32) (MG – 20082)
    • Rotating and tilting table (for series v.40 and vp.40) (MGI – 30084)
    • Reversible rotating table with vice (for series v.40 and vp.40) (MGM – 20087)
    • Coolant equipment in the base (ERB – 91118)

    Erlo: Tradition and Innovation in Drilling and Tapping Machines

    Erlo is a leading manufacturer of drilling and tapping machines, with over 50 years of experience in the industry. ERLO is known for reliable and durable machines, which are made with high-quality materials and components. ERLO’s machines are also easy to use and maintain, making them a good choice for machinists and metal fabricators of all levels of experience.

    In addition to the standard range of drilling and tapping machines, also offered are customized solutions for specific applications are designed with a deep understanding of the custoer’s needs and the machine designs meet those needs perfectly.

    It is the belief that tradition and innovation go hand-in-hand and ERLO has a committment to providing their customers with the latest technology and also value the traditional values of craftsmanship and quality.

    If you are looking for a reliable and innovative drilling and tapping machine, Erlo is the perfect choice for you. Contact us today to learn more about our products and services.

    ERLO products are proudly sold by The Workshop Press Company UK based in Kenilworth, Warwickshire.
