Scantool Motorized Bending Roller EBR 2050-1

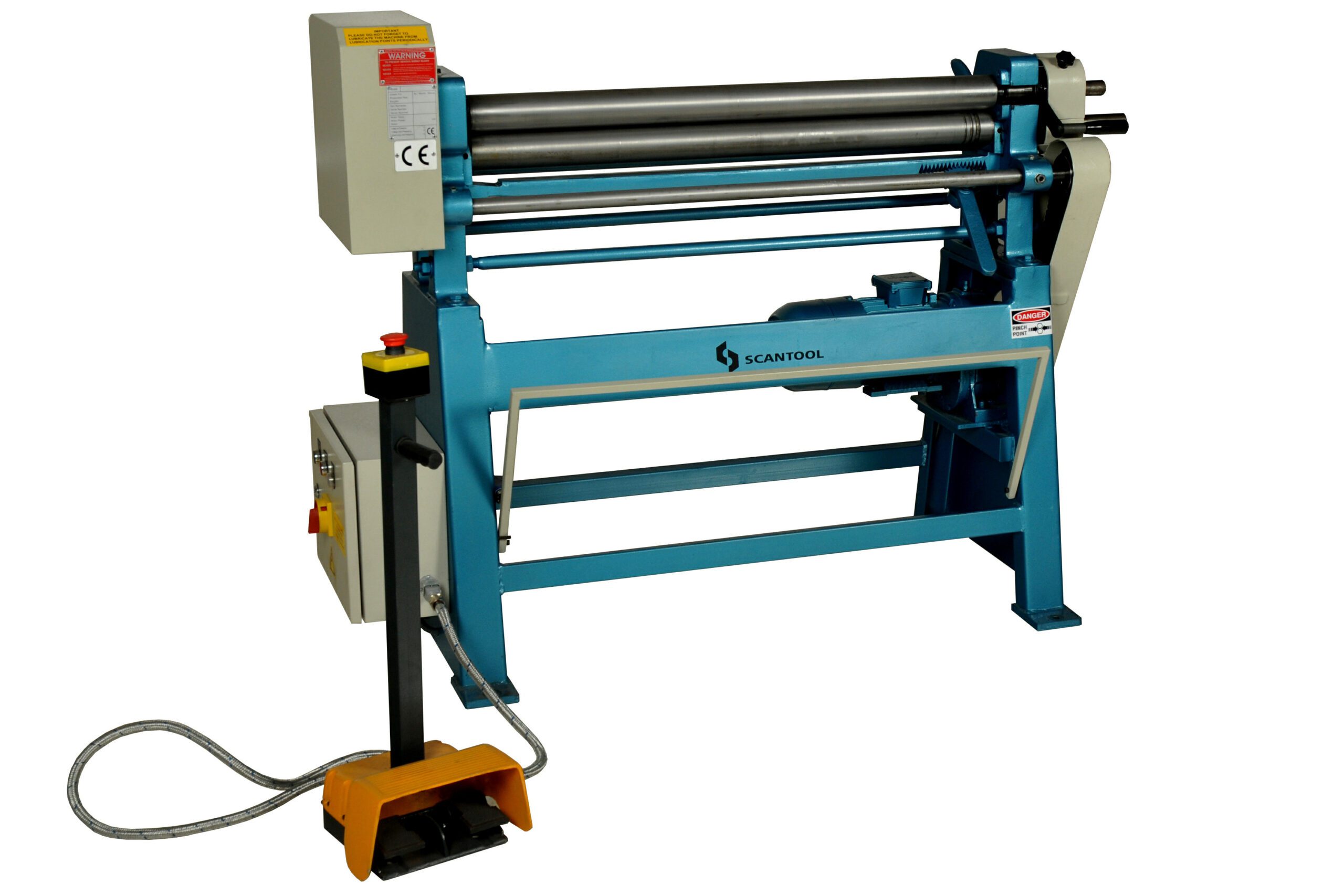

Motorized Bending Roller EBR 2050 x 1.0 • Scantool 500717006 - Image 2

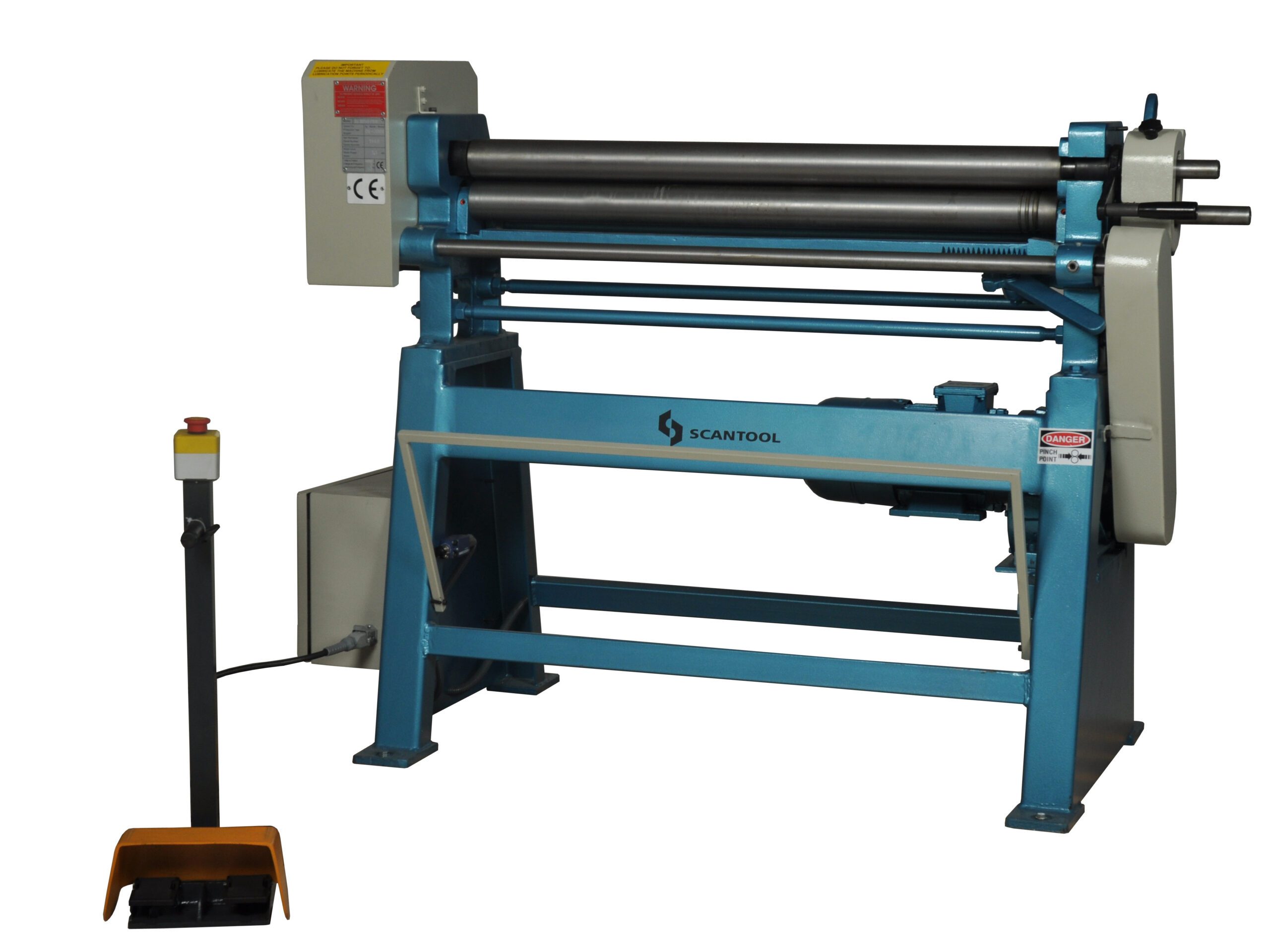

Motorized Bending Roller EBR 2050 x 1.0 • Scantool 500717006

SKU: 500717006 Category: Tags: , , , , , , , , , ,

Please contact for prices

The EBR 2050 x 1.0 is engineered for efficient bending of aluminum and other materials, boasting a 2050 mm working length. This machine features cast iron main frames and motor-powered centralized rollers for smooth and accurate bending. It includes SAE 1050 quality steel rollers and a mobile control panel, meeting EU safety standards for dependable operation in various industrial settings.

Request Quote

    Download Specification Sheet

    The EBR 2050 x 1.0 Motorised Bending Roller is an asymmetrical three-roller machine designed for light to medium bending tasks. Ideal for aluminum and ventilation applications, this model offers a robust and versatile solution at an attractive price. With cast iron frames and high-strength SAE 1050 steel rollers, it delivers reliable performance and ease of use.

    Technical Specifications

    • Capacity: 2050 x 1.0 mm
    • Sheet Thickness: 1.0 mm
    • Working Length: 2050 mm
    • Voltage: 3x400V-50/60Hz
    • Motor: 2.0 HP (1.5 kW)
    • Min. Bending Diameter: 143 mm
    • Roller Diameter: 95 mm
    • Roller Speed: 7 m/min
    • Dimensions (L x W x H):
      2650 x 750 x 1200 mm
    • Net Weight: 780 kg

    Features

    • Cast iron main frames
    • Main motor with brake
    • Rotatable top roller
    • Motor-powered centralized rollers
    • Wired grooves
    • Mobile control panel
    • Built according to EU safety directives
    • Rollers of SAE 1050 quality steel with high tensile strength



    Industries and Uses

    • Ventilation Industry: Ideal for fabricating ventilation components and ducts.
    • Aluminum Fabrication: Suitable for bending aluminum sheets up to 1.0 mm thick.
    • Sheet Metal Workshops: Effective for various sheet metal bending tasks.
    • Automotive Sector: Useful for producing custom metal parts and brackets.
    • Construction: Ideal for bending structural metal components and supports.

    FAQ button for all product categories offered by The Workshop Press Company UK

    Slip/Plate Roll FAQs

    Click HERE

    Motorised bending roller EBR 2050 x 1.0, suitable for light to medium jobs, featuring cast iron frames, motor-powered rollers, and precise bending capabilities.
