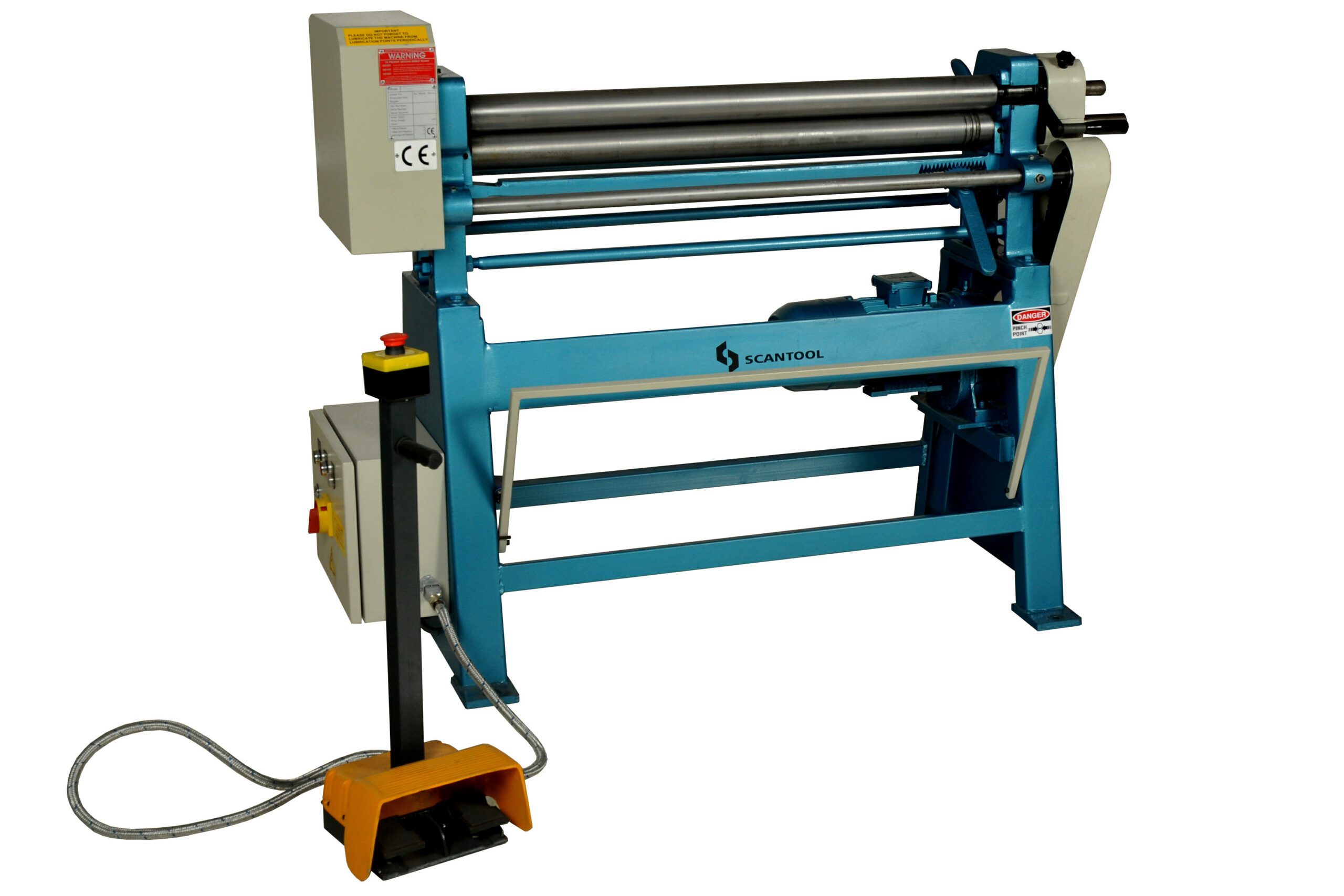

Scantool Motorized Bending Roller EBR 1270-1.5
Motorized Bending Roller EBR 1270 x 1.5 • Scantool 500717004 - Image 2

Motorized Bending Roller EBR 1270 x 1.5 • Scantool 500717004

SKU: 500717004 Category: Tags: , , ,

Please contact for prices

The EBR 1270 x 1.5 is designed for efficient bending of aluminum and other materials, featuring a 1270 mm working length. This machine boasts cast iron main frames and motor-powered centralized rollers, providing smooth and accurate bending. With SAE 1050 quality steel rollers and a mobile control panel, it adheres to EU safety standards and offers reliability in various industrial applications

Request Quote

    Download Specification Sheet

    Motorised bending roller EBR 1270 x 1.5, suitable for light to medium jobs, featuring cast iron frames, motor-powered rollers, and precise bending capabilities.

    Technical Specifications

    • Capacity: 1270 x 1.5 mm
    • Sheet Thickness: 1.5 mm
    • Working Length: 1270 mm
    • Voltage: 3x400V-50/60Hz
    • Motor: 2.0 HP (1.5 kW)
    • Min. Bending Diameter: 113 mm
    • Roller Diameter: 75 mm
    • Roller Speed: 6 m/min
    • Dimensions (L x W x H):
      2250 x 750 x 1200 mm
    • Net Weight: 385 kg

    Features

    • Cast iron main frames
    • Main motor with brake
    • Rotatable top roller
    • Motor-powered centralized rollers
    • Wired grooves
    • Mobile control panel
    • Built according to EU safety directives
    • Rollers of SAE 1050 quality steel with high tensile strength



    Industries and Uses

    • Ventilation Industry: Ideal for fabricating larger ducts and ventilation components.
    • Aluminum Fabrication: Suitable for bending aluminum sheets and profiles up to 1.5 mm thick.
    • Sheet Metal Workshops: Effective for a variety of sheet metal bending tasks.
    • Automotive Sector: Useful for producing custom metal parts and brackets.
    • Construction: Ideal for bending structural metal components and supports.
