Motorized Bending Roller EBR 1050-3.0
Motorized Bending Roller EBR 1050 x 3.0 • Scantool 500717003 - Image 2
Motorized Bending Roller EBR 1050 x 3.0 • Scantool 500717003 - Image 3
Motorized Bending Roller EBR 1050 x 3.0 • Scantool 500717003 - Image 4
Motorized Bending Roller EBR 1050 x 3.0 • Scantool 500717003 - Image 5
Motorized Bending Roller EBR 1050 x 3.0 • Scantool 500717003 - Image 6
Motorized Bending Roller EBR 1050 x 3.0 • Scantool 500717003 - Image 7

Motorized Bending Roller EBR 1050 x 3.0 • Scantool 500717003

SKU: 500717003 Category: Tags: , , , , , , , , ,

Please contact for prices

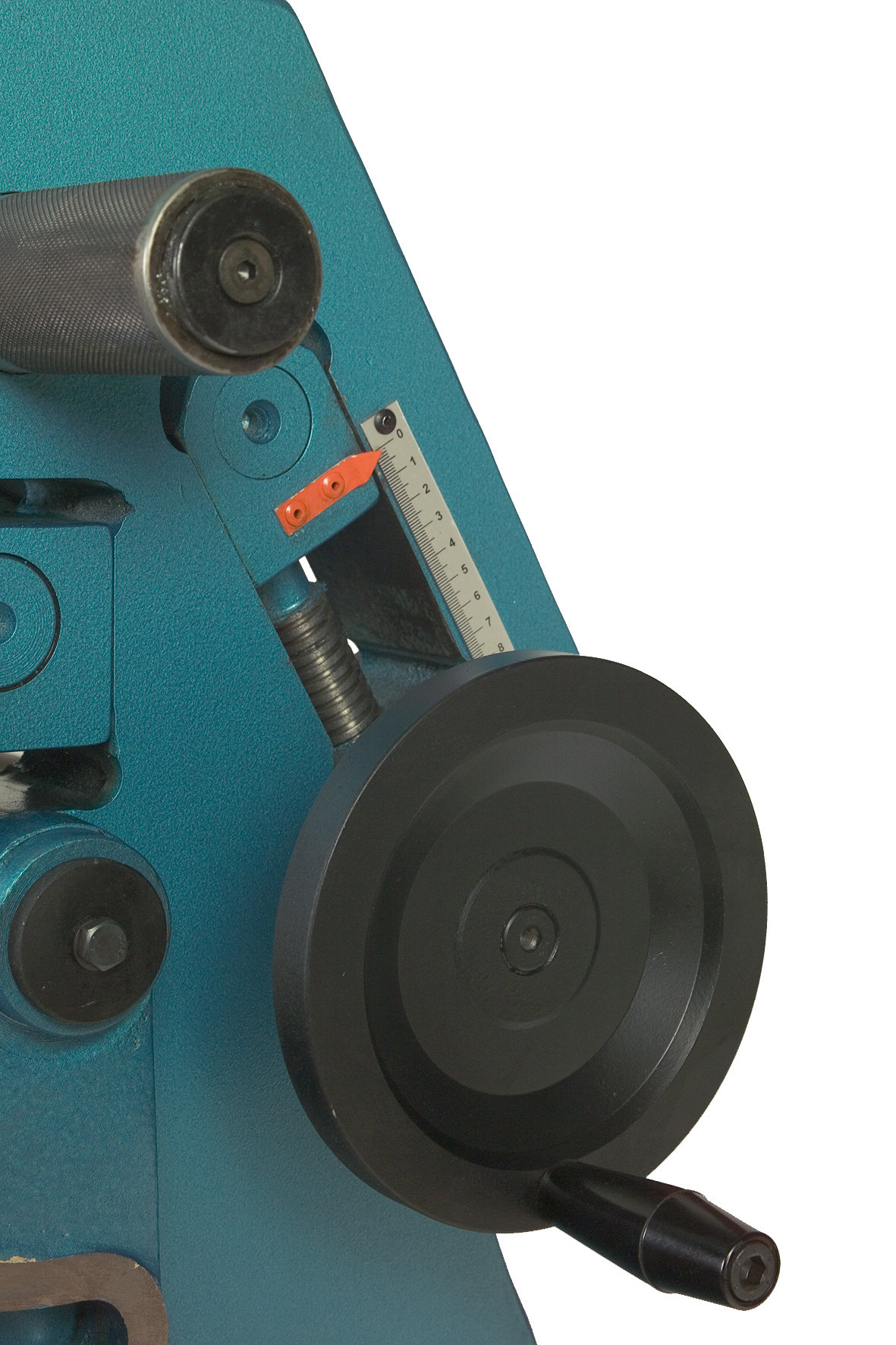

The EBR 1050 x 3.0 provides a 1050 mm working length and is designed for efficient bending of aluminum and steel up to 3.0 mm thick. It features a motor-powered back roll adjustment and hardened, honed rollers for precision and durability. Built with cast iron frames and SAE 1050 steel rollers, it meets EU safety standards and ensures reliable operation across various industrial applications.

Request Quote

    Download Specification Sheet

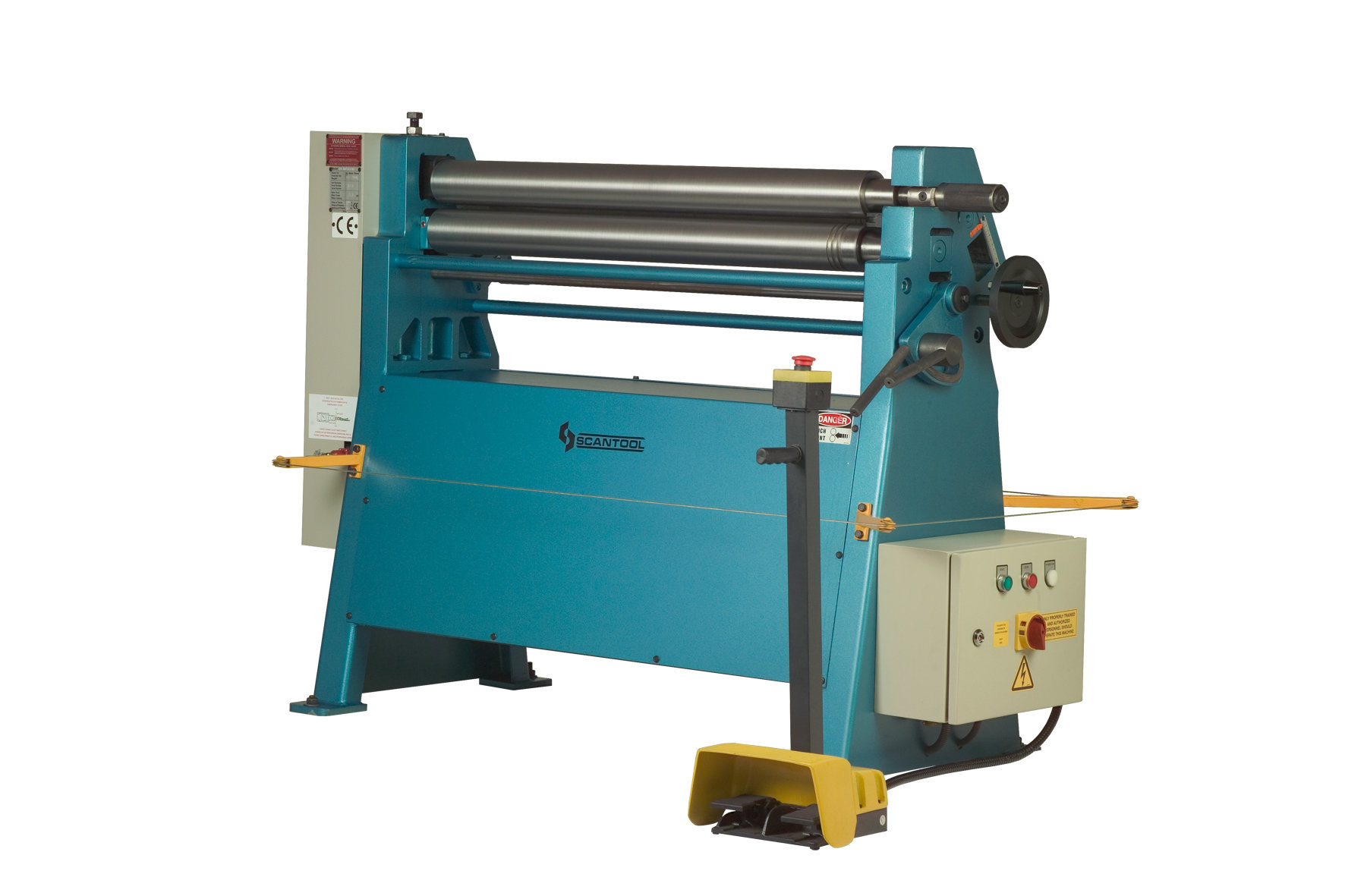

    The EBR 1050 x 3.0 Motorised Bending Roller is an asymmetrical three-roller machine designed for light to medium bending jobs. This model is ideal for aluminum bends and various applications in the ventilation industry. With its robust construction and versatile features, it offers excellent value and performance.

    Technical Specifications

    • Capacity: 1050 x 3.0 mm
    • Sheet Thickness: 3.0 mm
    • Working Length: 1050 mm
    • Voltage: 3x400V-50/60Hz
    • Motor: 2.0 HP (1.5 kW)
    • Min. Bending Diameter: 135 mm
    • Roller Diameter: 90 mm
    • Roller Speed: 6 m/min
    • Dimensions (L x W x H):
      2000 x 750 x 1200 mm
    • Net Weight: 450 kg

    Features

    • Cast iron main frames
    • Main motor with brake
    • Rotatable top roller
    • Motor-powered centralized rollers
    • Wired grooves

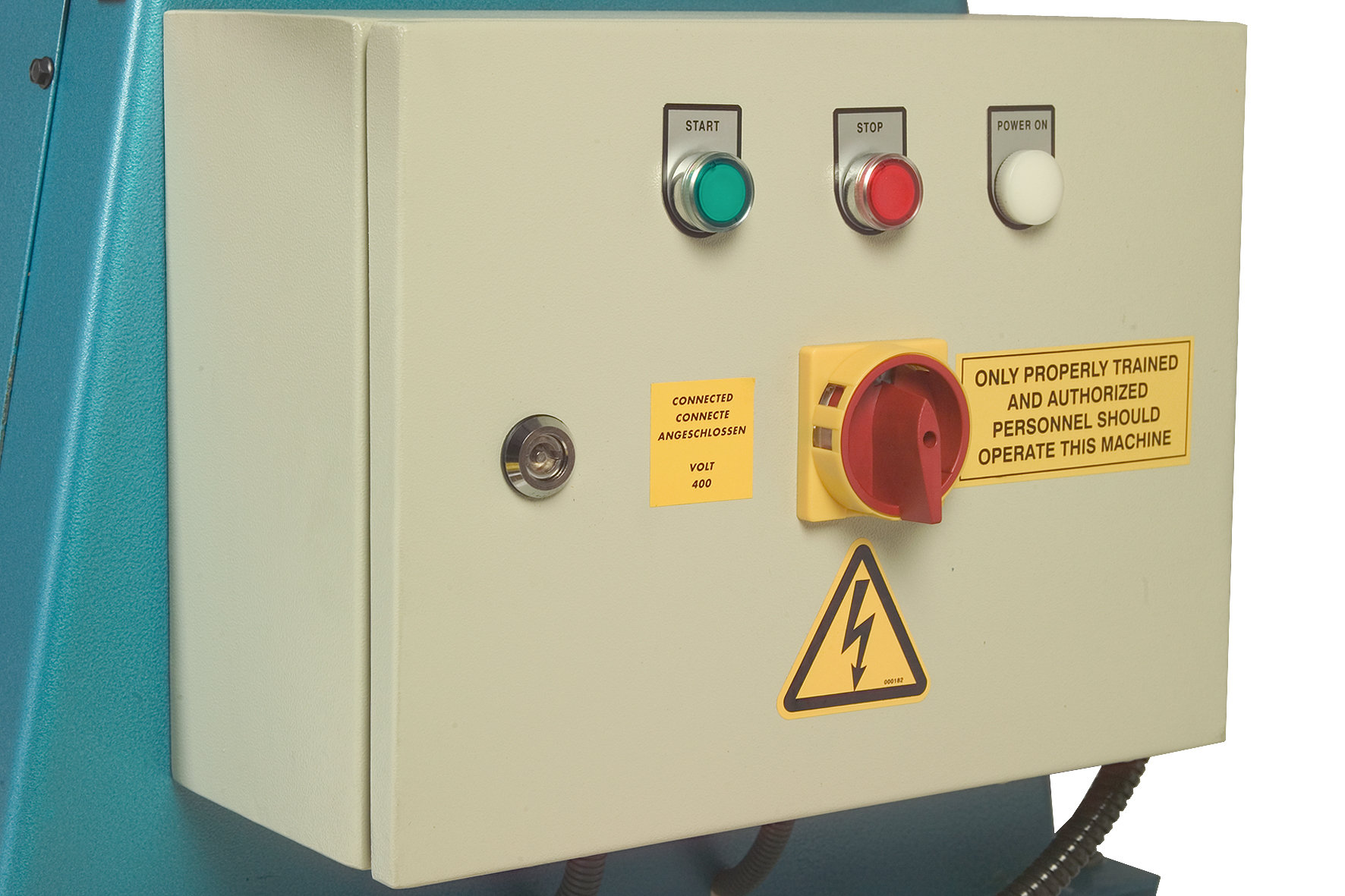

    • Mobile control panel
    • Built according to EU safety directives
    • Rollers of SAE 1050 quality steel with high tensile strength

    Special Accessories

    • Hardened and honed rollers

    Industries and Uses

    • Ventilation Industry: Ideal for bending components and ducts.
    • Aluminum Fabrication: Suitable for bending aluminum sheets up to 3.0 mm thick.
    • Sheet Metal Workshops: Effective for various sheet metal bending tasks.
    • Automotive Sector: Useful for producing custom metal parts and brackets.
    • Construction: Ideal for bending structural metal components and supports.

    FAQ button for all product categories offered by The Workshop Press Company UK

    Slip/Plate Roll FAQs

    Click HERE

    Motorised bending roller EBR 1050 x 3.0, ideal for light to medium tasks, featuring durable cast iron frames, motor-powered rollers, and conical bending capabilities.
