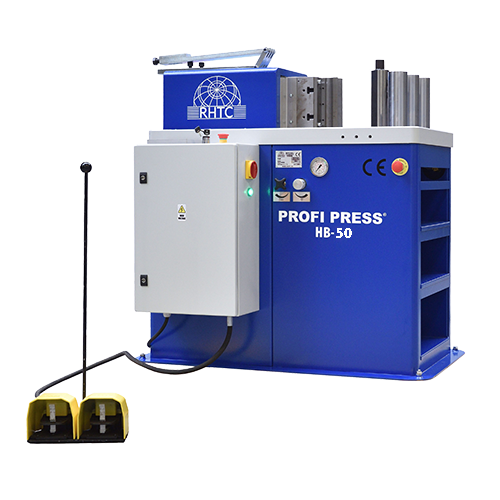

Profi Press HB-50 horizontal bending press with control panel and dual foot pedals
Horizontal Brake Press and Bending Straightening Press 28 tons from The Workshop Press Company UK
Horizontal Press Brake control view
Horizontal Press 50 Ton – PPHB‑50NC - Image 4
Premium Horizontal Press Brake
Versatile applications of Horizontal Press Brakes in metal fabrication
HB-28 Pressure Speed Controls
HB-28 Standard Tooling Holder plate
Multi-Vee and V-Block tooling V-Block Width Metal Bending Metal Fabrication Application
HB-25 Ram Tool Holder

Horizontal Press 50 Ton – PPHB‑50NC

SKU: HB10012-50T-HPB Categories: , Tags: , , , , , , , , ,

Please contact for prices

The Profi Press Horizontal Press 50 Ton (PPHB-50NC) is a powerful and versatile NC-controlled hydraulic press built for a wide range of cold metalworking operations, including bending, straightening, notching, cutting, and forming. With an adjustable 267 mm stroke and programmable NC control, this machine provides both precision and repeatability, making it ideal for industrial workshops, fabrication lines, and general metal processing applications. European-built and CE certified, it delivers reliability, speed, and consistent results.

Request Quote

    Download Specification Sheet

    The Profi Press 50 Ton Horizontal Press (PPHB-50NC) features a robust frame, a 267 mm stroke piston with a 159 mm diameter, and a 5.5 kW motor that delivers 11.6 l/min oil flow. The integrated NC-control allows for programming up to 100 different work cycles, ensuring fast, repeatable results in bending, straightening, notching, and more. Standard equipment includes a back-gauge, angular-graded worktable, and stamp holder. With a table size of 655 x 730 mm and a compact 1500 mm total length, this machine fits easily into most industrial shop layouts.

    Technical Specifications

    • Pressure Force [ton]: 50
    • Motor Power [kW]: 5.5
    • Piston Stroke [mm]: 267
    • Piston Diameter [mm]: 159
    • Oil Delivery [l/min]: 11.6
    • Max Working Speed [mm/sec]: 9.6
    • Return Speed [mm/sec]: 12.8
    • Max Pressure [bar]: 250
    • Table Size [mm]: 655 x 730
    • Machine Length [mm]: 1500
    • Machine Width [mm]: 1005
    • Machine Height [mm]: 1200
    • Weight [kg]: 1300

    Key Features

    • NC‑control to set piston stroke and store up to 100 programmes
    • Selector for manual or semi‑automatic operation
    • Flow adjustment valve and pressure control valve for precision
    • Integrated pressure manometer for real‑time system monitoring
    • Worktable with angular graduation and back‑gauge for versatile tooling setup

    Optional Accessories

    • Motorised back‑gauge
    • Tool for bending material with large radius
    • Accessory for bending rods symmetrically
    • Tool for sheet metal forming into specific shape
    • Set of stamps and dies tailored to application

    FAQ button for all product categories offered by The Workshop Press Company UK

    Horizontal Press Brake Category FAQs

    Click HERE

    50-ton horizontal hydraulic press with NC control, precision stroke adjustment, and multi-purpose tooling for efficient metalworking.
