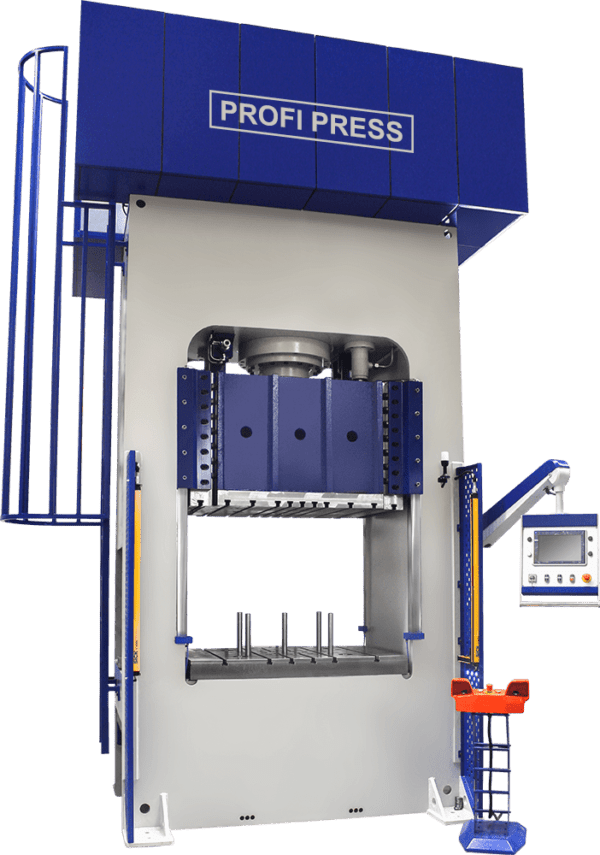

HDDT-100 • 100 Ton • Deep Drawing Press

Product Code: HDDT-100

This 100 Ton Deep Draw Press is designed to carry out deep-drawing tasks in medium and high volumes. Also suitable to incorporate in automated production lines.
We design this Profi Press Deep Draw Press with an upper- and lower table with T-grooves to easily mount moulds and tools. Equipped with a ram cylinder and an hydraulic cushion. The hydraulic unit is standard provided with an air-oil cooling system.

Hydraulic Deep-Drawing Presses come in capacities from 400 tons up to 3000 tons. They are designed to carry out deep-drawing tasks in medium and high volumes either using one-off blanks or while being incorporated in automated production lines. The upper slide table and bottom bolster table come standard with DIN-650 T-grooves to allow for the easy mounting of moulds and tools, but customer T-Slot configurations are also available upon request. The HDDT Series come equipped with a hydraulic ram cylinder and a hydraulic cushion and the hydraulic power pack comes with an air-oil cooling system. The HDDT Series Deep Drawing Presses are high-speed controlled by a top-quality touch screen control panel which permits programming the tonnage, cylinder stroke, and pressure dwell time. The pressing cycle on all HDDT deep draw presses is initiated by the machine operator by means of two-hands push buttons, and safety is guaranteed by photo-electrical sensors situated at the front of the press, but alternative bespoke controls are available. All machines are delivered according to the latest CE standards with guaranteed quality.

The HDDT Series Deep Drawing Presses feature a rich assortment of features, and one special feature is the double-action cylinder and large tables with DIN-650 T-Slot grooves. Deep Draw Pressing Cycles are at high speeds of 100 mm per second with a return speed at 140 mm per second, allowing for large-scale and long-run production in an efficient time frame. The HDDT Series Hydraulic Presses come with hydraulic cushions and can be customised to suit special requirements, such as a larger stroke.

Please contact for prices

    • Description
    • Additional Info
    Technical specifications
    • Force [tn]: 100
    • Motor power [kw]: 22
    • Working speed [mm/sec]: 15
    • Approaching speed [mm/sec]: 100
    • Return speed [mm/sec]: 140
    • Piston stroke [mm]: 1000
    • Table size [mm]: 800 x 1000
    • Max. day light [mm]: 1000
    • Hydraulic cushion [tn]: 40
    • Hydraulic cushion stroke [mm]: 300
    • Total length [mm]: 2200
    • Total width (frontal) [mm]: 2100
    • Overall height [mm]: 4200
    • Weight [kg]: 9000
    Features of this 100 ton deep draw press
    • Chrome plated cylinder and a steel welded frame
    • T-slotted tables
    • Main cylinder and hydraulic cushion
    • Safety light guards at the frontal working area
    • HMI Touch Screen control panel to program pressure, cylinder stroke & pressure time
    • Lubrication system
    • Oil pressure gauge
    • Operation by means of a two-hands button control

    Optional accessories

    • Geometry adapted to your requirements (for example larger tables or a larger piston stroke)
    • Hydraulic ejector cylinder in upper table
    • Variable speeds
    • Tool loading device



    Available up to 3000 tons capacity and also available without hydraulic cushion, ask us for more information.

    Deep Drawing Presses Chart

    The Standard Technical Features and Specifications vary from press to press, and the chosen press should be appropriate to encompass all your applications. Some standard technical features of the HDDT Series Presses include standard tonnages from 100 to 3000 tons, programmable speeds, and a standard working speed of 10 mm per second. Piston stroke is a consideration with the standard range offering a piston stroke of 1000 mm and Vertical Daylight of 1000 mm. Large table sizes range from 1200 x 1400 mm to 1500 x 1700 mm. The presses are outfitted with a hydraulic cushion with 150 tons and a stroke of 300 mm.   The main Press Cylinders are Chrome Plated, and the Frame is a steel welded frame. The top slide and bottom bolster tables come with standard DIN-650 T-slots. The HDDT Series Deep Draw Presses come standard with        Safety Light Guards at the front of the press and the primary control is an HMI Touch Screen control panel that allows for programming pressure, cylinder stroke & pressure dwell time.

    The HDDT Series as a standard offering, are feature-rich but optional accessories and bespoke features are available. Some examples are and adjusted physical size of the press, larger tables, smaller tables, larger piston stroke, hydraulic ejector cylinder in the upper table, variable speeds, and tool loading devices.

    CE Certificate

    This press comes with a standard 2-Year Warranty and a CE Certificate as standard.

    All Profi Presses by RHTC are customisable, integrative, and have custom tools available.
