HPB-100 Horizontal Press Brake • 100 Ton
Please contact for prices
The HPB-100 Horizontal Press Brake is a heavy-duty 100-ton hydraulic forming machine designed for bending, straightening, punching, shearing and general metal forming applications. Its substantial pressing capacity makes it suitable for fabrication workshops and industrial production environments requiring high forming force whilst retaining the versatility of a horizontal press.

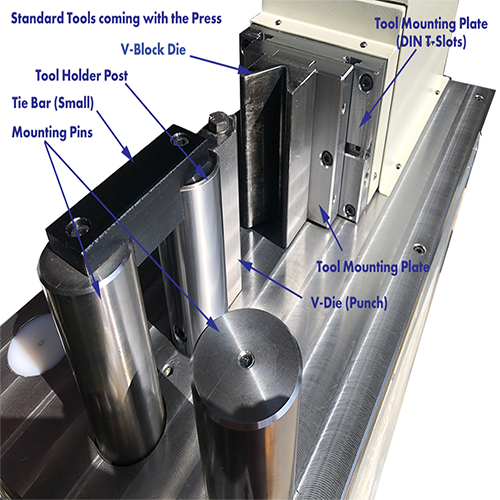

The HPB-100 accepts a wide range of interchangeable tooling for flat bar, tube and pipe bending, punching, cutting, cropping and profile forming. Its horizontal working configuration provides excellent access to the workpiece and tooling, allowing quick tooling changes for different applications.
Digital Display Control: Simple adjustment of the upper and lower stroke positions.
Touchscreen Control Available: Programmable control allowing multiple working programmes to be stored and recalled.
The HPB-100 Horizontal Press Brake is a 100-ton hydraulic metal forming machine designed for bending, straightening, punching, shearing and profile forming. Available with Standard or NC control, it accepts a comprehensive range of interchangeable tooling for heavy-duty industrial fabrication.
Specifications
- Pressing Force: 100 Ton
- Controller: Digital Display Control
- Optional Controller: Touchscreen Control
- Hydraulic Oil Tank Capacity: 70 Litres
- Flat Bar Bending Capacity: 300 × 21 mm
- Tube Bending Capacity: 114 × 4 mm
- Stroke: 315 mm
- Tooling Height: 300 mm
- Working Speed: 10 mm/sec
- Return Speed: 10 mm/sec
- Motor Power: 11 kW
- Table Size: 750 × 1427 mm
- Machine Dimensions (L × W × H): 1450 × 750 × 1427 mm
- Machine Weight: 2100 kg
- Packaging Dimensions: 150 × 75 × 180 cm
Features
- 100-ton hydraulic pressing capacity.
- Horizontal working design provides excellent access to the workpiece and tooling.
- Suitable for bending, straightening, punching, shearing and forming operations with appropriate tooling.
- Accepts a wide range of interchangeable tooling.
- Suitable for flat bar, tube and pipe bending applications.
- Rigid welded steel construction.
- Smooth, controlled hydraulic operation.
- Foot pedal operation for convenient machine control.
- Emergency stop and integrated hydraulic controls.
- Quick tooling changes for different applications.
- 315 mm stroke and 300 mm tooling height accommodate a wide range of tooling configurations.
- Suitable for heavy fabrication and industrial production environments.
Optional Equipment
- Touchscreen Controller with programmable stroke positioning and programme storage.
- Adjustable Stroke Length Control for repeatable production work.
- Hydraulic Flow Control Valve for adjusting ram speed.
- Pressure Manometer for hydraulic pressure monitoring.
- Angular Graduations on the working table for repeatable bending operations.
- Adjustable Back Gauge for accurate workpiece positioning.
- Additional tooling location holes for specialised applications.
- Pipe and tube bending tooling.
- Flat bar bending tooling.
- Punch and die tooling for punching and piercing operations.
- Cutting and cropping tooling.
- V-Dies, V-Blocks and specialist forming tools.
- Application-specific custom and bespoke tooling.
Horizontal Press Brake Frequently Asked Questions
Find answers to common questions about horizontal press brakes, tooling, bending capacity, punching, pipe and tube bending, NC controls, optional equipment, installation, operation and servicing.
The HPB-100 Horizontal Press Brake is a powerful 100-ton hydraulic forming machine designed for bending, straightening, punching, shearing and general metal forming operations. Its horizontal working configuration provides excellent accessibility, allowing rapid tooling changes and efficient operation across a wide range of fabrication applications.
Designed for heavy-duty industrial environments, the HPB-100 accepts a comprehensive range of interchangeable tooling for flat bar bending, tube and pipe bending, punching, cutting, cropping and profile forming. Available with either a Standard controller or an NC controller, the machine delivers smooth hydraulic performance, excellent repeatability and dependable operation for demanding production applications.
Its heavy-duty welded steel construction and industrial hydraulic system are engineered for long service life, whilst optional accessories including stroke control, back gauges and specialist tooling enable the machine to be configured for a wide variety of manufacturing requirements.
