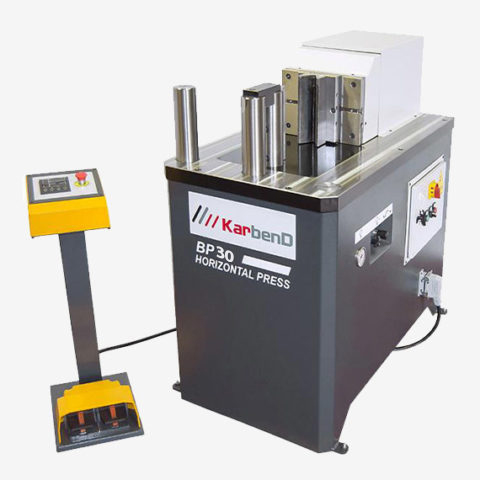

HPB-30 Horizontal Press Brake • 30 Ton
Please contact for prices
The HPB-30 Horizontal Press Brake is a heavy-duty 30-ton hydraulic forming machine designed for bending, straightening, punching, shearing and general metal forming applications. Its increased pressing capacity makes it suitable for fabrication workshops and production environments requiring greater forming force whilst retaining the versatility of a horizontal press.
The HPB-30 accepts a wide range of interchangeable tooling for flat bar, tube and pipe bending, punching, cutting, cropping and profile forming. Its horizontal working configuration provides excellent access to the workpiece and tooling, allowing quick tooling changes for different applications.
Digital Display Control: Simple adjustment of the upper and lower stroke positions.
Touchscreen Control Available: Programmable control allowing multiple working programmes to be stored and recalled.
The HPB-30 Horizontal Press Brake is a 30-ton hydraulic metal forming machine designed for bending, straightening, punching, shearing and profile forming. Available with Standard or NC control, it accepts a wide range of interchangeable tooling for fabrication workshops, manufacturing facilities and industrial production environments.
Specifications
- Pressing Force: 30 Ton
- Controller: Digital Display Control
- Optional Controller: Touchscreen Control
- Hydraulic Oil Tank Capacity: 40 Litres
- Flat Bar Bending Capacity: 250 × 10 mm
- Tube Bending Capacity: 76.1 × 4 mm
- Stroke: 285 mm
- Tooling Height: 250 mm
- Working Speed: 10 mm/sec
- Return Speed: 10 mm/sec
- Motor Power: 3 kW
- Table Size: 660 × 1250 mm
- Machine Dimensions (L × W × H): 1250 × 650 × 1350 mm
- Machine Weight: 1050 kg
- Packaging Dimensions: 70 × 130 × 175 cm
Features
- 30-ton hydraulic pressing capacity.
- Horizontal working design provides excellent access to the workpiece and tooling.
- Suitable for bending, straightening, punching, shearing and forming operations with appropriate tooling.
- Accepts a wide range of interchangeable tooling.
- Suitable for flat bar, tube and pipe bending applications.
- Rigid welded steel construction.
- Smooth, controlled hydraulic operation.
- Foot pedal operation for convenient machine control.
- Emergency stop and integrated hydraulic controls.
- Quick tooling changes for different applications.
- Suitable for fabrication, maintenance, repair and production environments.
Optional Equipment
- Touchscreen Controller with programmable stroke positioning and programme storage.
- Adjustable Stroke Length Control for repeatable production work.
- Hydraulic Flow Control Valve for adjusting ram speed.
- Pressure Manometer for hydraulic pressure monitoring.
- Angular Graduations on the working table for repeatable bending operations.
- Adjustable Back Gauge for accurate workpiece positioning.
- Additional tooling location holes for specialised applications.
- Pipe and tube bending tooling.
- Flat bar bending tooling.
- Punch and die tooling for punching and piercing operations.
- Cutting and cropping tooling.
- V-Dies, V-Blocks and specialist forming tools.
- Application-specific custom and bespoke tooling.
Horizontal Press Brake Frequently Asked Questions
Find answers to common questions about horizontal press brakes, tooling, bending capacity, punching, pipe and tube bending, NC controls, optional equipment, installation, operation and servicing.
The HPB-30 Horizontal Press Brake is a robust 30-ton hydraulic forming machine designed for precision bending, straightening, punching, shearing and general metal forming operations. Its horizontal working configuration provides excellent accessibility, allowing rapid tooling changes and efficient operation across a broad range of fabrication applications.
Designed for fabrication workshops, manufacturing facilities, maintenance departments and engineering companies, the HPB-30 accepts a comprehensive range of interchangeable tooling for flat bar bending, tube and pipe bending, punching, cutting, cropping and profile forming. The increased 30-ton forming capacity makes it well suited to heavier fabrication work whilst maintaining excellent accuracy and repeatability.
Available with either a Standard controller or an NC controller, the HPB-30 delivers smooth hydraulic performance and dependable operation. Its heavy-duty welded steel construction is engineered for long service life, whilst optional accessories including stroke control, back gauges and specialist tooling enable the machine to be configured for a wide variety of industrial manufacturing applications.
