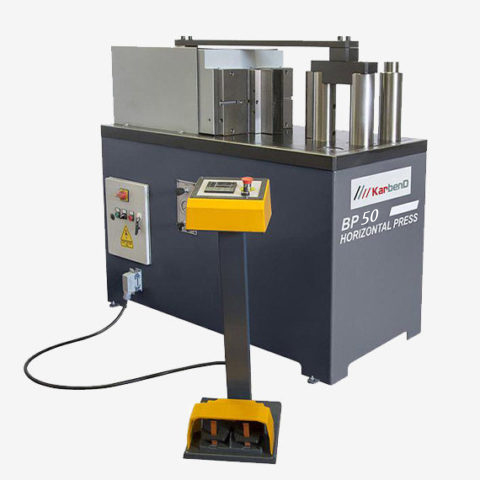

HPB-50 Horizontal Press Brake • 50 Ton
Please contact for prices
The HPB-50 Horizontal Press Brake is a heavy-duty 50-ton hydraulic forming machine designed for bending, straightening, punching, shearing and general metal forming applications. Its increased pressing capacity makes it suitable for fabrication workshops and production environments requiring substantial forming force whilst retaining the versatility of a horizontal press.
The HPB-50 accepts a wide range of interchangeable tooling for flat bar, tube and pipe bending, punching, cutting, cropping and profile forming. Its horizontal working configuration provides excellent access to the workpiece and tooling, allowing quick tooling changes for different applications.
Digital Display Control: Simple adjustment of the upper and lower stroke positions.
Touchscreen Control Available: Programmable control allowing multiple working programmes to be stored and recalled.
The HPB-50 Horizontal Press Brake is a 50-ton hydraulic forming machine for bending, straightening, punching, shearing and profile forming. Available with Standard or NC control, it provides a 285 mm stroke and accepts interchangeable tooling for flat bar, tube, pipe, punching, cutting and V-die applications.
Specifications
- Pressing Force: 50 Ton
- Controller: Digital Display Control
- Optional Controller: Touchscreen Control
- Hydraulic Oil Tank Capacity: 70 Litres
- Flat Bar Bending Capacity: 300 × 16 mm
- Tube Bending Capacity: 89 × 4 mm
- Stroke: 300 mm
- Tooling Height: 300 mm
- Working Speed: 10 mm/sec
- Return Speed: 10 mm/sec
- Motor Power: 5.5 kW
- Table Size: 650 × 1335 mm
- Machine Dimensions (L × W × H): 1400 × 650 × 1335 mm
- Machine Weight: 1550 kg
- Packaging Dimensions: 145 × 65 × 180 cm
Features
- 50-ton hydraulic pressing capacity.
- Horizontal working design provides excellent access to the workpiece and tooling.
- Suitable for bending, straightening, punching, shearing and forming operations with appropriate tooling.
- Accepts a wide range of interchangeable tooling.
- Suitable for flat bar, tube and pipe bending applications.
- Rigid welded steel construction.
- Smooth, controlled hydraulic operation.
- Foot pedal operation for convenient machine control.
- Emergency stop and integrated hydraulic controls.
- Quick tooling changes for different applications.
- 300 mm stroke and 300 mm tooling height accommodate a wide range of tooling configurations.
- Suitable for fabrication, maintenance, repair and production environments.
Optional Equipment
- Touchscreen Controller with programmable stroke positioning and programme storage.
- Adjustable Stroke Length Control for repeatable production work.
- Hydraulic Flow Control Valve for adjusting ram speed.
- Pressure Manometer for hydraulic pressure monitoring.
- Angular Graduations on the working table for repeatable bending operations.
- Adjustable Back Gauge for accurate workpiece positioning.
- Additional tooling location holes for specialised applications.
- Pipe and tube bending tooling.
- Flat bar bending tooling.
- Punch and die tooling for punching and piercing operations.
- Cutting and cropping tooling.
- V-Dies, V-Blocks and specialist forming tools.
- Application-specific custom and bespoke tooling.
Horizontal Press Brake Frequently Asked Questions
Find answers to common questions about horizontal press brakes, tooling, bending capacity, punching, pipe and tube bending, NC controls, optional equipment, installation, operation and servicing.
The HPB-50 Horizontal Press Brake is a 50-ton hydraulic forming machine designed for bending, straightening, punching, shearing and general metal-forming operations. Its horizontal working configuration provides direct access to the tooling and supports rapid changes between different fabrication processes.
The machine provides a 285 mm stroke, 300 mm tooling height and a working speed of 10 mm per second. It is available with either Standard or NC control and accepts interchangeable tooling for flat bar bending, round tube and pipe bending, punching, cutting, cropping and V-die forming.
