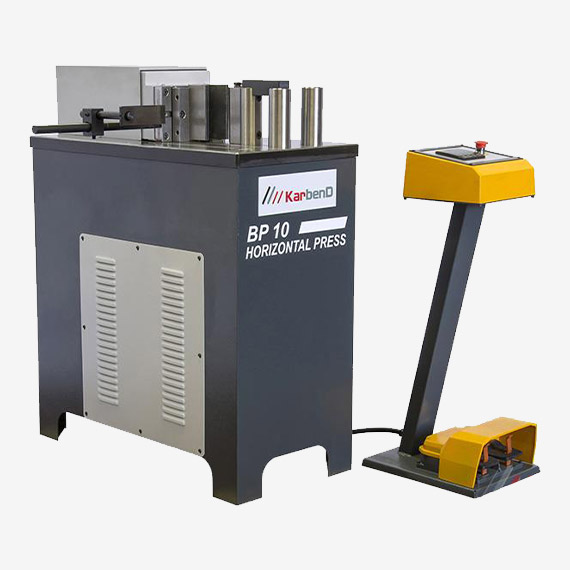

HPB-10 Horizontal Press Brake • 10 Ton
Please contact for prices
The HPB-10 Horizontal Press Brake is a compact 10-ton hydraulic forming machine designed for precision bending, straightening and forming applications. Its horizontal configuration provides excellent access to the workpiece and tooling, making it suitable for fabrication workshops, maintenance departments, prototype work and general metalworking applications.
The HPB-10 accommodates a wide range of interchangeable tooling for flat bar, tube, pipe and profile forming. With a 185 mm working stroke, 150 mm tooling height and compact footprint, it provides a versatile solution for both one-off work and repeat production.

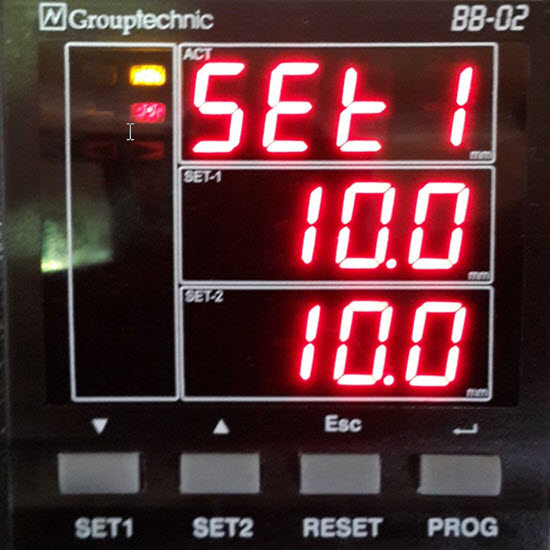

Digital Display Control: Simple adjustment of the upper and lower stroke positions.
Touchscreen Control Available: Programmable control allowing multiple working programmes to be stored and recalled.
The HPB-10 Horizontal Press Brake is a compact 10-ton hydraulic forming machine designed for precision bending, straightening, punching, shearing and forming operations. Suitable for workshops, maintenance departments and light production environments, it accepts a wide range of interchangeable tooling for flat bar, tube and profile work. Available with either a Standard or NC controller, the HPB-10 provides accurate, repeatable hydraulic performance in a compact footprint, making it an ideal solution for versatile metal fabrication applications.
Specifications
- Pressing Force: 10 Ton
- Controller: Digital Display Control
- Optional Controller: Touchscreen Control
- Hydraulic Oil Tank Capacity: 12 Litres
- Flat Bar Bending Capacity: 185 mm
- Tube Bending Capacity: 42 × 3.2 mm
- Stroke: 185 mm
- Tooling Height: 150 mm
- Working Speed: 10 mm/sec
- Return Speed: 10 mm/sec
- Motor Power: 1.1 kW
- Table Size: 450 × 900 mm
- Working Height: 915 mm
- Machine Dimensions (L × W × H): 900 × 450 × 1130 mm
- Machine Weight: 250 kg
- Packaging Dimensions: 100 × 50 × 150 cm
Features
- 10-ton hydraulic pressing capacity.
- Compact footprint for workshops with limited floor space.
- Suitable for bending, straightening, punching and shearing operations with appropriate tooling.

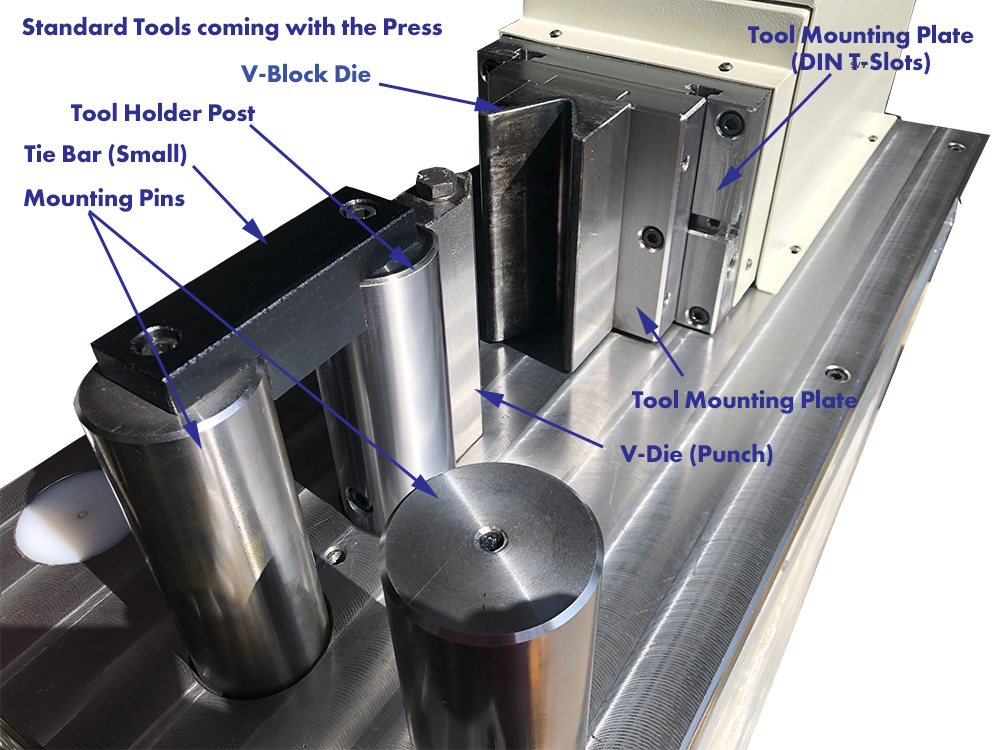

- Accepts a wide range of interchangeable tooling.
- Suitable for flat bar, tube and pipe bending applications.
- Rigid welded steel construction.
- Smooth, controlled hydraulic operation.
- Foot pedal operation for convenient machine control.
- Emergency stop and integrated hydraulic controls.
- Quick tooling changes for different applications.
- Suitable for fabrication, maintenance, repair and production environments.
Optional Equipment
- Touchscreen Controller with programmable stroke positioning and programme storage.
- Stroke Length Control for repeatable production work.
- Hydraulic Flow Control Valve for adjusting ram speed.
- Pressure Manometer for hydraulic pressure monitoring.
- Angular Graduations on the working table for repeatable bending operations.
- Back Gauge for accurate workpiece positioning.
- Additional tooling location holes for specialised tooling.
- Pipe and tube bending tooling.

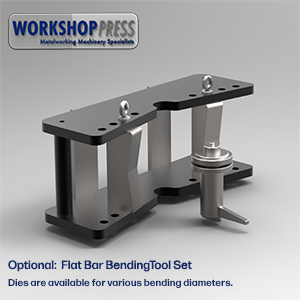

- Flat bar bending tooling.
- Punch and die tooling for punching and piercing operations.
- Cutting and cropping tooling.

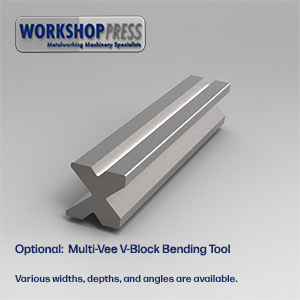

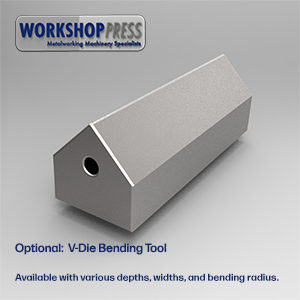

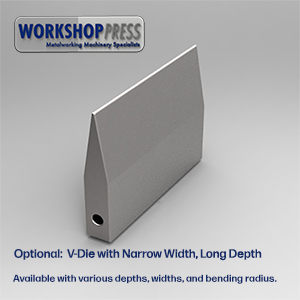

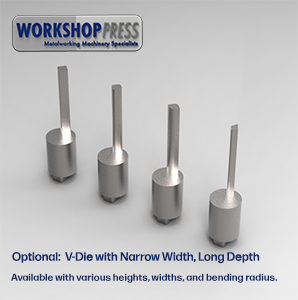

- V-Dies and V-Blocks for a wide variety of bending applications.
- Application-specific custom and bespoke tooling.
Horizontal Press Brake Frequently Asked Questions
Find answers to common questions about horizontal press brakes, tooling, bending capacity, punching, pipe and tube bending, NC controls, optional equipment, installation, operation and servicing.
The HPB-10 Horizontal Press Brake is a compact and highly versatile 10-ton hydraulic forming machine designed for precision bending, straightening, punching, shearing and general metal forming operations. Its horizontal working configuration provides excellent accessibility, making tooling changes quick and efficient whilst allowing a broad range of fabrication tasks to be completed using a single machine.
Designed for workshops, maintenance departments, fabrication companies and educational facilities, the HPB-10 accepts a wide selection of interchangeable tooling for flat bar bending, tube and pipe bending, punching, cutting, cropping and profile forming. This versatility enables the production of brackets, clips, hooks, rings and numerous other fabricated components with excellent repeatability.
The machine is available with either a Standard controller or an NC controller to suit different production requirements. Hydraulic operation delivers smooth, controlled forming whilst the rigid welded construction provides long service life and reliable performance. Optional accessories, including stroke control, pressure monitoring and back gauge systems, further expand the capabilities of the machine for specialist applications.
