Hydraulic Profile Bending Machine PB 50-3HM – Electric Top Roll Control & 3 Driven Rolls
Please contact for prices
The PB 50-3HM is a high-performance hydraulic profile bending machine designed for efficient forming of pipes, bars, and structural sections. Engineered in Europe, this machine features motorized adjustment of the upper roll, digital position readout, and the flexibility to operate in vertical or horizontal mode. It comes equipped with 3 driven rolls and a universal roller set, making it ideal for professional metalworking environments.
The Profi Bend PB 50-3HM is built for accuracy, efficiency, and flexibility in professional fabrication settings. It features a motorized top roll control system via an electric panel, allowing precise adjustment with digital readout (0.1 mm accuracy). The machine’s 3 driven rollers ensure consistent and powerful bending, while its tiltable head enables quick transitions between vertical and horizontal working positions. Made with high-quality components and CE-certified, the PB 50-3HM is delivered with a universal roller set and supports a range of optional accessories including pipe rollers, distance rollers, a yoke, and a spiral bending tool.
Technical Specifications
- Shaft Diameter [mm]: 50
- Roll Diameter [mm]: 155
- Rotational Speed [rpm]: 11
- Driving Motor Power [kW]: 1.5
- Voltage [V/Hz]: 400/50
- Adjusting Way [mm]: 160
- Weight [kg]: 430
- Total Length [mm]: 1200
- Total Width [mm]: 800
- Overall Height [mm]: 1750
Key Features

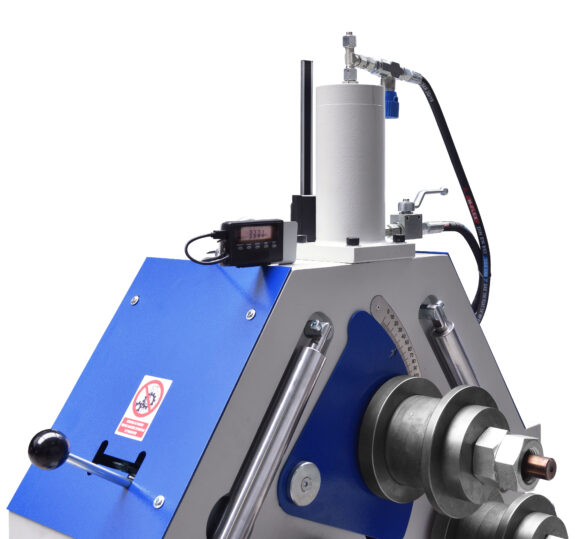

- Motorized hydraulic adjustment of the upper roll
- Digital read-out with 0.1 mm accuracy
- Three driven rolls for uniform bending
- Dual working position: vertical and horizontal
- Includes universal roller set for profile and flat bar bending
Optional Accessories
- Bespoke roller sets (steel or plastic)
- Spiral bending device
- Yoke for enhanced stability
- Distance rollers
Capacity chart for the PB-50-3 Series, highlighting maximum bending dimensions for various profile shapes.
Exploded view of the standard tool and spacer set included with the PB-50-3 Series profile bender.
Detailed shaft drawing for the PB-50-3 Series, featuring shaft length, keyway, and diameter specifications.

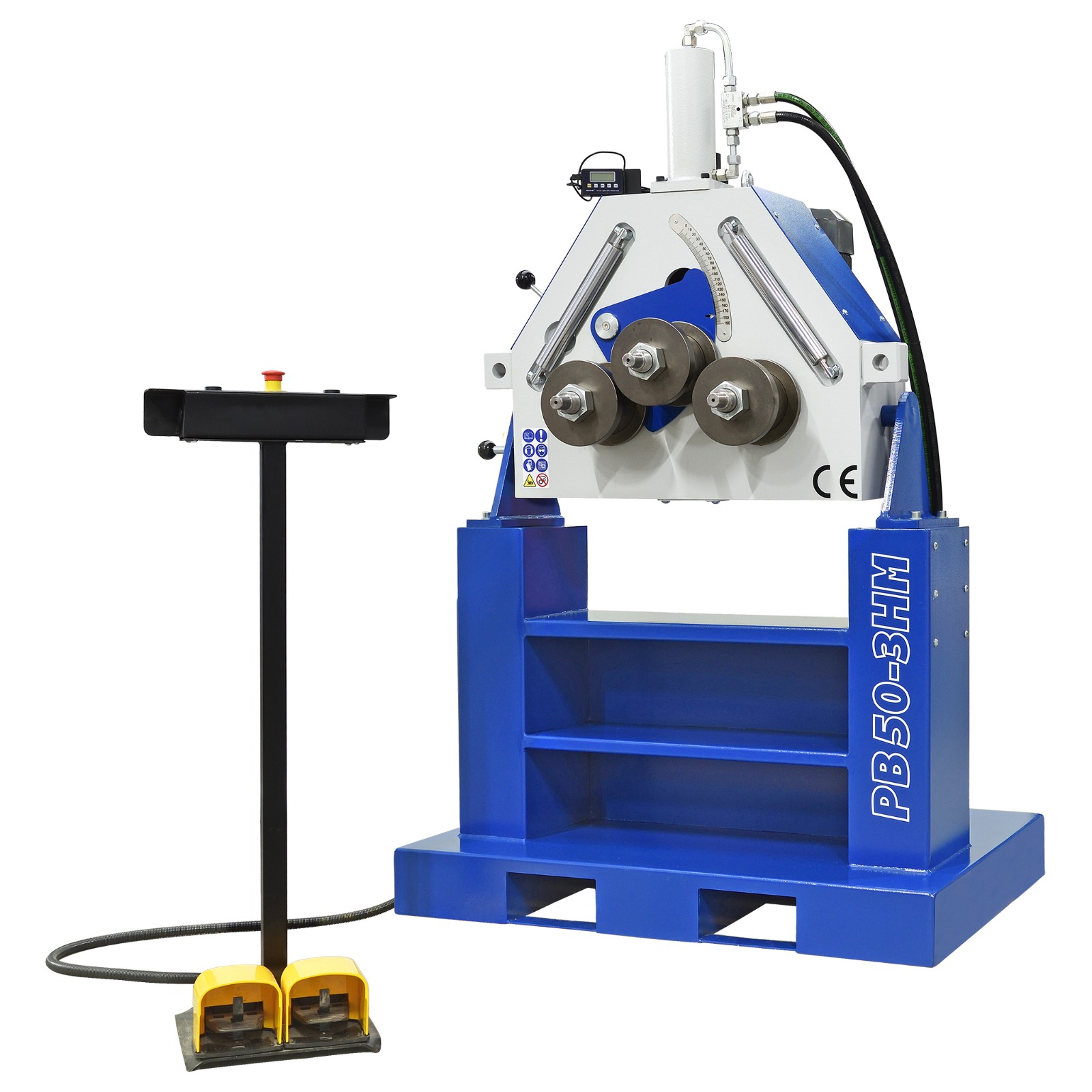

Heavy-duty hydraulic profile bender with motorized top roll adjustment, 3 driven rollers, digital display, and dual-position operation.
