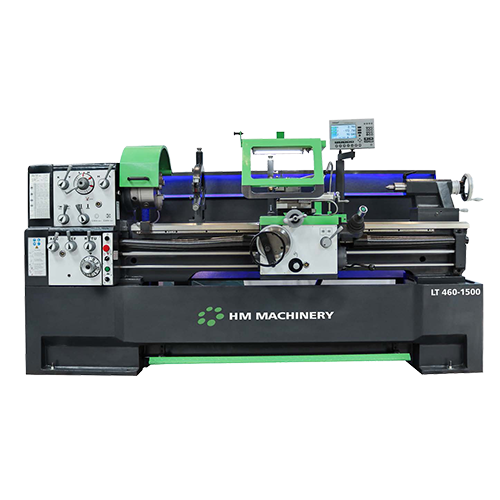

LT 460/2000 Precision Metal Lathe • Swing 460 mm • Centres 2000 mm

Product Code: 36001028

The LT 460/2000 is the pinnacle of precision and capacity within our range, featuring a significant 460mm swing over bed and a substantial 2000mm distance between centers. Equipped with an 80mm spindle bore and a robust Camlock D1-8 spindlenose, this lathe excels in handling large and extended workpieces crucial in heavy industrial applications. Its comprehensive build and high-performance characteristics ensure it meets the needs of the most demanding machining tasks.

Experience unparalleled precision and efficiency with our LT 460/2000 Industrial Metal Lathe. Designed to handle even the most demanding tasks, this lathe is perfect for industries requiring high accuracy and robust performance. To learn more about how our lathes can transform your machining processes and boost your productivity, check out our detailed guide on precision metal lathes here.

    • Description
    • Additional Info

    Offering variable spindle speeds up to 1700 rpm, the LT 460/2000 allows for adaptable machining across a variety of materials and applications. It is especially suited for sectors requiring extensive length handling, like wind energy, shipbuilding, and industrial equipment manufacturing. Its advanced threading capabilities, both metric and imperial, add to its versatility, making it a critical asset for any heavy-duty machining environment.

    Technical Specifications:

    • Swing over Bed [mm]: 460mm
    • Swing over Gap [mm]: 690mm
    • Swing over Cross Slide [mm]: 270mm
    • Tail Diameter [ø mm]: 60mm
    • Tail Height [mm]: 230mm
    • Spindlenose Camlock: D1-8
    • Distance Between Centers [mm]: 2000mm
    • Width of Bed [mm]: 300mm
    • Spindle Bore [mm]: 80mm
    • Spindlenose Taper: MK-7
    • Number of Spindle Speeds: 12
    • Range of Spindle Speeds [rpm]: 25-1700rpm
    • Metric Threads [mm]: 0.1-14mm
    • Imperial Threads: 2~112 T.P.I
    • Range of Longitudinal Feed [mm]: 0.03~1.7mm
    • Type of Toolholder: Multi
    • Max. Travel of Compound Slide [mm]: 128mm
    • Max. Travel of Cross Slide [mm]: 285mm
    • Max. Travel of Main Slide [mm]: 2000mm
    • Tailstock Spindle Travel [mm]: 130mm
    • Taper in Tailstock Spindle: MK-4
    • Voltage: 3 Ph, 400V, 50 Hz
    • Motor [Kw]: 5.5 kW
    • Length [mm]: 3250mm
    • Width [mm]: 1080mm
    • Height [mm]: 1370mm
    • Weight [kg]: 1973kg

    Features and Uses:

    • Precision digital readout system for exact machining
    • Sturdy construction built for intensive and prolonged use

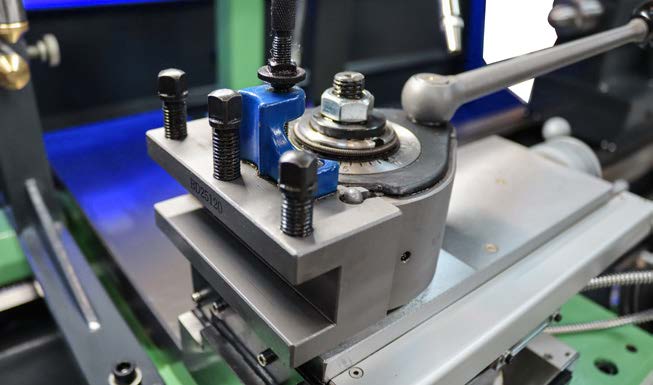

    • Multi-toolholder system for efficient operational transitions
    • Perfectly suited for handling very large industrial components
    • Ideal for constructing critical parts in sectors such as wind energy and shipbuilding
    • Supports extensive batch production for industrial machinery manufacturing
    • Used in advanced technical training and R&D for developing new machining technologies
    • Essential for heavy-duty applications in the aerospace and automotive sectors

    Powerful, expansive, and designed for maximum productivity, the LT 460/2000 lathe is engineered to tackle large-scale industrial projects with unmatched efficiency.
