D1004 • 1000 Kg Capacity • 0.01 to 1.3 RPM • 895mm Working Height • 920mm Faceplate • 56mm Through Hole

Product Code: D1004

With load capacities of up to 1000 Kg, the D1004 large turntable provides optimal conditions for use in heavyweight automation solutions. It has a 920mm Face Plate, 565mm Through Hole, and an 895mm Working Height.

Merkle GmbH develops and manufactures top-quality welding positioners in their factory located in Baden-Württemberg, Germany. Merkle’s offering is comprehensive and broad, with load capacities ranging from 50 to 5000 kg. Over the years, the family-owned business has accumulated decades of experience, and their proven technology is the critical element for perfect results in every circular welding application. Merkle welding positioners guarantee speed control that is exact and constant even with uneven loads.

Models in the series D653 are Extra-Heavy Duty Welding Positioners are tiltable in a range of 135°. Due to the size and load capacity, the tilting movement is motorized or hydraulic and can be controlled directly at the turntable or via a remote control. The models D653 offer an interchangeable faceplate via a unique locking system that allows the faceplate to be quickly released for fast setup and changeovers.

This Rotary Welding Table is CE Certified and comes with a 2-Year Warranty.

    Specification Sheet Download Here
    • Description
    • Additional Info

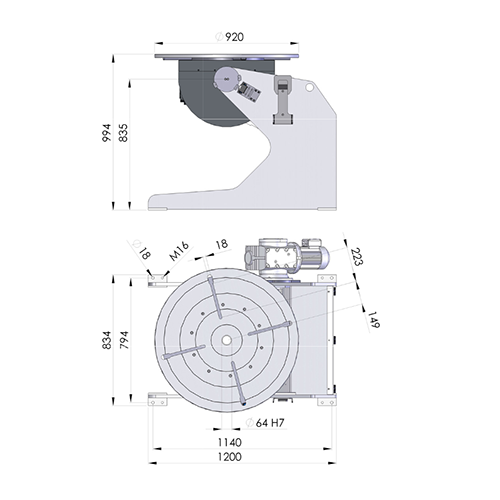

    Technical specifications

    • Model: D1004
    • Load Capacity (vertical): 1000 kg/10 kN
    • Speed RPM: 0.027 -1.2/Minute
    • Torque: 1025 Nm
    • Face Plate Diameter: 920 mm
    • Table Working Height: 895 mm
    • Axis height: 736 mm
    • Through Hole Diameter: 56 mm
    • Centralising bore (chuck or jig mount): ø 64H7
      3 mm deep
    • Tilting angle – face plate: 135°
    • Tilting operation: motor driven v = 6.3°/s
    • Tilting moment: 3000 Nm
    • Max. rotating diameter: 1400 mm
    • Current collector: 800 A
    • Mains voltage: 3 x 400 V
    • Frequency: 50 Hz
    • Mains connection cable: 5 x 2.5 mm², 5 metre length with CEE-plug 16 A
    • Interface for external operation: Foot switch, hand and foot remote
    • Speed control range: 1:40
    • Limit switch overlap 360° + overlap: option
    • Weight: 550 kg

    0/5 (0 Reviews)
