D5002 • 5000 Kg Capacity • 0.002 to 1.1 RPM • 1444 Working Height • 1000mm Faceplate • 60mm Through Hole

Product Code: D5002

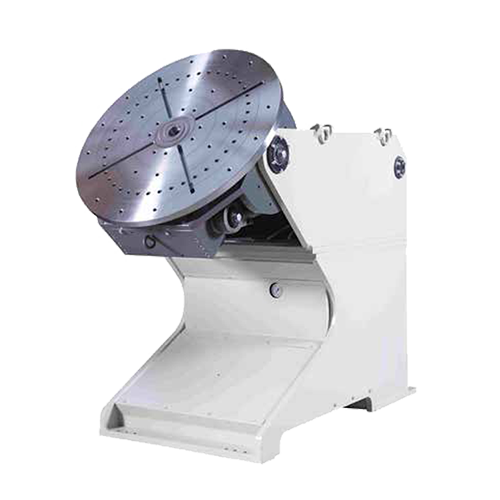

With load capacities of up to 5000 Kg, the D5002 large turntable provides optimal conditions for use in heavyweight automation solutions.  It has a 920mm Face Plate, 60mm Through Hole, and a 1444mm Working Height.

Merkle GmbH develops and manufactures top-quality welding positioners in their factory located in Baden-Württemberg, Germany.   Merkle’s offering is comprehensive and broad, with load capacities ranging from 50 to 5000 kg.   Over the years, the family-owned business has accumulated decades of experience, and their proven technology is the critical element for perfect results in every circular welding application. Merkle welding positioners guarantee speed control that is exact and constant even with uneven loads.

Models in the series D653 are Extra-Heavy Duty Welding Positioners are tiltable in a range of 135°.  Due to the size and load capacity, the tilting movement is motorized or hydraulic and can be controlled directly at the turntable or via a remote control. The models D653 offer an interchangeable faceplate via a unique locking system that allows the faceplate to be quickly released for fast setup and changeovers.

This Rotary Welding Table is CE Certified and comes with a 2-Year Warranty.

    Specification Sheet Download Here
    PRODUCT VIDEO
    PRODUCT ENQUIRY
    • Description
    • Additional Info

    Technical specifications

    • Model: D5002
    • Load Capacity (vertical): 5000 kg/50 kN
    • Speed RPM: 0.002 -1.1/Minute
    • Torque: 5000 Nm

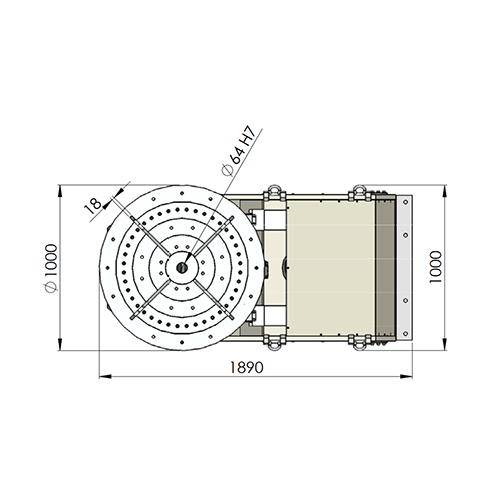

    • Face Plate Diameter: 1000 mm

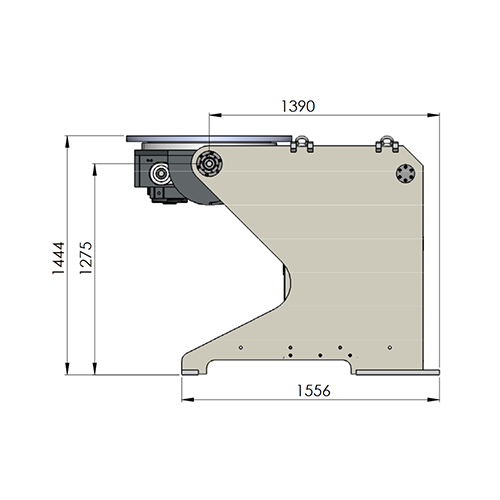

    • Table Working Height: 1444 mm
    • Axis height: 1275 mm
    • Through Hole Diameter: 60 mm
    • Centralising bore (chuck or jig mount): ø 64H7
      20 mm deep
    • Tilting angle – face plate: 135°
    • Tilting operation: hydraulic
    • Tilting moment: 31750 Nm
    • Max. rotating diameter: 2400 mm 2000 mm b. ext.
    • Current collector: 1200 A
    • Mains voltage: 3 x 400 V
    • Frequency: 50 Hz
    • Mains connection cable: 5 x 4 mm², 5 metre length with CEE -plug 32 A
    • Interface for external operation: Foot switch, hand and foot remote
    • Speed control range: 1:550
    • Limit switch overlap 360° + overlap: option
    • Weight: 2200 kg
