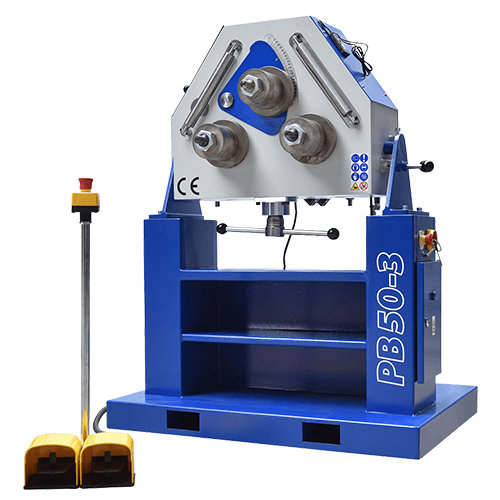

PB 50-3 RHTC Profile Bender
Product Code: PB12091-PB 50-3*** Special Clearance Offer - Brand New Machine ***
Don't miss this LIMITED TIME SPECIAL OFFER on our brand-new PB 50-3 Profi Bender Special Edition, a top-quality Profile Bending Machine now available at an unbeatable price. Designed for maximum versatility and efficiency, this machine is an essential addition to any manufacturing or fabrication facility. The PB 50-3 can handle a wide range of materials including flat bars, solid square bars, round bars, tubing, pipes, and more. It's also adept at working with specialized profiles like rectangle tubing, box sections, L-sections, T-Sections, U-sections, and I-Sections.

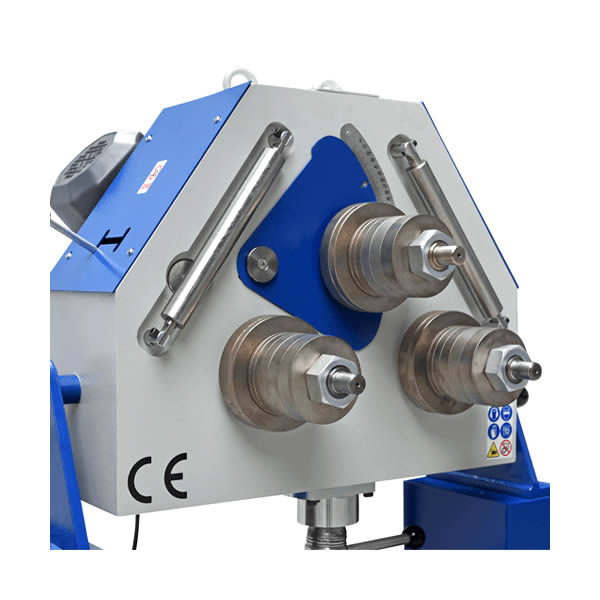

One of the standout features of this machine is its dual working positions. It operates in both vertical and horizontal orientations, offering enhanced flexibility for various bending tasks. You can easily switch between 3 driven rolls and 2 driven rolls with a simple lever action, providing you with more control over your bending operations. The top roll comes with a position scale and is manually adjustable via a T-handle, ensuring precise control for accurate bending.
Known by various names such as Roll Bender, Profile Roller, and Ring Roller, the PB 50-3's versatility makes it an indispensable asset in your operations. Its intuitive controls and ease of use reduce the learning curve, allowing for increased productivity right out of the box. Take advantage of this special offer to secure a high-capacity, versatile Profile Bender for your facility at a discounted rate. Act now to elevate your fabrication capabilities with the brand-new PB 50-3 Profi Bender Special Edition.
£4,500.00 (£4,500.00 ex VAT)
Out of stock
- Description
- Additional Info
Technical specifications
- Shaft diameter [mm]: 50
- Roll diameter [mm]: 150
- Rotational speed of rollers [rpm]: 10
- Voltage [v/Hz]: 400/50
- Driving motor [kW]: 1.5
- Adjusting way [mm]: 120
- Flat Bar Hard Way [mm]: 20 x 6 to Ø300 / 60 x 10 to Ø500
- Flat Bar Easy Way [mm]: 50 x 10 to Ø300 / 100 x 15 to Ø400
- Square Solid Bar [mm]: 15 x 15 to Ø250 / 35 x 35 x Ø600
- Round Solid Bar [mm]: Ø10 to Ø250 / Ø35 to Ø500
- Tube [mm]: Ø30 x 15 to Ø600
- Pipe Nominal Bore [mm]: Ø70 x 1.5 to Ø1500
- Box Section [mm]: 20 x 20 x 2 to Ø250 / 50 x 50 x 3 to Ø1400
- Angle Leg Out [mm]: 25 x 25 x 4 to Ø350 / 50 x 50 x 6 to Ø500
- T-Section Leg In [mm]: 30 x 30 x 4 to Ø350 / 60 x 60 x 6 to Ø800
- T-Section Leg Out [mm]: 30 x 30 x 4 to Ø350 / 60 x 60 x 6 to Ø800
- UNP Section Leg Out [mm]: 30 x 15 x 4 to Ø300 / 80 x 45 x 6 to Ø600
- UNP Section Leg-In [mm]: 30 x 15 x 4 to Ø350 / 80 x 45 x 6 to Ø800
- Weight [kg]: 355
- Total length [mm]: 1100
- Total width [mm]: 800
- Total height [mm]: 1400
Features
- Manual adjustment of the upper roll with a hand wheel

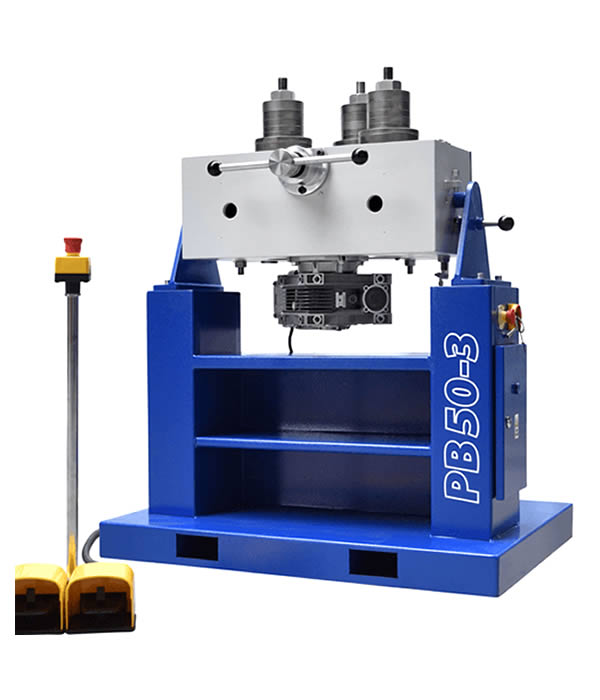

- Vertical and horizontal working position
- Three driven rolls
- Delivered with standard set of rollers
- Foot pedal
Optional accessories
- Special sets of rollers (steel or plastic)
- Spiral bending device
- Yoke
- Distance rollers
PROFILE BENDERS
Profile benders are used to roll out profiles of materials into rings, circles, or sections of a ring or circle and the industries that use profile bending machines are vast and many and some of the uses for ring rollers are to build handrail around buildings, to design metal art, unique components of roll cages for race cars of all types, safety rails and structures around industrial sites and machinery, pulpits on boats, street furniture such as benches and bollards, ships internal and external structures, bridge superstructures, airplane framework, automotive frames, boat and marine framework, and rail transport to name a few.
Ring Rollers come in a wide variety of sizes. From very small machines that are used to make rings for jewellery all the way up to machines that can bend pipes that are 2 metres in diameter with 50mm wall thickness and larger still.
All Profi Benders are manufactured in Europe and are CE Certified and with a 2-Year Warranty and are readily available from our stock.
