PBH-55-3-3 Profile Bender Hydraulic 3 Driven Rolls – 3-Phase

Product Code: PBH-55-3-3

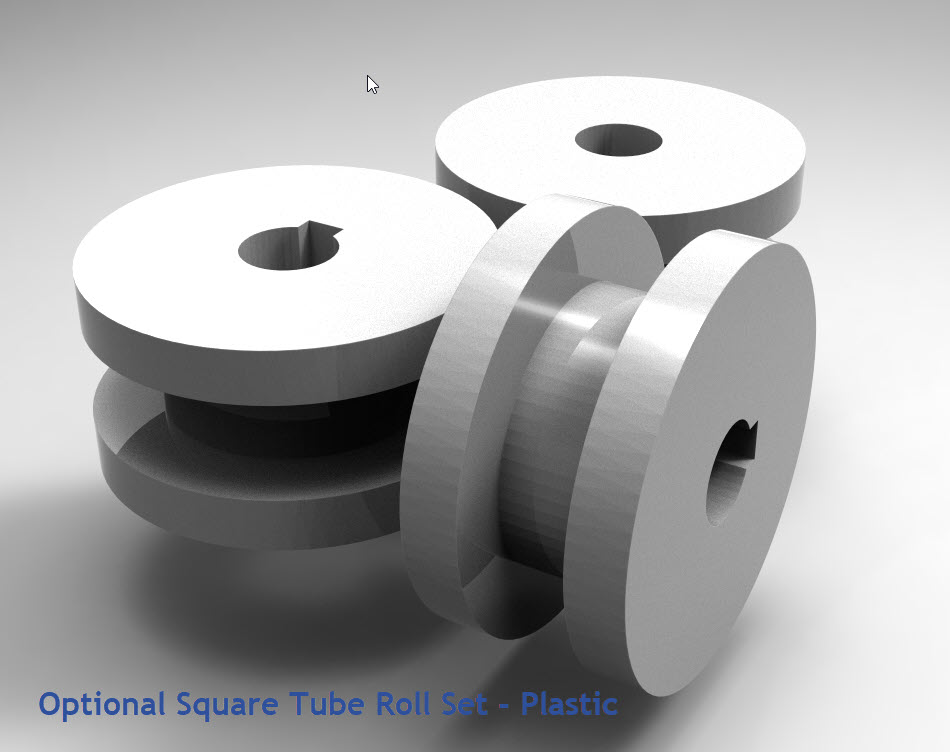

The PBH-55 Profile bender has 55 mm shafts 3 driven rolls driven either by a or a 3-Phase motor and comes with a standard set of section rolls that are configurable and are suitable for most bending applications of square or angular profiles. If you wish to bend round tubes or pipe, we have tools ready to go off the shelf for all common sizes such as 42.2 mm and 48.3 mm outside diameters along with many other sizes being readily available. If you are wanting to bend custom profiles all we need from you is either a drawing or a piece of the profile and we can quote your custom rolls.

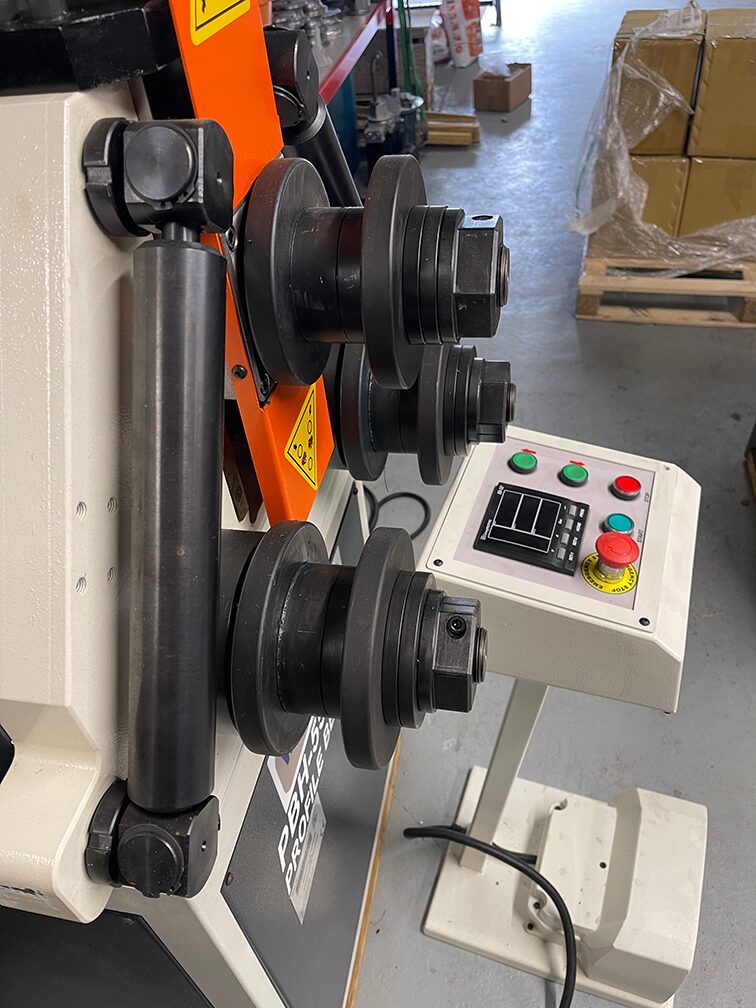

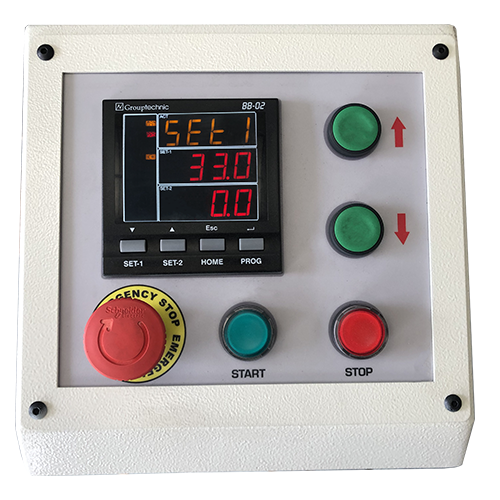

The top roll is a driven roll and its position is adjusted with a hydraulic cylinder. The top roll position is controlled by up and down buttons and its position is displayed on a DRO allowing for the top roll to be accurately positioned thus producing accurate bends.

One of the most common machines in a manufacturing or fabrication facility is a machine called a Profile Bender.  A Profile Bender does exactly what it says, it bends profiles. This type of machine also has many other names that descend directly from the overall versatility of this type of machine.  Some common other names include Roll Bender, Profile Roller, Angle Roller, Section Roll, Ring Roller, Ring Bender, Ring Roll Bender, Section Bending Machines, Section Bender,

    Specification Sheet Download Here
    PB 50-3H Profile Bending Machine
    PRODUCT ENQUIRY
    • Description
    • Additional Info

    Technical specifications

    • Item Number: PBH-55
    • Driven Rolls: 3
    • Roll Adjustment: Hydraulic
    • Flat Bar Hard Way [mm]: 70 X 12 to Ø1800
    • Flat Bar Easy Way [mm]: 70 X 20 to Ø1000
    • Square Solid Bar [mm]: 45 X 45 to Ø1000
    • Round Solid Bar [mm]: Ø45 to Ø1000
    • Tube [mm]: Ø70 X 3 to Ø3000
    • Pipe Nominal Bore [mm]: Ø76.1 X 3.2 to Ø2500
    • Rectangle Tube [mm]: 70 X 30 X 3
    • Box Section [mm]: 50 X 50 X 3
    • Angle Leg Out [mm]: 50 X 50 X 5 to Ø700
    • Angle Leg In [mm]: 50 X 50 X 5 to Ø700
    • T-Section Leg Out [mm]: 70 X 5 to Ø700
    • T-Section Leg In [mm]: 70 X 5 to Ø900
    • T-Section Leg Up [mm]: 70 X 5 to Ø900
    • UNP Section Leg Out [mm]: 80 to Ø1200
    • UNP Section Leg-In [mm]: 80 to Ø1200
    • Shaft Diameter: 55 mm
    • Shaft Useable Length: 119 mm
    • Motor: 7 hp
    • Power: 400V 3-Ph, 50 Hz
    • Shipping Weight: 538 kgs.
    • Specifcations: Based on Mild Steel
    • Shipping Dimensions: 1300 x 890 x 1550 mm



    PROFILE BENDERS

    Profile benders are used to roll out profiles of materials into rings, circles, or sections of a ring or circle and the industries that use profile bending machines are vast and many and some of the uses for ring rollers are to build handrail around buildings, to design metal art, unique components of roll cages for race cars of all types, safety rails and structures around industrial sites and machinery, pulpits on boats, street furniture such as benches and bollards, ships internal and external structures, bridge superstructures, airplane framework, automotive frames, boat and marine framework, and rail transport to name a few.

    Ring Rollers come in a wide variety of sizes. From very small machines that are used to make rings for jewellery all the way up to machines that can bend pipes that are 2 metres in diameter with 50mm wall thickness and larger still.

    All Profi Benders are manufactured in Europe and are CE Certified and with a 2-Year Warranty and are readily available from our stock.
