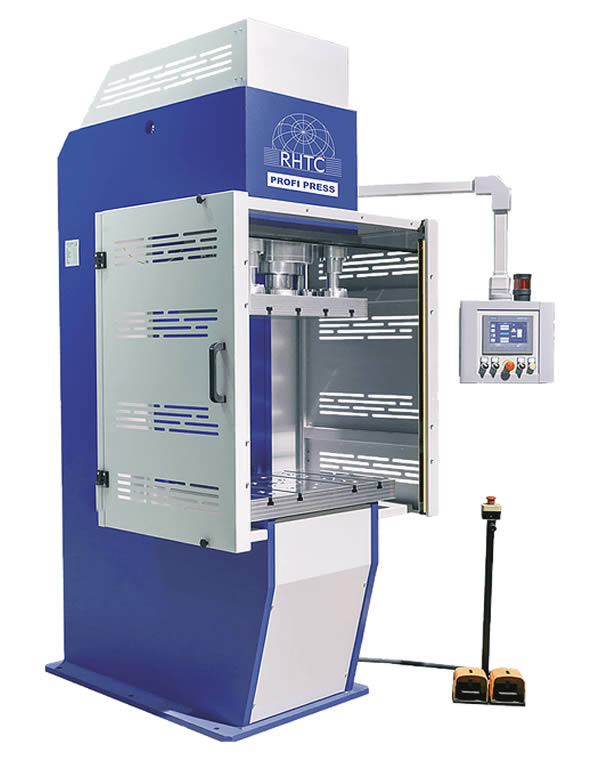

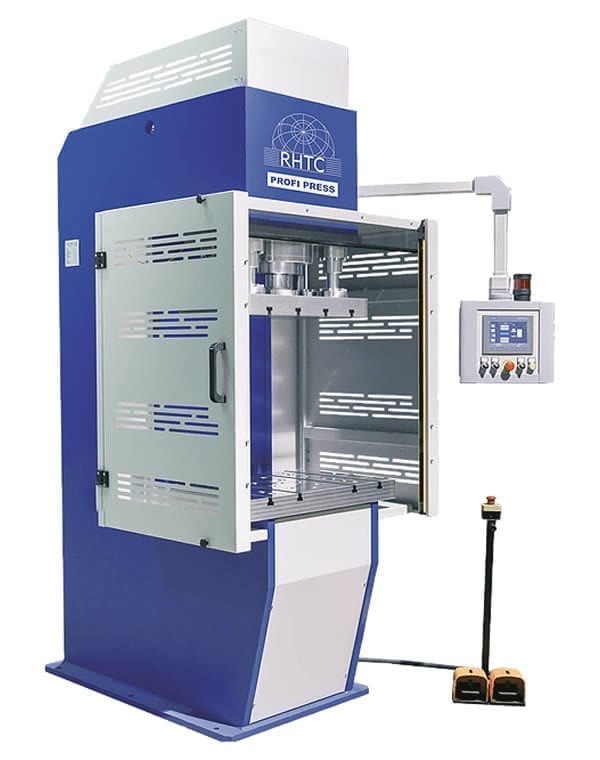

C-Frame Press • PPCF-100 • 100 Ton Advanced • Upper Table • Lower Table • Siemens NC Control • Foot Pedals

Product Code: 10136-PPCF-100

The PPCF-100 designed by RHTC Profi Press is a 100-ton high-speed C-frame press that can carry out pressing processes such as deep-drawing, stamping and forming and is designed to produce medium and high volumes.  The PPCF-80 is suitably designed to allow for it to be incorporated in production systems and automated production lines. It has a throat depth of 375 mm and a working speed of 8 mm/s which is preluded by and a maximum approach speed of 108 mm/s.  After the cycle is completed the top plate returns at a maximum rate of 155 mm/s.  The maximum stroke of the top plate is 450 mm with the press having an overall maximum daylight of 650 mm.

The PPCM C-Frame presses are designed with both an upper table (slide) with dimensions of 700 x 450 mm and a lower table (bolster) with dimensions of 850 x 600 mm incorporating DIN-650 T-grooves which is useful for attaching dies, jigs, fixtures, and tools. Perfect alignment of the upper slide is maintained and ensured by the use of two 50 mm diameter cylindrical guides.  The bottom table has a working height of 900 mm.

The top-quality hydraulic system comes standard with an integrated cooling system. The machine comes standard fitted with side guards that have Level IV light curtains installed.  The whole press system is controlled with a Siemens PLC touch-screen that allows for controlling such items as system power, the cylinder stroke, cylinder speed, and pressure-time and the controller can store up to 300 different working cycles.

All RHTC presses are manufactured in Europe and according to the most recent CE Directives and come delivered with a 2-Year Warranty and a CE Certificate.

All Profi Presses by RHTC are customisable, integrative, and have custom tools available.

Please contact for prices

    • Description
    • Additional Info

    Technical specifications

    • Force [tn]: 100
    • Motor power [kw]: 7.5
    • Throat depth [mm]: 375
    • Working speed [mm/sec]: 8
    • Approaching speed [mm/sec]: 108
    • Return speed [mm/sec]: 155
    • Maximum pressure [bar]: 290
    • Piston stroke [mm]: 450
    • Guides diameter [mm]: 50
    • Lower table (bolster) size [mm]: 850 x 600
    • Upper table (slide) size [mm]: 700 x 450
    • Slide Table Parallelism: +/- 0.2 mm over 0.5 metres
    • Daylight Max. [mm]: 650
    • Working height [mm]: 900
    • Total length [mm]: 2340
    • Total width (frontal) [mm]: 1240
    • Total height [mm]: 2630
    • Weight [kg]: 3900

    Features

    • Equipped with an upper- and lower table with T-grooves (DIN-650); tools can be easily fastened onto the tables
    • Perfect alignment thanks to four lateral guides for the upper table
    • One main cylinder and two lateral cylinders for high speeds
    • Two lateral protection screens (which can be opened) with level IV safety light guards at the front
    • Siemens PLC control panel to program the power, cylinder stroke & pressure time, to select the work mode & cylinder speeds and with a capacity to save up to 300 working cycles.
    • Operation by means of a foot pedal

    Optional accessories

    • Configuration adapted to your requirements
    • Hydraulic ejector
    • Hydraulic cushion
    • Hydraulic connections to peripheral systems
    • Larger tables
    • Larger Daylight
    • Deeper throat depth
    • Longer piston stroke
    • Faster approach, working, and return speeds
    • Custom Controls such as PLC Siemens mod. SIMATIC S7 1200 with 7” touch screen
    • Cooling equipment for the hydraulic system
    • Custom tools, dies, jigs, and fixtures
    • Complete system integration
    • Adaptations to robotics

    C-Frame Hydraulic Presses PPCF Chart

    Suitable for various materials

    C-Frame Presses are useful in every factory or workshop and are not only useful for mild steel but a variety of other materials also such as copper, brass, stainless steel, and carbide.  C-Frame presses are used for punching, pressing, coining, straightening, forming, bending and, drawing and are useful in every industry.  The RHTC C Frame presses come equipped with standard tools, but custom tools are also available from WorkshopPress.co.uk and we can use our in-house 3D manufacturing capabilities to assist in the design of custom press tools to suit your application.
    All of the RHTC Profi Press C-frame presses are manufactured in Europe according to the latest CE standards and are supplied directly from our warehouse with a CE certificate.  All components and materials are of the best possible quality which lends to the machines hefty weight of 1750 kg.

    CE Certificate

    This press comes with a standard 2-Year Warranty and a CE Certificate as standard.

    All Profi Presses by RHTC are customisable, integrative, and have custom tools available.
    Please contact Workshoppress today with any questions by telephone at +44 (0) 800 999 1090, or by email at info@workshoppress.co.uk.
