Four Column Press • 100 Ton • Table Size 950 x 1050 mm • Vertical Daylight 650 mm • Between Columns 650 x 1050 mm • Guide Columns 100 mm Diameter

Product Code: 10160-PPMV-100

Introducing the RHTC 100-ton Four Column Profi Press for the Metal Pressings Industry.

Discover the cutting-edge features of the RHTC 100-ton Four Column Profi Press, designed specifically for industrial engineers in the metal pressings industry. This advanced press offers superior performance and versatility to enhance your production processes.

With four 100 mm chrome-plated columns, the RHTC Profi Press ensures precise parallel alignment of the top plate at all times. This feature guarantees optimal accuracy and improved efficiency for your metal pressings.

Equipped with a 2-speed hydraulic unit and an automatic high-speed disconnection system, the PPMV-100 Four Column Press delivers exceptional performance. This 100-ton press offers manual, semi-auto, and automatic operation modes, controlled effortlessly with a low-voltage foot pedal. The machine includes a pressure switch and a manometer that reads in tons, providing accurate measurements during operation. Moreover, the RHTC Profi Press operates at a maximum pressure of 320 bar or lower, ensuring long-lasting durability and reliability.

The RHTC Profi Press boasts a practical table size of 1050 x 950 mm, along with a generous distance of 1050 x 650 mm between columns. The slide and bolster feature industry-standard T-Grooves, allowing seamless attachment of die systems, tools, jigs, fixtures, and other production apparatus. This versatility enables you to optimize your workflow and streamline your metal pressings operations.

Efficiency is further enhanced with the adjustable stroke of the main piston, controlled by end-switches. The piston extends up to a maximum of 450 mm and initiates the pressing process with a maximum approach speed of 31 mm/s, gradually reducing to a working speed of 6.2 mm/s. After completion of the cycle, the cylinder returns to the home position swiftly at a rate of 48 mm/s.

The RHTC Profi Press offers a generous vertical daylight of 650 mm for easy work access, complemented by a bottom working table height of 800 mm. This ergonomic design ensures a comfortable and efficient working environment.

This RHTC press is manufactured in Europe, adhering to the latest CE Directives. Each machine comes with a 2-year warranty and a CE Certificate, providing peace of mind and reliability for your operations. Additionally, all presses are customizable to suit your specific requirements.

Choose the RHTC 100-ton Four Column Profi Press and experience unparalleled performance and durability in the metal pressings industry. Optimize your production processes and elevate your business to new heights. Contact us today to discuss your unique needs and explore the possibilities with our advanced industrial engineering solutions.

Please contact for prices

    • Description
    • Additional Info

    Technical specifications

    • Force [tn]: 100
    • Motor power [kw]: 7.5
    • Working speed [mm/sec]: 6.2
    • Approaching speed [mm/sec]: 31
    • Return speed [mm/sec]: 48
    • Piston stroke [mm]: 450
    • Guides diameter [mm]: 100
    • Table size [mm]: 1050 x 950
    • Between columns [mm]: 1050 x 650
    • Slide Table Parallelism: +/- 0.2 mm over 1 metre
    • Daylight Max. [mm]: 650
    • Working height [mm]: 800
    • Total length (lateral) [mm]: 1430
    • Total width (frontal) [mm]: 1880
    • Total height [mm]: 2780
    • Weight [mm]: 4300


    • Rigid and robust machine frame
    • Upper- and lower table with T-grooves
    • Four chromed and rectified cylinder columns for a perfect parallelism
    • Adjustable piston stroke with end-stroke switches
    • Selector for manual / semi-automatic / automatic mode
    • Selector for working with 1 or 2 speeds
    • Pressure switch and manometer

    Optional accessories

    • Proportional valves of pressure and flow
    • PLC SIEMENS mod. SIMATIC S7 1200 with 7” touch screen mod. KTP-700
    • A frontal sliding lower table
    • Adaptations to robotics
    • Hydraulic connections for peripheral systems
    • High speed approach by prefilling valves and lateral cylinders
    • Hydraulic cushion
    • Hydraulic ejector placed in the upper- or lower table or in both tables
    • Cooling equipment for the hydraulic group by an air-oil cooling system

    Four Column Presses Chart

    Profi Press Four Column Hydraulic Presses

    Designed to carry out deep-drawing, die-cutting, metal forming, stamping and pressing processes to an extremely high degree of accuracy. The Four Column Hydraulic Press category offers a variety of tonnages, table sizes, and distances between columns.

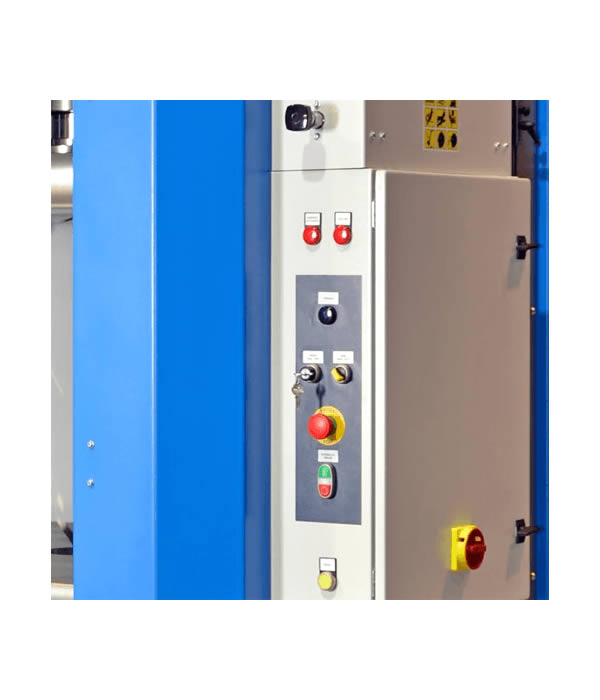

    The four post hydraulic presses have four cylindrical chromed columns with lateral rails ensuring perfect alignment of the upper slide table. The stroke of the primary cylinder is controlled from the side control panel.

    The main hydraulic unit is a two-speed unit with a selector for the two different cylinder speeds, fast approach speed, and slow working speed. The four post hydraulic presses also feature a selector for the manual, semi-automatic or automatic operation./h3>

    CE Certificate

    This press comes with a standard 2-Year Warranty and a CE Certificate as standard.

    All Profi Presses by RHTC are customisable, integrative, and have custom tools available.
