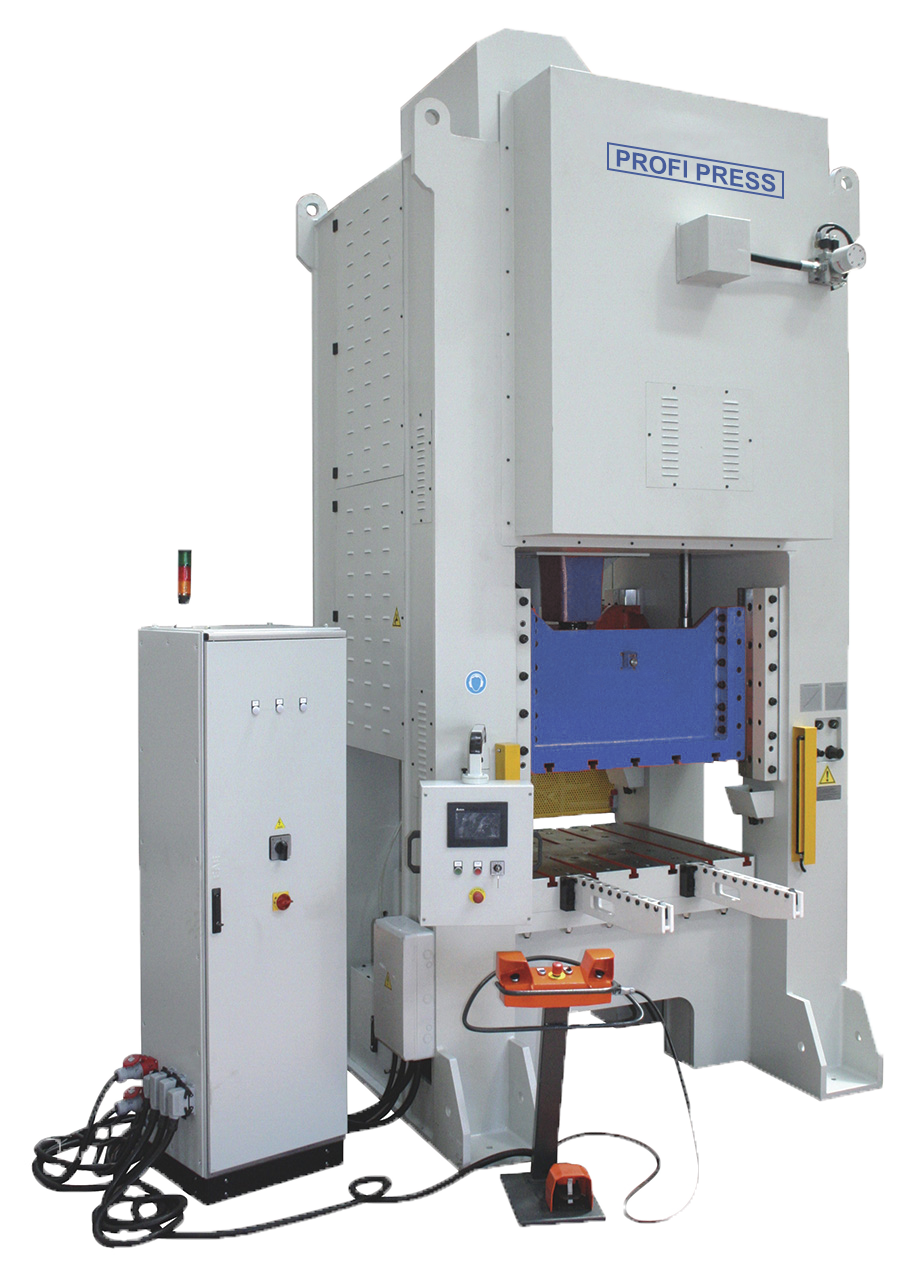

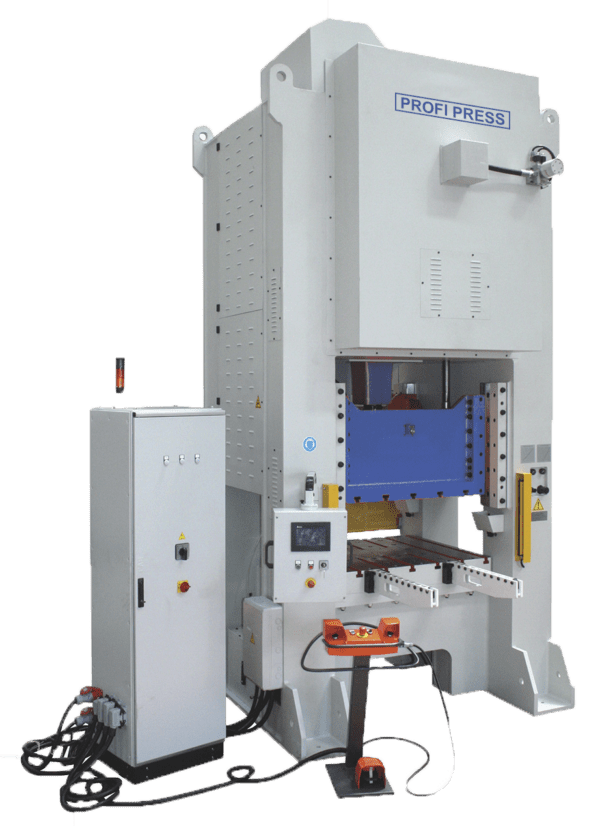

Double Column Mechanical Press • 400 Ton • Single Connecting Rod • 6 Ram Guides

Product Code: PPMVS-400

The PPMVS-400 400 Ton Mechanical Double Column Eccentric press is designed for deep-drawing, blanking, forming, shearing, cutting, punching and stamping. Mechanical Eccentric Presses are used in many different industries: the automotive, railway and aerospace industries to name a few.
The structural framework of the Double Column Press is made of S355JR steel and has one connecting rod along with 6 guided rams. The main connecting rod is made out of high-tensile strength steel forged for durability and is supported by industrial alloy bushings. The Double Column Series Mechanical Profi Press has an integrated and centralized motorized lubrication system, with overload protection and an electro-pneumatic clutch brake.
The displayed presses are our standard offering, but any press can be modified to suit the customer’s requirements, so please enquire.
The PPMVS-400 by RHTC Profi Press is manufactured in EU according to CE directives and delivered directly from our warehouse with CE Certification.

Please contact for prices

    Download Specification Sheet
    • Description
    • Additional Info
    Technical specifications
    • Pressure force [tn]: 400
    • Motor power [kw]: 30
    • Strokes per minute [spm]: 30
    • Cylinder stroke [mm]: 20 – 200
    • Max. closed mould height [mm]: 500
    • Distance between table and ram [mm]: 700
    • Ram adjustment [mm]: 0-140
    • Table size [mm]: 1100 x 1300
    • Ram size [mm]: 1100 x 1300
    • Table height [mm]: 1100
    • Total length [mm]: 2200
    • Total width (frontal) [mm]: 2850
    • Overall height [mm]: 5200
    Features of this 400 tons mechanical press
    • The prismatic and sliding guides offer maximum rigidity
    • Central motorized lubrication system to guarantee a perfect performance and maintenance
    • Hydraulic overload protection to protect the machine components and installed tools
    • Effective balance of the slide and dies by means of two pneumatic cylinders
    • Electro-pneumatic clutch and brake combination equipped with a dual safety solenoid valve. Including compensation tank, regulator-lubrication filter & pressure control switch
    • Complex system of eccentric gears with opposite rotation, allowing a double reduction in speed & long strokes
    • Level IV safety light guards
    • Programmable control system (PLC)
    • Automatic ram adjustment including digital ruler
    • Mechanical rotary cam limit switch (4 array) & magnetic cam limit switch
    • Anti-vibration pads
    • Operation by means of a two-hands push-button control as well as a foot pedal
    Optional accessories
    • Inverter (speed variation)
    • Pneumatic or hydraulic die ejector or cushion
    • Lower auxiliary table
    • Strain gauge system
    • NC digital display with memories to save various working cycles

    Double Column Presses Chart

    The Profi Press mechanical presses: suitable for performing stamping, cutting and deep-drawing work.

    We produce these mechanical presses in Europe. Equipped with only high quality components and made out of S355JR steel. You can use these high-performance presses for a wide variety of applications in many different industries. Suitable for cost-effective production in the automotive, aerospace and railway industries and many other branches that use metal forming.

    CE Certificate

    This press comes with a standard 2-Year Warranty and a CE Certificate as standard.

    All Profi Presses by RHTC are customisable, integrative, and have custom tools available.
