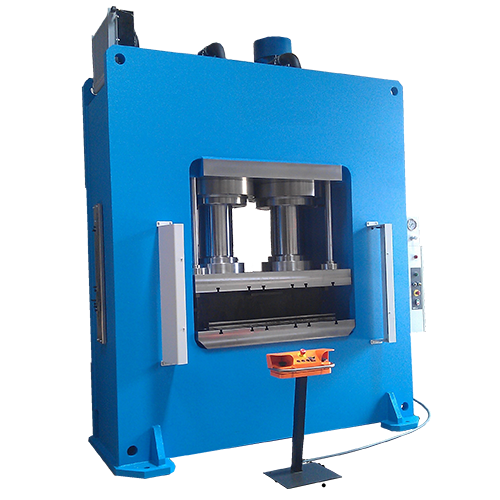

500 Ton Production Press • Bolster Table size of 850 x 1000 mm • Vertical Daylight 700 mm • Frontal Daylight 1150 mm • Guide Columns 80 mm diameter

Product Code: 10525

The RHTC Profi Press also offers high-quality hydraulic production presses like the PPRM-500. This heavy-duty production 500-ton production press is suitable for stamping, die-cutting, deep-drawing and forming. The frame of this press is made from S355JR steel and is electro-welded to assure a solid press framework that will last a lifetime which is demonstrated by the presses massive weight of 12150 Kg. This machine comes with 2 speeds and an integrated pressure manometer.

The machine has a slide with dimensions of 1000 x 800 mm and bolster with dimensions of 1000 x 850 mm plate both with industry-standard T-Grooves suitable for attaching die systems and various tools, dies, jigs, fixtures, and other production apparatus. The main piston has an adjustable stroke controlled with end-switches which extends to a maximum of 500 mm and starts its pressing process with a maximum approach speed of 10 mm/s slowing down into a working speed of 2.4 mm/s. Once the cycle is complete the cylinder returns to the home position at a rate of 17 mm/s. The top plate is sure to stay parallel to the bottom plate due to the use of 4 additional 80 mm support guides.

The working opening has generous dimensions with a vertical daylight height of 700 mm, and then opening has an overall dimension from left to right of 1150 mm which is then complemented by a bottom working table height of 1000 mm.

All RHTC Profi Presses are made in Europe according to the latest CE Directives and Standards and delivered with a CE Certificate. This press comes with a standard 2-year warranty.

Please contact for prices

    • Description
    • Additional Info

    Technical specifications

    • Pressure force [tn]: 500
    • Motor power [kW]: 15
    • Working speed [mm/sec]: 2.4
    • Approaching speed [mm/sec]: 10
    • Returning speed [mm/sec]: 17
    • Piston stroke [mm]: 500
    • Daylight Max. [mm]: 700
    • Frontal daylight [mm]: 1150
    • Lower table (bolster) size [mm]: 1000 x 850
    • Upper table (slide) size [mm]: 1000 x 800
    • Guides diameter [mm]: 80
    • Working height [mm]: 1000
    • Total length (lateral) [mm]: 1470
    • Total width (frontal) [mm]: 2585
    • Total height [mm]: 3610
    • Weight [kg]: 12150


    • Rigid and robust machine frame
    • Upper- and lower table with T-grooves
    • Four cylindrical lateral guides for a perfect alignment of the upper table
    • Adjustable piston stroke with end-stroke switches
    • Selector for manual / semi-automatic / automatic operation
    • Selector for working with 1 or 2 speeds
    • Pressure switch and manometer

    Optional accessories

    • PLC SIEMENS mod. SIMATIC S7 1200 with 7” touch screen mod. KTP-700
    • High speed approach by prefilling valves and lateral cylinders
    • Hydraulic cushion
    • Hydraulic ejector placed in the upper- or lower table or in both tables
    • Cooling equipment for the hydraulic group by an air-oil cooling system

    Easily Integrated into Production Systems

    Due to its overall outstanding build quality and quality design, this hydraulic press can be easily be integrated into various production systems and system automated production lines as well.

    Whis is a Hydraulic Production Press?

    A Hydraulic Production Press is a machine press using a hydraulic cylinder to generate a compressive force and are commonly used for forging, clinching, moulding, blanking, punching, deep drawing, and metal forming operations. The hydraulic press is advantageous in manufacturing, it gives the ability to create more intricate shapes and can be economical with materials. Hydraulics Production Presses provide smooth, even pressure throughout the ram stroke with pressure controllability providing consistent pressure tonnage. The consistent pressing force provided by hydraulic production presses deforms materials bending and stretching the chosen material to match the size and shape of the press die. Hydraulic Presses form the same product repeatedly and are widely used around the world in the automotive industry as well as a wide variety of other industries such as appliances, computer components, kitchen items, titanium eyeglass frames, wristwatch cases, stainless steel cooking pots, knives, spoons, doorknobs, coins , electronic components, hard disk drive casings, electronic equipment components, and lithium-ion battery cases for cell-phones.

    What are Hydraulic Production Presses Used For?

    Hydraulic presses are commonly used for forging, clinching, moulding, blanking, punching, deep drawing, and metal forming operations. Hydraulic Production Presses give the ability to create intricate shapes and products of different sizes can be formed using presses, ranging from simple very simple shapes completed with a single pressing process to more sophisticated products requiring multiple progressive pressing processes. Hydraulic Production Presses offer flexibility in terms of product design and enable manufacturers to produce an extensive and diverse range of products while providing close to micron-level accuracy.
