100 Ton Portal Press • Manual • Table size of 996 x 1740 mm • 2 Speeds • Vertical Daylight 700 mm

Product Code: 20058-PPTL-100

RHTC Profi Presses include an offering of Portal Presses with a cylinder that is controlled with a joystick and can be operated either in a manual or motorised mode.  The PPTL-100 is a 100-ton (981 kN) machine with a cylinder advance speed of 7.54 mm/s, a working speed of 2.47 mm/s and return speed of 9.1 mm/s.  This Portal Press has a piston stroke of 380 mm and a distance between the cylinder head and the bed of 700 mm.  The worktable dimensions are 1740 x 996 mm and has a working height of the table is 720 mm with the overall working width being 1100 mm.  The PPTL-100 weighs 1650 Kg.

The PPTL-100 Portal Press has a manually movable cylinder head and bridge which enables pressing operations to occur all locations of the working table.  The portal apparatus can be moved out of the way to enable the operator to easily place heavy objects onto the working surface.

The PPTL-100 is designed and manufactured by RHTC and is manufactured using the most recent and current CE regulations and directives and is delivered directly from the warehouse stock with a 2-year warranty and a CE certificate.

    Specification Sheet Download Here

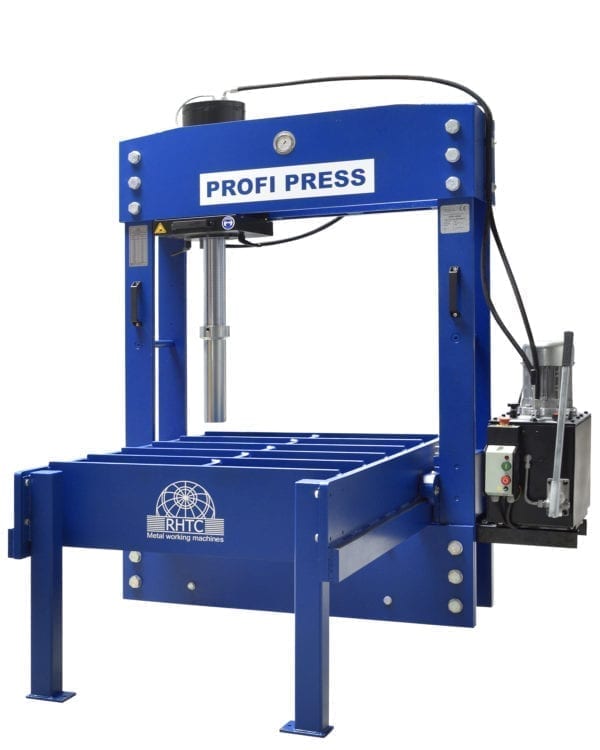

    Portal Press front view with movable frame
    • Description
    • Additional Info

    Technical specifications

    • Pressure force [kN]: 981
    • Pressure max. [bar]: 258
    • Cylinder stroke (with cylinder extension) [mm]: 380
    • Press speed [mm/sec]: 47
    • Cylinder lowering speed [mm/sec]: 54
    • Return speed [mm/sec]: 9.06
    • Motor [kW]: 2
    • Voltage [V]: 400V, 50 Hz, 3-Phase
    • Speeds (incl. pressure regulation) 2

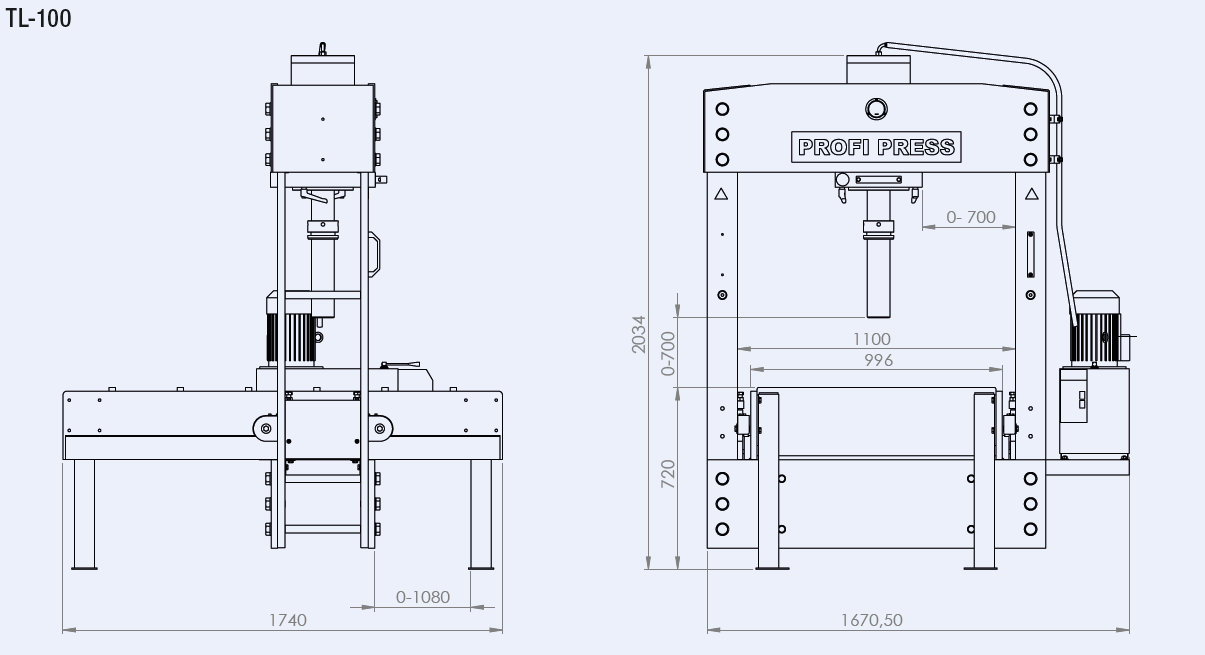

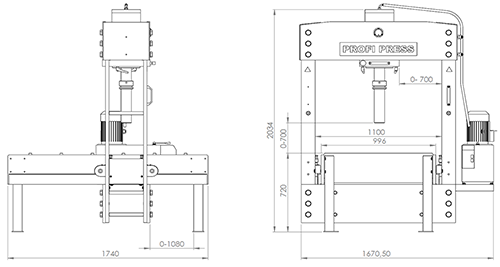

    • Table size (L x W) [mm]: 1740 x 996
    • Working width [mm]: 1100
    • Vertical light [mm]: 700
    • Working height [mm]: 720
    • Total height [mm]: 2034
    • Total length [mm]: 1740
    • Total width [mm]: 1670
    • Weight [kg]: 1650


    • Equipped with a lower table with T-grooves
    • The cylinder is mechanized at the end to adapt tools and moulds
    • The cylinder stroke is easy to adjust with the end-stroke switches
    • Manual / semi-automatic work mode
    • Two cylinder speeds
    • Pressure switch and manometer
    • Operation by two-hands push buttons
    • 2 year warranty

    Optional accessories

    • 1 Phase Motor
    • 60 Hz Motor
    • Geometry adapted to your requirements (for example a larger table, larger vertical light or larger piston stroke)
    • Higher speeds with a different pump
    • Hydraulic ejector
    • Punching tool-set for diameters from 6 up to 100 mm with anti-deformation elastic hold-down
    • 415 mm folding tool-set (Promecam clamping system)
    • Cooling equipment for the hydraulic group by an air-oil cooling system
    • Mechanical regulation of the cylinder, only available for the PPCD-80 and PPCD-100


    Portal Presses

    All materials and components used to build this press are of the best quality and the machine comes with a pressure manometer, 2 speeds controlled with a hand lever, joystick operation, and hand pump operation.
