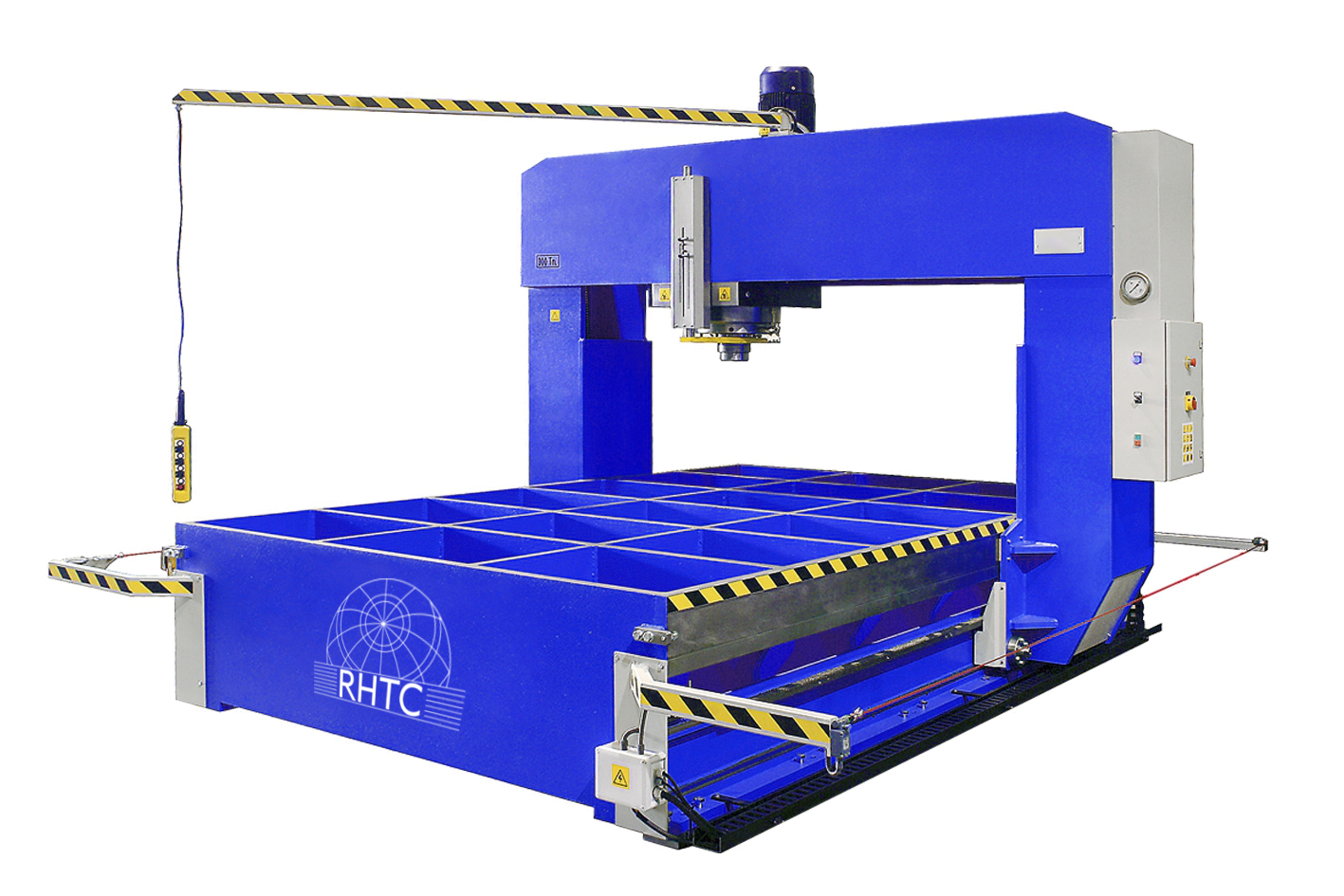

220 Ton Portal Press • Motorised • Table size of 1565 x 3000 mm • Horizontal Daylight 1565 mm • Vertical Daylight 700 mm

Product Code: TWPCO-RFP-220

The TWPCO-RFP-220 Motorised Portal Press from The Workshop Press Company UK offers robust hydraulic press capabilities with a 220-ton capacity. Designed for heavy-duty applications, this press features an integrated motor and hand control for easy maneuverability, ensuring precise alignment and consistent results, enhancing productivity and safety in your operations.

Please contact for prices

    • Description
    • Additional Info

    The TWPCO-RFP-220 Motorised Portal Press from The Workshop Press Company UK provides advanced hydraulic press technology for industries requiring significant force application, such as railway, shipbuilding, and aerospace. This 220-ton press features a motorized roll frame design, allowing easy positioning of the H-Frame Press Gantry for seamless loading and unloading of large or heavy workpieces. Equipped with a double-acting cylinder for fast retraction, a versatile piston end, and a two-speed hydraulic pump for optimal control, this model ensures operational safety with integrated pressure gauges.

    Technical specifications

    • Force [tn]: 220
    • Motor power [kw]: 5.5
    • Working speed [mm/sec]: 2.2
    • Approaching speed [mm/sec]: 9
    • Return speed [mm/sec]: 16.2
    • Maximum pressure [bar]: 320
    • Piston stroke [mm]: 450
    • Table size (L x W) [mm]: 3500 x 2045
    • Horizontal light [mm]: 2060
    • Vertical light [mm]: 700
    • Headstock displacement [mm]: 1550
    • Frame displacement [mm]: 2500
    • Working height [mm]: 700
    • Total length [mm]: 3760
    • Total width [mm]: 3200
    • Total height [mm]: 2990
    • Weight [kg]: 9400

    Industries Using the Machine:

    • Railway Industry: Maintenance, fabrication, production, testing
    • Shipbuilding Industry: Structural fabrication, repair, component testing
    • Aerospace Industry: Component forming, maintenance, stress testing
    • Manufacturing: General fabrication, assembly, material testing

    Features and Uses:

    • Motorized gantry for easy positioning
    • Consistent alignment with pressing cylinder
    • Enhanced productivity with reduced loading/unloading time
    • Improved safety with easier handling of heavy workpieces
    • Low maintenance with double-acting cylinder design
    • Versatile applications across various industries

    Benefits of Motorised Portal Presses

    • Motorised roll frame hydraulic presses for heavy-duty applications
    • Easy-to-position motorized gantry for precise alignment
    • High-capacity presses: 150 Ton, 220 Ton, 300 Ton models available
    • Double-acting cylinders for fast retraction and efficiency
    • Integrated pressure gauges for enhanced safety and control
    • Two-speed hydraulic pump for flexible operation
    • Two-speed hydraulic pump for flexible operation
    • Ideal for railway, shipbuilding, aerospace, and manufacturing industries
    • Robust construction for reliable and long-term use

    Optional accessories

    • Milling lower flat table (3000 x 1550 x 75 mm)
    • Small cylinders fitted in the lower table to lift pieces (each 2 ton power), connected to a second hydraulic group
    • Additional extension for the cylinder
    • Larger tables

    Benefits of Motorised Portal Presses (cont.)

    • Low maintenance design with minimal downtime
    • Versatile press suitable for various fabrication and production tasks
    • Improved productivity with reduced loading and unloading time
    • Safe handling of large and heavy workpieces
    • Advanced hydraulic press technology from The Workshop Press Company UK
    • Extra-wide bed size for accommodating large workpieces
    • Integrated motor and hand control for ease of use
    • Suitable for maintenance, fabrication, production, and testing operations

    Dimensions

    Daylight – Frontal [mm] – A: 2620
    Daylight – Lateral [mm] – B: 700
    Headstock movement [mm] – C: 1960
    Bridge movement [mm] – D: 2940
    Working height [mm] – E: 750
    Total front [mm] – G: 3660
    Total lateral [mm] – H: 4280
    Total height [mm] – I: 3120
    Piston stroke [mm] – J: 4

    High-capacity Motorised Portal Press (220 Ton) with integrated motorized gantry for easy loading and precise pressing.
