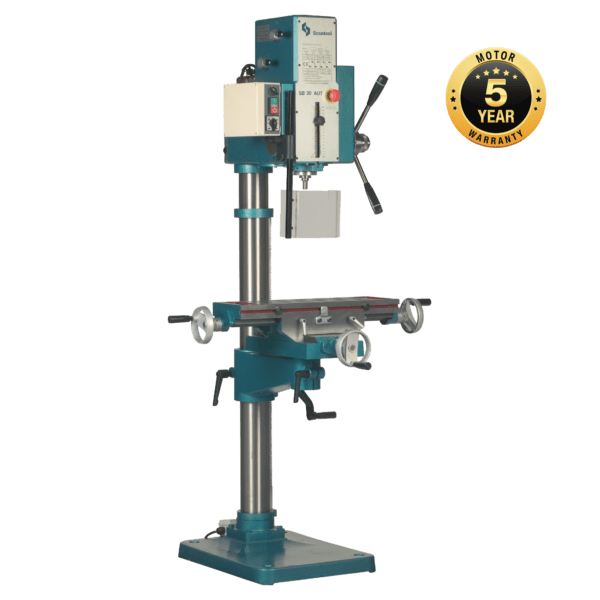

SB 30K Pillar Drill Gear Driven from Scantool

Product Code: 130601001

SCANTOOL offers a wide variety of top-quality European Gear Driven Pillar Drills models that have drilling capacities ranging from 1 mm to 40 mm. The extensive range of drill presses have a simple construction ensuring high quality, ease of operation, and a long life. These industrial drills are designed for industrial use and in addition use top quality components only to guarantee a useful long life. The Scantool Pillar Drills from are competitively priced and designed to last. These models have a 5 Year Motor Guaranty, are CE certified, and come with a separate emergency stop. This model is the same as the standard SB30 but comes with a narrow and adjustable table.

    Specification Sheet Download Here
    SB30 Gear Driven Pillar Drill from
    • Description
    • Additional Info

    Technical specifications

    • Drive Mechanism: Gear Head
    • Automatic Feed: No
    • Max. drilling capacity: 32 mm
    • Max. spindle travel: 150 mm
    • Tapping Capacity: M16
    • Drill chuck: MT3
    • Column Diameter: 102 mm
    • Size of table: 190 x 600 mm
    • Table to Spindle Distance: 915 mm
    • Base to Spindle Distance: 285 mm
    • RPM: 75 to 3140
    • Number of Speeds – Spindle: 8
    • Number of Speeds – Motor: 2
    • Motor: 1.5 Hp
    • Power Requirement: 400V, 50Hz, 3-Phase
    • Height: 1730 mm
    • Weight: 260 Kg
